DocBlock

Create text that documents model and save text with model

•

Libraries:
Simulink / Model-Wide Utilities
HDL Coder / Model-Wide Utilities

Description

The DocBlock allows you to create and edit text that documents a model, and save that text with the model. Double-clicking an instance of the block creates a temporary file containing the text associated with this block and opens the file in an editor. Use the editor to modify the text and save the file. Simulink^® software stores the contents of the saved file in the model file.

The DocBlock supports HTML, Rich Text Format (RTF), and ASCII text document types. The default editors for these different document types are

• HTML — Microsoft^® Word (if available). Otherwise, the DocBlock opens HTML documents using the editor specified on the Editor/Debugger Preferences pane of the Preferences dialog box.

• RTF — Microsoft Word (if available). Otherwise, the DocBlock opens RTF documents using the editor specified on the Editor/Debugger Preferences pane of the Preferences dialog box.

• Text — The DocBlock opens text documents using the editor specified on the Editor/Debugger Preferences pane of the Preferences dialog box.

Use the docblock command to change the default editors.

Tip

To edit the block parameters of the DocBlock, right-click the block icon and select Mask > Mask Parameters....

Examples

Capture Measurement Descriptions in a DocBlock

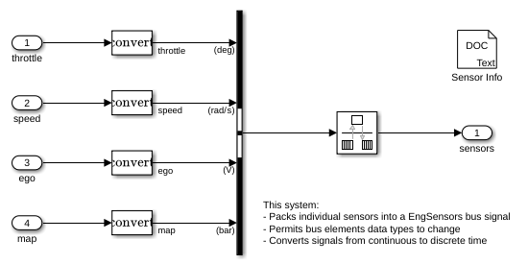

This example shows how to use a DocBlock to capture information about a model. In the sldemo_fuelsys model, a DocBlock labeled Sensor Info is used to document measurement descriptions inside of the To Controller subsystem.

Parameters

Code generation template symbol — Template symbol for generated code

'' | Abstract | Description | History | Modified History | Notes

Enter a template symbol name in this field. Embedded Coder^® software uses this symbol to add comments to the code generated from the model. For more information, see Add Global Comments in the Generated Code (Embedded Coder).

Dependencies

For comments to appear in the generated code, you must also set the Document type to Text.

Programmatic Use

Block Parameter: ECoderFlag

Type: character vector

Values: 'Abstract' | 'Description' | 'History' | 'Modified History' | 'Notes'

Default: ''

Document type — Type of document

Text (default) | RTF | HTML

Select the type of document associated with the DocBlock. The options are:

• Text

• RTF

• HTML

Dependencies

If you are using a DocBlock to add comments to your code during code generation, ensure that you set the Document Type as Text. If you set the Document Type as RTF or HTML, your comments will not appear in the code.

Programmatic Use

Block Parameter: DocumentType

Type: character vector

Values: 'Text' | 'RTF' | 'HTML'

Default: 'Text'

Block Characteristics

Data Types
Direct Feedthrough	no
Multidimensional Signals	no
Variable-Size Signals	no
Zero-Crossing Detection	no

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

Uses the template symbol you specify for the Embedded Coder Flag block parameter to add comments to generated code. Requires an Embedded Coder license. For more information, see Use a Simulink DocBlock to Add a Comment (Embedded Coder).

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic. See also Generate HDL Code with Annotations or Comments (HDL Coder) and Integrate Custom HDL Code by Using DocBlock (HDL Coder).

HDL Architecture

Architecture	Description
Annotation (default)	Insert text as comment in the generated code.
HDLText	Integrate text as custom HDL code.
No HDL	Do not generate HDL code for this block.

HDL Block Properties

ConstrainedOutputPipeline	Number of registers to place at the outputs by moving existing delays within your design. Distributed pipelining does not redistribute these registers. The default is 0. For more details, see ConstrainedOutputPipeline (HDL Coder).
InputPipeline	Number of input pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see InputPipeline (HDL Coder).
OutputPipeline	Number of output pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see OutputPipeline (HDL Coder).
TargetLanguage	Language of the text, either Verilog® or VHDL®. The default is VHDL. When Architecture is HDLText, this property is available. To learn more, see Integrate Custom HDL Code by Using DocBlock (HDL Coder).
PreserveUpstreamLogic	Control the removal of unconnected logic. The default is off, which means unconnected logic is not preserved in HDL code. For more details, see PreserveUpstreamLogic (HDL Coder).

Restrictions

• Document type must be Text.

  HDL Coder does not support the HTML or RTF options.

• You can have a maximum of two DocBlock blocks with Architecture set to HDLText in the same subsystem.

  If you have two DocBlock blocks, one must have TargetLanguage set to VHDL, and the other must have TargetLanguage set to Verilog. When generating code, HDL Coder only integrates the custom code from the DocBlock that matches the target language for code generation.

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Version History

Introduced before R2006a
