Permute Matrix
Reorder matrix rows or columns
Libraries:
Simulink /
Matrix Operations
Description
The Permute Matrix block reorders the rows or columns of an
M-by-N input matrix A
as
specified by indexing input P
.

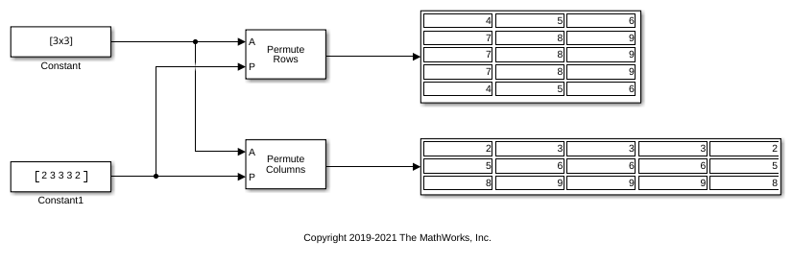

Examples
Ports
Input
A — Input matrix
scalar | vector | matrix
Input matrix, specified as a scalar, vector, or matrix.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
| enumerated
P — Index matrix
scalar | vector
Index matrix, specified as a scalar or vector.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| enumerated
Output
Port_1 — Output signal
vector | matrix
Output signal, specified as a vector or matrix.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
| enumerated
Parameters
Permute — Permute method
Columns
(default) | Rows
Method of constructing the output matrix by permuting rows or columns of the input.
When the Permute parameter is set to:
Rows
–– The block uses the rows ofA
to create a matrix that has the same column dimension. InputP
is a length-L vector whose elements determine where each row fromA
must be placed in the L-by-N output matrix.y = [A(P(1),:) ; A(P(2),:) ; A(P(3),:) ; ... ; A(P(end),:)] % Equivalent MATLAB code
For row permutation, the block treats the length-M unoriented vector input at the port
A
as an M-by-1 matrix.Columns
–– The block uses the columns ofA
to create a matrix that has the same row dimension. InputP
is a length-L vector whose elements determine where each column fromA
must be placed in the M-by-L output matrix.% Equivalent MATLAB code y = [A(:,P(1)) A(:,P(2)) A(:,P(3)) ... A(:,P(end))]
For column permutation, the block treats the length-N unoriented vector input at port
A
as a 1-by-N matrix.
Programmatic Use
Block Parameter:
mode |
Type: character vector, string |
Values:'
Columns' | 'Rows' |
Default: '
Columns' |
Index mode — Index mode
One-based
(default) | Zero-based
When set to One-based
, a value of
1
in the permutation vector P
refers to the first row or column of the input matrix A
.
When set to Zero-based
, a value of
0
in P
refers to the first row or
column of A
.
Programmatic Use
Block Parameter:
ZeroOneIdxMode |
Type: character vector, string |
Values:'
Zero-based' | 'One-based' |
Default:
'One-based' |
Invalid permutation index — Response to an invalid index value
Clip index
(default) | Clip and warn
| Generate error
Response to an invalid index value. When an index value in input
P
references a nonexistent row or column of matrix
A
, the block reacts as specified in this parameter.
These options are available:
Clip index
–– Clip the index to the nearest valid value (1 or M for row permutation and 1 or N for column permutation) and do not issue an alert. Example: For a 3-by-7 input matrix, a column index of 9 is clipped to 7 and a row index of -2 is clipped to 1.Clip and warn
–– Display a warning message in the MATLAB® Command Window and clip the index as described in the preceding bullet.Generate error
–– Display an error dialog box and terminate the simulation.
Tunable: Yes
Programmatic Use
Block Parameter:
errmode |
Type: character vector, string |
Values: 'Clip
index' | 'Clip and warn' |
'Generate error' |
Default: 'Clip
index' |
Error when length of P is not equal to Permute dimension size — Error message for P length
off
(default) | on
Option to display an error dialog box and terminate the simulation when
the length of the permutation vector P
is not equal to
the number of rows or columns of the input matrix
A
.
You can choose to open an error dialog box and terminate the simulation by
setting this parameter to on
.
Programmatic Use
Block Parameter:
checkDims |
Type: character vector, string |
Values:
'off' | 'on' |
Default:
'off' |
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Generated code relies on the memcpy
or
memset
function (string.h
) under certain
conditions.
Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
Version History
Introduced before R2006aR2021b: Create Permute Matrix Block Moved to Simulink Matrix Operations Library
The Permute Matrix block has been moved from the DSP System Toolbox > Math Functions > Matrices and Linear Algebra > Matrix Operations library to the Simulink > Matrix Operationslibrary. All existing models continue to work.
See Also
Blocks
- Submatrix | Variable Selector (DSP System Toolbox)
