Use Data Stores Across Multiple Models

This example shows how to use and log local data stores. It also shows how to define, use, and log global data stores to share global data among referenced models.

Inspect Example Models

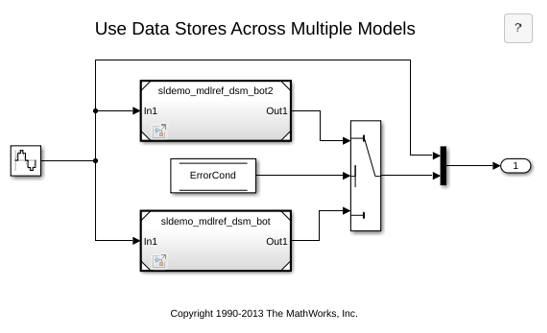

Open the example models. The top model sldemo_mdlref_dsm references models sldemo_mdlref_dsm_bot and sldemo_mdlref_dsm_bot2. Logging of data stores is turned on for sldemo_mdlref_dsm on the Data Import/Export pane of the Configuration Parameters dialog box.

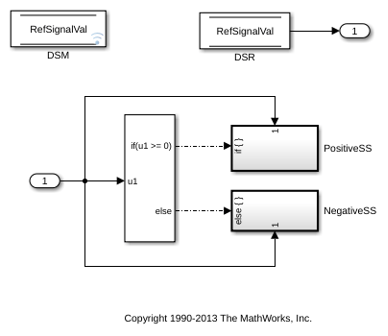

Referenced model sldemo_mdlref_dsm_bot amplifies the incoming signal by 5 if the signal is positive or by 2 if the signal is negative and writes the value of this signal to local data store RefSignalVal. This local data store is configured to log all written values to the workspace after simulation. The logging parameters for this local data store are controlled by the Logging tab of the Block Parameters dialog box.

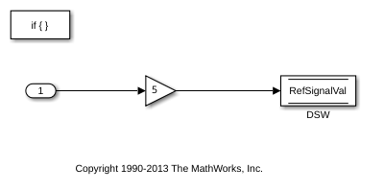

The PositiveSS subsystem contains the blocks that amplify the incoming signal by 5 if the signal is positive and write the value of this signal to local data store RefSignalVal.

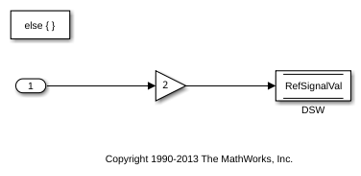

The NegativeSS subsystem contains the blocks that amplify the incoming signal by 2 if the signal is negative and write the value of this signal to local data store RefSignalVal.

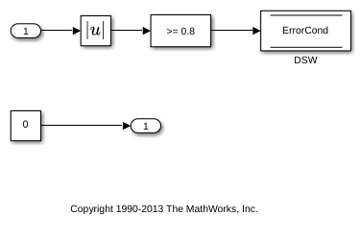

Referenced model sldemo_mdlref_dsm_bot2 sets the value of a global boolean data store named ErrorCond to true if the value of its incoming signal is outside of the range (-0.8, 0.8). The top model also monitors the data store ErrorCond and switches between the outputs of the two referenced models, depending on the value of that data store.

Define Global Data Store Using Simulink® Signal Object

To specify to Simulink that the top model and both of the referenced models use the same memory for the data store named ErrorCond in each model, create an instance of a Simulink.Signal object named ErrorCond in a workspace or data dictionary that is visible to each model. Since this object is visible to each model, its scope encompasses the individual models and implies that there is one global data store of that name that is shared among the models. Note that none of the three models contains a Data Store Memory block with a data store name of ErrorCond. If any model contained such a block, that block would define a data store local to the model, which would shadow the global data store.

Since the object ErrorCond defines a global data store, it must explicitly define the DataType, Complexity, and Dimensions properties to non-inherited settings. SampleTime and StorageClass may be left as their inherited values, or explicitly set.

The example includes a MAT file named sldemo_mdlref_dsm_data.mat that contains the Simulink.Signal object ErrorCond. The preload function of the model sldemo_mdlref_dsm loads this MAT file, causing the object to be loaded in the base workspace. You can view this object by selecting the base workspace in the Model Explorer. You can also create this object in the MATLAB® Command Window. The following commands define the object used in this example.

  ErrorCond = Simulink.Signal;
  ErrorCond.Description = 'Use to signal that subsystem output is invalid';
  ErrorCond.DataType = 'boolean';
  ErrorCond.Complexity = 'real';
  ErrorCond.Dimensions = 1;
  ErrorCond.SampleTime = 0.1;
  ErrorCond.LoggingInfo.DataLogging = true;

Log Global Data Store

To log all the values written to the global data store, set the DataLogging property of the LoggingInfo property of the Simulink.Signal object. The LoggingInfo property also allows specification of other logging parameters such as decimation and maximum points.

   Simulink.LoggingInfo (handle)
           DataLogging: 1
              NameMode: 0
           LoggingName: ''
          DecimateData: 0
            Decimation: 2
       LimitDataPoints: 0
             MaxPoints: 5000

Simulate Model Hierarchy

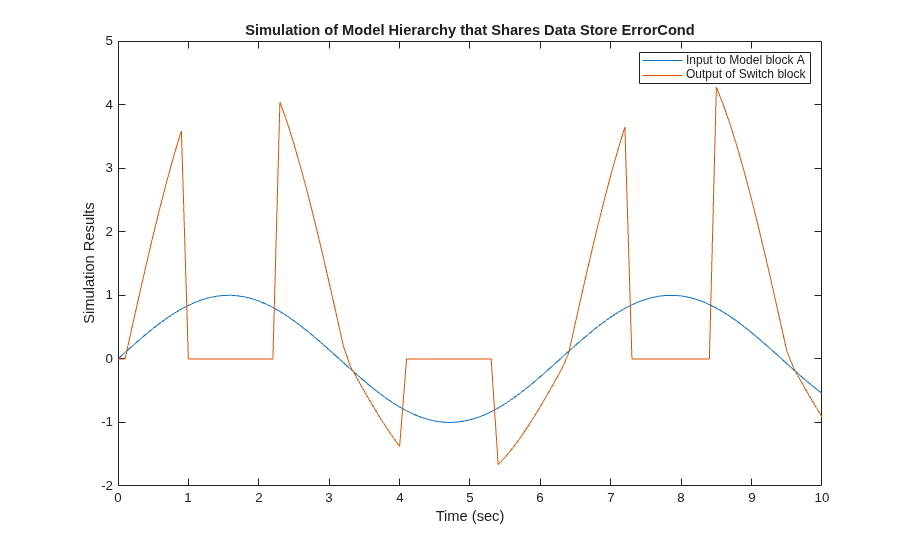

Simulate sldemo_mdlref_dsm to see the output. The referenced model sldemo_mdlref_dsm_bot writes to the data store ErrorCond while the top model sldemo_mdlref_dsm reads from the data store. The blue line represents the input to Model block A, which references the model sldemo_mdlref_dsm_bot. The orange line represents the output of the Switch block. The output switches when the magnitude of the input signal falls outside of the range.

View Logged Results

Both the global data store ErrorCond and the local data store RefSignalVal are configured to log all written values after simulation. These logged results are stored in the base workspace in the dsmout variable.

dsmout =

Simulink.SimulationData.Dataset 'dsmout' with 2 elements

                                  Name          BlockPath
                                  ____________  ________________________________________
    1  [1x1 DataStoreMemory]      ErrorCond     ''
    2  [1x1 DataStoreMemory]      RefSignalVal  ...dlref_dsm/A|sldemo_mdlref_dsm_bot/DSM

  - Use braces { } to access, modify, or add elements using index.

To access the data stored for the local data store, use the getElement function to get the correct data store element based on the name RefSignalVal.

   >> dsmout.getElement('RefSignalVal')
  Package: Simulink.SimulationData

                   Name: 'RefSignalVal'
              BlockPath: [1x1 Simulink.SimulationData.BlockPath]
                  Scope: 'local'
    DSMWriterBlockPaths: [1x2 Simulink.SimulationData.BlockPath]
             DSMWriters: [101x1 uint32]
                 Values: [1x1 timeseries]

Data is stored in a timeseries within the Values field.

   >> plot(dsmout.getElement('RefSignalVal').Values);

To determine which block wrote to the data store at a given time, use the DSMWriters property. This array contains a list of indices into the DSMWriterBlockPaths array. For example, the block path of the Data Store Write block that wrote the 5th value to the data store can be obtained as follows.

   >> dsm = dsmout.getElement('RefSignalVal');
   >> dsm.DSMWriterBlockPaths(dsm.DSMWriters(5))
  Package: Simulink.SimulationData

  Block Path:

  Use the getBlock method to access block path character vectors from this object.
