Custom State Attributes in Discrete FIR Filter block

This example shows how to customize the state attributes of the Discrete FIR Filter block using the Model Data Editor. The Model Data Editor enables you to inspect and edit data items in a list that you can sort, group, and filter. For more information on using the Model Data Editor, see Configure Data Properties by Using the Model Data Editor.

Consider a simple model that contains the Discrete FIR Filter block.

Using the Model Data Editor, you can configure the state of the Discrete FIR Filter to appear in the generated code as a separate global variable. This is done by declaring the storage class of the state as ExportedGlobal. For details on how the generated code stores internal states, see How Generated Code Stores Internal Signal, State, and Parameter Data (Simulink Coder). For more details on storage classes and how to apply them to the states, see Apply Storage Classes to Individual Signal, State, and Parameter Data Elements (Simulink Coder).

Open Model Data Editor

Open the Model Data Editor. On the Modeling tab, click Model Data Editor.

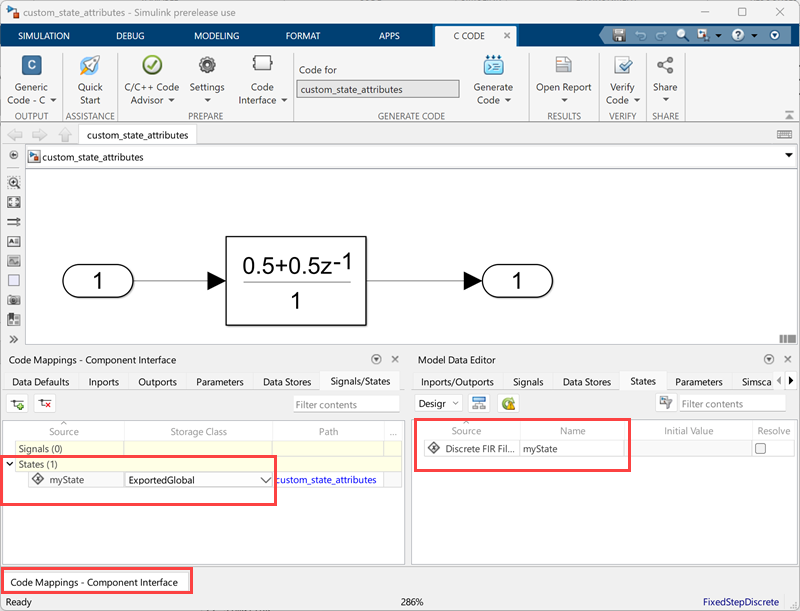

Under the States tab, enter the Name as myState and select the Storage Class as ExportedGlobal. You can alternatively select the Resolve check box, which requires the state name to resolve to a Simulink® signal object.

Build the Model and Inspect the Generated Code

This example configures the model to generate code only. Open the Configuration Parameters by clicking the configuration button in the Simulink editor. In the Code Generation pane, select Generate code only. Click Apply.

In the Report pane, select Create code generation report and Open report automatically. Click Apply. These settings create a report and automatically open the report in a web browser.

To initiate the build, click the build model button in the Simulink editor or press Ctrl+B. The build process writes the code generation report files to the html subfolder of the build folder. Next, the build process automatically opens a MATLAB® web browser window and displays the code generation report. Using this report, you can view and analyze the generated code. For more information on the generated report, see Reports for Code Generation (Simulink Coder).

In the custom_state_attributes.h file, you can see that the filter state is declared as an external variable since the storage class is ExportedGlobal.

If you change the storage class and rebuild the model, you can see the generated code reflect the change. With the ability to customize the state attributes, you can streamline and customize how the state appears in the generated code.
