read

Return image data captured with camera

Since R2024b

Syntax

image = read(camera)

[image,depth] = read(camera)

[image,semantic] = read(camera)

[image,depth,semantic] = read(camera)

Description

image = read(camera) returns image data that is captured with the camera specified by camera in the 3D environment.

[image,depth] = read(camera) returns depth and image data of the image that is captured with the camera specified by camera in the simulation 3D environment. To enable the depth output argument, set the EnableDepthOutput argument of the sim3d.sensors.Camera object to true.

[image,semantic] = read(camera) returns semantic and image data of the image that is captured with the camera specified by camera in the simulation 3D environment. To enable the semantic output argument, set the EnableSemanticOutput argument of sim3d.sensors.Camera object to true.

[image,depth,semantic] = read(camera) returns depth, semantic, and image data of the image that is captured with the camera specified by camera in the simulation 3D environment. To enable the depth and semantic output arguments, set the EnableDepthOutput and EnableSemanticOutput arguments of the sim3d.sensors.Camera object to true. You can use these images to visualize and verify your driving algorithms. You can also develop depth estimation and semantic segmentation algorithms.

Examples

Create Camera and Extract Data

Since R2025a

Create a camera in the 3D environment using the sim3d.sensors.Camera object. You can capture images of the 3D environment and display them in MATLAB®. Use the read function to extract image data from the 3D environment.

Create a 3D environment and set up communication with the Unreal Engine simulation environment using the output function OutputImpl and the update function UpdateImpl. The sim3d.World object can send and receive data about the 3D environment to and from the Unreal Engine at each simulation step using output and update functions, respectively. Before the Unreal Engine simulates, MATLAB calls the output function and sends data to the Unreal Engine. Then, the Unreal Engine executes at each time step and sends data to MATLAB in the update function. You can use the update function to read this data or change values after each simulation step.

world = sim3d.World(Output=@outputImpl,Update=@updateImpl);

Create a box actor in the 3D environment using the sim3d.Actor object and add the box to the world.

cube = sim3d.Actor( ...
        ActorName="Cube", ...
        Mobility=sim3d.utils.MobilityTypes.Movable);
createShape(cube,"box");
add(world,cube);

Create a camera object using the sim3d.sensors.Camera object and set the location of the camera using the Translation property. Add the camera to the world.

camera = sim3d.sensors.Camera( ...
        ActorName="Camera");
camera.Translation = [-3 0 0];
add(world,camera);

Run the co-simulation.

sampletime = 1/60;
stoptime = 2;
run(world,sampletime,stoptime);

Output Function

The output function sends data about the actor to the Unreal Engine environment at each simulation step. For this example, the function rotates the Cube about its Z-axis by updating the Rotation property of the Cube at each simulation step.

function outputImpl(world)
    world.Actors.Cube.Rotation(3) = world.Actors.Cube.Rotation(3) ...
    + 0.01;
end

Update Function

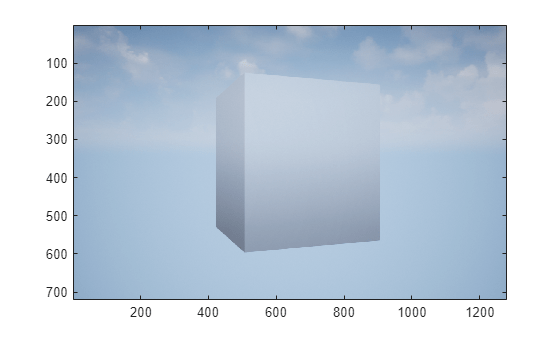

The update function reads data from the Unreal Engine environment at each simulation step. For this example, the update function uses the read function of the sim3d.sensors.Camera object to get image data from the Camera in the Unreal Engine environment and uses the image function to display it in MATLAB.

function updateImpl(world)
    sceneImage = read(world.Actors.Camera);
    image(sceneImage);
end

Generate Depth and Semantic Data

Since R2025a

Generate depth and semantic data for the 3D environment. Create a camera in the 3D environment using the sim3d.sensors.Camera object. You can capture images, generate depth and semantic data for the 3D environment and, display the images in MATLAB®. Use the read function to generate the depth and semantic data for the 3D environment.

Create figure windows and specify the name using the figure function.

imageFigure = figure(Name="Image");
depthFigure = figure(Name="Depth");
semanticFigure = figure(Name="Semantic");

Create a 3D environment using the sim3d.World object. Set up communication with the Unreal Engine simulation environment using the output function OutputImpl and the update function UpdateImpl. An anonymous function is defined using @(world), where world is the current state of the sim3d.World object during each simulation step. This function calls the UpdateImpl function, which takes world and the figure window handles imageFigure, depthFigure, and semanticFigure as arguments.

world = sim3d.World( ...
    Output=@OutputImpl, ...
    Update=@(world) UpdateImpl(world,imageFigure, ...
    depthFigure,semanticFigure));

Create a box actor in the 3D environment using the sim3d.Actor object and add the box to the world.

cube = sim3d.Actor( ...
        ActorName="Cube", ...
        Mobility=sim3d.utils.MobilityTypes.Movable);
createShape(cube,"box");
add(world,cube);

Create a camera object with depth and semantic data using the sim3d.sensors.Camera object. Set the location of the camera using the Translation property. Add the camera to the world.

camera = sim3d.sensors.Camera( ...
        ActorName="Camera", ...
        EnableDepthOutput = true, ...
        EnableSemanticOutput = true);
camera.Translation = [-3 0 0];
add(world,camera);

Run the co-simulation. The software displays the image, depth, and semantic data in MATLAB.

sampletime = 1/60;
stoptime = 2;
run(world,sampletime,stoptime);

Output Function

The output function sends data about the actor to the Unreal Engine environment at each simulation step. For this example, the function rotates the Cube about its Z-axis by updating the Rotation property of the Cube at each simulation step.

function OutputImpl(world)
    world.Actors.Cube.Rotation(3) = world.Actors.Cube.Rotation(3) ...
    + 0.01;
end

Update Function

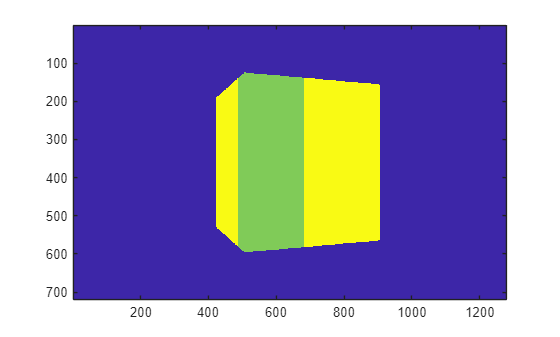

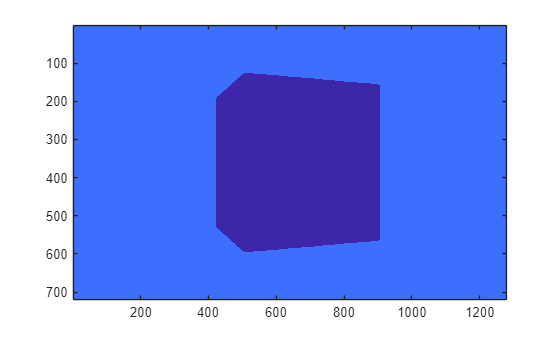

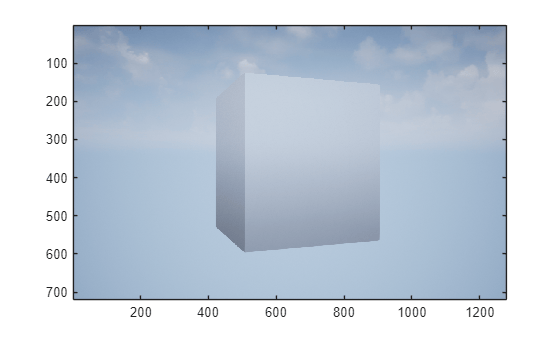

The update function reads data from the Unreal Engine environment and updates the content in the figure windows at each simulation step. For this example, the update function uses the read function of the sim3d.sensors.Camera object to get the image, depth, and semantic data from the Camera in the Unreal Engine environment and uses the image and imagesc functions to display the data in MATLAB.

function UpdateImpl(world,imageFigure,depthFigure,semanticFigure)
    [sceneImage, sceneDepth, sceneSemantic] = read(world.Actors.Camera);

    figure(imageFigure);
    image(sceneImage);

    figure(depthFigure);
    sceneDepth(sceneDepth > 20) = nan;
    imagesc(sceneDepth);

    figure(semanticFigure)
    image(sceneSemantic)
end

Input Arguments

camera — Virtual camera that captures image

sim3d.sensors.Camera object

Virtual camera that captures the image, specified as a sim3d.sensors.Camera object.

Example: camera = sim3d.sensors.Camera

Output Arguments

The table summarizes each type of output data and how to enable it.

Output	Description	Argument to Enable Output	Sample Visualization
image	RGB image data captured by the camera	Not applicable
depth	Depth map with values from 0 m to 1000 meters	EnableDepthOutput of sim3d.sensors.Camera object
semantic	Semantic segmentation map of label IDs that correspond to objects in the scene	EnableSemanticOutput of sim3d.sensors.Camera object

image — Image data returned by camera

m-by-n-by-3 array of RGB triplet values

Image data returned by camera, returned as an m-by-n-by-3 array of RGB triplet values. m is the vertical resolution of the image. n is the horizontal resolution of the image.

Data Types: uint8

depth — Object depth

m-by-n array of object depths

Object depth for each pixel in the image, returned as an m-by-n array. m is the vertical resolution of the image. n is the horizontal resolution of the image. Depth is in the range from 0 to 1000 meters.

Dependencies

To enable depth output, set the EnableDepthOutput argument of the sim3d.sensors.Camera object to 1.

semantic — Semantic label identifier

m-by-n-by-3 array of RGB triplet values

Semantic label identifier for each pixel in the image, output as an m-by-n array of RGB triplet values. m is the vertical resolution of the image. n is the horizontal resolution of the image.

The table shows the object IDs used in the default scenes. If a scene contains an object that does not have an assigned ID, that object is assigned an ID of 0. The detection of lane markings is not supported.

ID	Type
0	None/default
1	Building
2	Not used
3	Other
4	Pedestrians
5	Pole
6	Lane Markings
7	Road
8	Sidewalk
9	Vegetation
10	Vehicle
11	Not used
12	Generic traffic sign
13	Stop sign
14	Yield sign
15	Speed limit sign
16	Weight limit sign
17-18	Not used
19	Left and right arrow warning sign
20	Left chevron warning sign
21	Right chevron warning sign
22	Not used
23	Right one-way sign
24	Not used
25	School bus only sign
26-38	Not used
39	Crosswalk sign
40	Not used
41	Traffic signal
42	Curve right warning sign
43	Curve left warning sign
44	Up right arrow warning sign
45-47	Not used
48	Railroad crossing sign
49	Street sign
50	Roundabout warning sign
51	Fire hydrant
52	Exit sign
53	Bike lane sign
54-56	Not used
57	Sky
58	Curb
59	Flyover ramp
60	Road guard rail
61	Bicyclist
62-66	Not used
67	Deer
68-70	Not used
71	Barricade
72	Motorcycle
73-255	Not used

Dependencies

To enable semantic output, set the EnableSemanticOutput argument of the sim3d.sensors.Camera object to 1.

Version History

Introduced in R2024b
