looptuneSetup
Construct tuning setup for looptune
to
tuning setup for systune
using slTuner
interface
Description
[
converts
a tuning setup for st0
,SoftReqs
,HardReqs
,sysopt
]
= looptuneSetup(looptuneInputs
)looptune
into
an equivalent tuning setup for systune
.
The argument looptuneInputs
is a sequence of
input arguments for looptune
that specifies the
tuning setup. For example,
[st0,SoftReqs,HardReqs,sysopt] = looptuneSetup(st0,wc,Req1,Req2,loopopt)
looptune(st0,wc,Req1,Req2,loopopt)
and systune(st0,SoftReqs,HardReqs,sysopt)
produce
the same results.Use this command to take advantage of additional flexibility
that systune
offers relative to looptune
.
For example, looptune
requires that you tune
all channels of a MIMO feedback loop to the same target bandwidth.
Converting to systune
allows you to specify different
crossover frequencies and loop shapes for each loop in your control
system. Also, looptune
treats all tuning requirements
as soft requirements, optimizing them, but not requiring that any
constraint be exactly met. Converting to systune
allows
you to enforce some tuning requirements as hard constraints, while
treating others as soft requirements.
You can also use this command to probe into the tuning requirements
enforced by looptune
.
Examples
Convert looptune Problem into systune Problem
Convert a set of looptune
inputs
for tuning a Simulink® model into an equivalent set of inputs
for systune
.
Suppose you have created and configured an slTuner
interface, st0
,
for tuning with looptune
. Suppose also that you
used looptune
to tune the feedback loop defined
in st0
to within a bandwidth of wc = [wmin,wmax]
.
Convert these variables into a form that allows you to use systune
for
further tuning.
[st0,SoftReqs,HardReqs,sysopt] = looptuneSetup(st0,wc,controls,measurements);
The command returns the closed-loop system and tuning requirements
for the equivalent systune
command, systune(st0,SoftReqs,HardReqs,sysopt)
.
The arrays SoftReqs
and HardReqs
contain
the tuning requirements implicitly imposed by looptune
.
These requirements enforce the target bandwidth and default stability
margins of looptune
.
If you used additional tuning requirements when tuning
the system with looptune
, add them to the input
list of looptuneSetup
. For example, suppose you
used a TuningGoal.Tracking
requirement, Req1
,
and a TuningGoal.Rejection
requirement, Req2
.
Suppose also that you set algorithm options for looptune
using looptuneOptions
.
Incorporate these requirements and options into the equivalent systune
command.
[st0,SoftReqs,HardReqs,sysopt] = looptuneSetup(st0,wc,Req1,Req2,loopopt);
The resulting arguments allow you to construct the equivalent
tuning problem for systune
.
Convert Distillation Column Problem for Tuning with systune

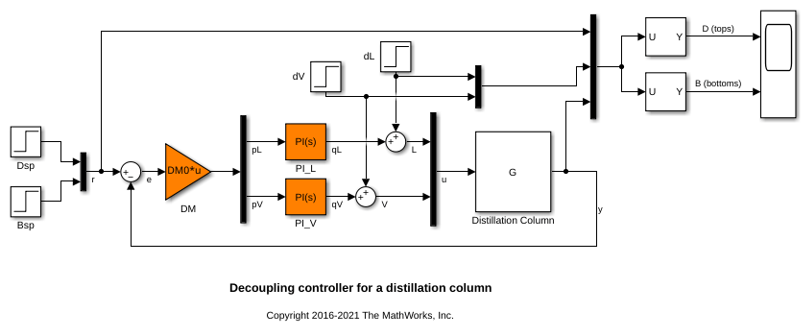

Set up the control system of the Simulink® model rct_distillation
for tuning with looptune
. Then, convert the setup to a systune
problem, and examine the resulting arguments. The results reflect the tuning requirements implicitly enforced when tuning with looptune
.
Create an slTuner
interface to the Simulink model, and specify the blocks to be tuned. Configure the interface for tuning with looptune
by adding analysis points that define the separation between the plant and the controller. Also add the analysis points needed for imposing tuning requirements.
open_system('rct_distillation') tuned_blocks = {'PI_L','PI_V','DM'}; st0 = slTuner('rct_distillation',tuned_blocks); addPoint(st0,{'L','V','y','r','dL','dV'});
This system is now ready for tuning with looptune
, using tuning goals that you specify. For example, specify a target bandwidth range. Create a tuning requirement that imposes reference tracking in both channels of the system, and a disturbance rejection requirement.
wc = [0.1,0.5]; req1 = TuningGoal.Tracking('r','y',15,0.001,1); max_disturbance_gain = frd([0.05 5 5],[0.001 0.1 10],'TimeUnit','min'); req2 = TuningGoal.Gain({'dL','dV'},'y',max_disturbance_gain); controls = {'L','V'}; measurement = 'y'; [st,gam,info] = looptune(st0,controls,measurement,wc,req1,req2);
Final: Peak gain = 1.04, Iterations = 66
looptune
successfully tunes the system to these requirements. However, you might want to switch to systune
to take advantage of additional flexibility in configuring your problem. For example, instead of tuning both channels to a loop bandwidth inside wc
, you might want to specify different crossover frequencies for each loop. Or, you might want to enforce the tuning requirements, req1
and req2
, as hard constraints, and add other requirements as soft requirements.
Convert the looptune
input arguments to a set of input arguments for systune
.
[st0,SoftReqs,HardReqs,sysopt] = looptuneSetup(st0,controls,measurement,wc,req1,req2);
This command returns a set of arguments you can feed to systune
for equivalent results to tuning with looptune
. In other words, the following command is equivalent to the looptune
command.
[st,fsoft,ghard,info] = systune(st0,SoftReqs,HardReqs,sysopt);
Final: Peak gain = 1.04, Iterations = 66
Examine the tuning requirements returned by looptuneSetup
. When tuning this control system with looptune
, all requirements are treated as soft requirements. Therefore, HardReqs
is empty. SoftReqs
is an array of TuningGoal
requirements. These requirements together enforce the bandwidth and margins of the looptune
command, plus the additional requirements that you specified.
SoftReqs
SoftReqs = 5x1 heterogeneous SystemLevel (LoopShape, Tracking, Gain, ...) array with properties: Models Openings Name
For example, examine the first entry in SoftReqs
.
SoftReqs(1)
ans = LoopShape with properties: LoopGain: [1x1 zpk] CrossTol: 0.3495 Focus: [0 Inf] Stabilize: 1 LoopScaling: 'on' Location: {'y'} Models: NaN Openings: {0x1 cell} Name: 'Open loop GC'
looptuneSetup
expresses the target crossover frequency range wc
as a TuningGoal.LoopShape
requirement. This requirement constrains the open-loop gain profile to the loop shape stored in the LoopGain
property, with a crossover frequency and crossover tolerance (CrossTol
) determined by wc
. Examine this loop shape.

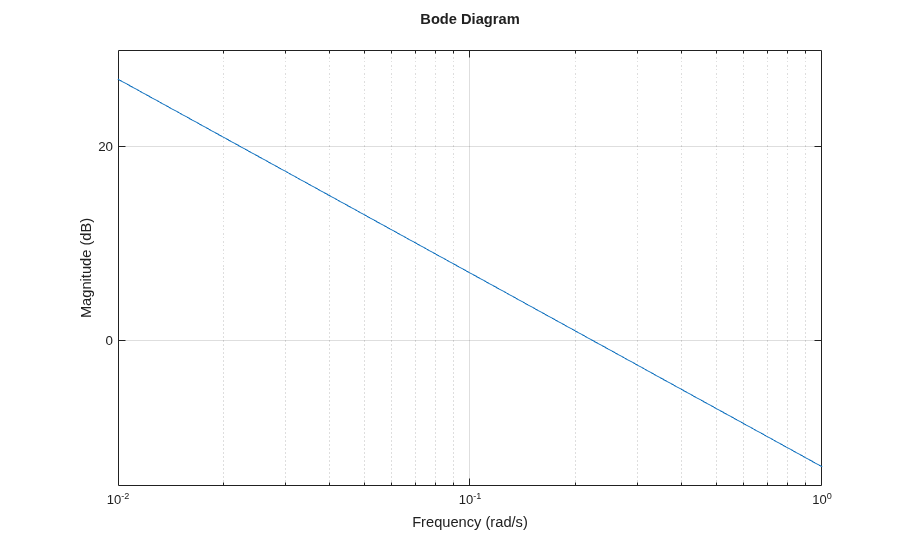

bodemag(SoftReqs(1).LoopGain,logspace(-2,0)),grid
The target crossover is expressed as an integrator gain profile with a crossover between 0.1 and 0.5 rad/s, as specified by wc
. If you want to specify a different loop shape, you can alter this TuningGoal.LoopShape
requirement before providing it to systune
.
looptune
also tunes to default stability margins that you can change using looptuneOptions
. For systune
, stability margins are specified using TuningGoal.Margins
requirements. Here, looptuneSetup
has expressed the default stability margins as soft TuningGoal.Margins
requirements. For example, examine the fourth entry in SoftReqs
.
SoftReqs(4)
ans = Margins with properties: GainMargin: 7.6000 PhaseMargin: 45 ScalingOrder: 0 Focus: [0 Inf] Location: {2x1 cell} Models: NaN Openings: {0x1 cell} Name: 'Margins at plant inputs'
The last entry in SoftReqs
is a similar TuningGoal.Margins
requirement constraining the margins at the plant outputs. looptune
enforces these margins as soft requirements. If you want to convert them to hard constraints, pass them to systune
in the input vector HardReqs
instead of the input vector SoftReqs
.
Input Arguments
looptuneInputs
— Control system and requirements configured for tuning with looptune
valid looptune
input sequence
Control system and requirements configured for tuning with looptune
,
specified as a valid looptune
input sequence. For
more information about the arguments in a valid looptune
input
sequence, see the looptune
reference
page.
Output Arguments
st0
— Interface for tuning control systems modeled in Simulink
slTuner
interface
Interface for tuning control systems modeled in Simulink,
returned as an slTuner
interface. st0
is
identical to the slTuner
interface you use as input
to looptuneSetup
.
SoftReqs
— Soft tuning requirements
vector of TuningGoal
requirement objects
Soft tuning requirements for tuning with systune
,
returned as a vector of TuningGoal
requirement
objects.
looptune
expresses most of its implicit
tuning requirements as soft tuning requirements. For example, a specified
target loop bandwidth is expressed as a TuningGoal.LoopShape
requirement
with integral gain profile and crossover at the target frequency.
Additionally, looptune
treats all of the explicit
requirements you specify (Req1,...ReqN
) as soft
requirements. SoftReqs
contains all of these
tuning requirements.
HardReqs
— Hard tuning requirements
vector of TuningGoal
requirement objects
Hard tuning requirements (constraints) for tuning with systune
,
returned as a vector of TuningGoal
requirement
objects.
Because looptune
treats most tuning requirements
as soft requirements, HardReqs
is usually empty.
However, if you change the default MaxFrequency
option
of the looptuneOptions
set, loopopt
,
then this requirement appears as a hard TuningGoal.Poles
constraint.
sysopt
— Algorithm options for systune
tuning
systuneOptions
options set
Version History
Introduced in R2014a
See Also
slTuner
| looptune
| systune
| looptuneOptions
| systuneOptions
| looptuneSetup (for genss)
