Write signal data file log on target computer
Simulink Real-Time / Logging /
When you enable logging service, the File Log block logs the signal at its input port to the target computer file system.
For more information about the file logging workflow, see Signal Logging Basics.
S — Signal data for file log
scalar | vector | matrix | array | bus | nonvirtual bus
Provides the signal data input for the file log.
Decimation — Applies decimation to file log data
1 (default) | integer

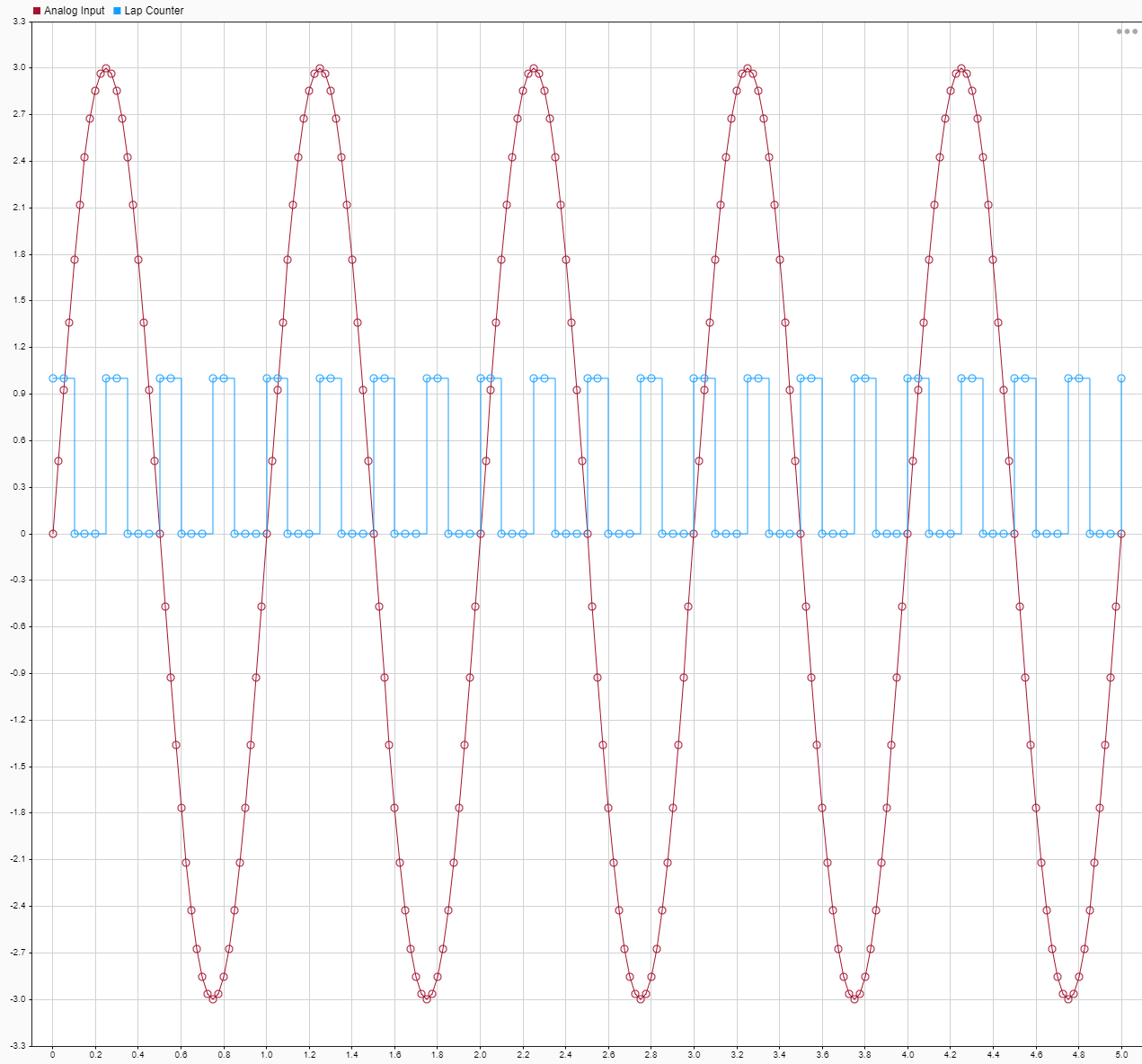

The decimation parameter value selects decimation for the samples captured in the file log.
By using the File Log decimation functions, you can tune the decimation parameter programmatically for the File Log in the model. These functions are:
Input Processing — Selects processing mode for file log data
Elements as channels (sample based) (default) |
Columns as channels (frame based)
The input processing parameter value selects whether the logged signal data is processed and sent to the Simulation Data Inspector in sample or frame processing mode. For more information about sample-based data and frame-based data in the Simulation Data Inspector, see View Data in the Simulation Data Inspector.
