lassoglm
Lasso or elastic net regularization for generalized linear models
Syntax
Description
returns penalized, maximum-likelihood fitted coefficients for generalized linear
models of the predictor data B
= lassoglm(X
,y
)X
and the response
y
, where the values in y
are assumed
to have a normal probability distribution. Each column of B
corresponds to a particular regularization coefficient in
Lambda
. By default, lassoglm
performs
lasso regularization using a geometric sequence of Lambda
values.
fits regularized generalized linear regressions with additional options specified by
one or more name-value pair arguments. For example, B
= lassoglm(X
,y
,distr
,Name,Value
)'Alpha',0.5
sets elastic net as the regularization method, with the parameter
Alpha
equal to 0.5.
Examples
Remove Redundant Predictors Using Lasso Regularization
Construct a data set with redundant predictors and identify those predictors by using lassoglm
.
Create a random matrix X
with 100 observations and 10 predictors. Create the normally distributed response y
using only four of the predictors and a small amount of noise.
rng default X = randn(100,10); weights = [0.6;0.5;0.7;0.4]; y = X(:,[2 4 5 7])*weights + randn(100,1)*0.1; % Small added noise
Perform lasso regularization.
B = lassoglm(X,y);
Find the coefficient vector for the 75th Lambda
value in B
.
B(:,75)
ans = 10×1
0
0.5431
0
0.3944
0.6173
0
0.3473
0
0
0
lassoglm
identifies and removes the redundant predictors.
Cross-Validated Lasso Regularization of Generalized Linear Model
Construct data from a Poisson model, and identify the important predictors by using lassoglm
.
Create data with 20 predictors. Create a Poisson response variable using only three of the predictors plus a constant.
rng default % For reproducibility X = randn(100,20); weights = [.4;.2;.3]; mu = exp(X(:,[5 10 15])*weights + 1); y = poissrnd(mu);
Construct a cross-validated lasso regularization of a Poisson regression model of the data.
[B,FitInfo] = lassoglm(X,y,'poisson','CV',10);

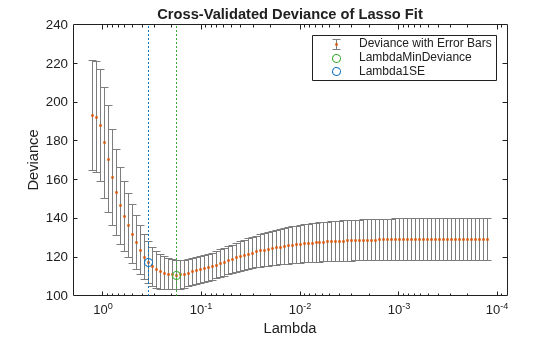

Examine the cross-validation plot to see the effect of the Lambda
regularization parameter.
lassoPlot(B,FitInfo,'plottype','CV'); legend('show') % Show legend
The green circle and dotted line locate the Lambda
with minimum cross-validation error. The blue circle and dotted line locate the point with minimum cross-validation error plus one standard deviation.
Find the nonzero model coefficients corresponding to the two identified points.
idxLambdaMinDeviance = FitInfo.IndexMinDeviance; mincoefs = find(B(:,idxLambdaMinDeviance))
mincoefs = 7×1
3
5
6
10
11
15
16
idxLambda1SE = FitInfo.Index1SE; min1coefs = find(B(:,idxLambda1SE))
min1coefs = 3×1
5
10
15
The coefficients from the minimum-plus-one standard error point are exactly those coefficients used to create the data.
Predict Values Using Lasso Regularization
Predict whether students got a B or above on their last exam by using lassoglm
.
Load the examgrades
data set. Convert the last exam grades to a logical vector, where 1
represents a grade of 80 or above and 0
represents a grade below 80.
load examgrades
X = grades(:,1:4);
y = grades(:,5);
yBinom = (y>=80);
Partition the data into training and test sets.
rng default % Set the seed for reproducibility c = cvpartition(yBinom,'HoldOut',0.3); idxTrain = training(c,1); idxTest = ~idxTrain; XTrain = X(idxTrain,:); yTrain = yBinom(idxTrain); XTest = X(idxTest,:); yTest = yBinom(idxTest);
Perform lasso regularization for generalized linear model regression with 3-fold cross-validation on the training data. Assume the values in y
are binomially distributed. Choose model coefficients corresponding to the Lambda
with minimum expected deviance.
[B,FitInfo] = lassoglm(XTrain,yTrain,'binomial','CV',3); idxLambdaMinDeviance = FitInfo.IndexMinDeviance; B0 = FitInfo.Intercept(idxLambdaMinDeviance); coef = [B0; B(:,idxLambdaMinDeviance)]
coef = 5×1
-21.1911
0.0235
0.0670
0.0693
0.0949
Predict exam grades for the test data using the model coefficients found in the previous step. Specify the link function for a binomial response using 'logit'
. Convert the prediction values to a logical vector.
yhat = glmval(coef,XTest,'logit');
yhatBinom = (yhat>=0.5);

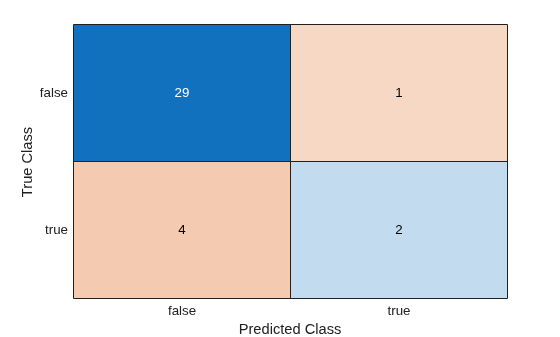

Determine the accuracy of the predictions using a confusion matrix.
c = confusionchart(yTest,yhatBinom);
The function correctly predicts 31 exam grades. However, the function incorrectly predicts that 1 student receives a B or above and 4
students receive a grade below a B.
Use Correlation Matrix for Fitting lassoglm
Create a matrix X
of N
p
-dimensional normal variables, where N
is large and p
= 1000. Create a response vector y
from the model y = X*beta + noise
, where beta
is a vector of coefficients with 50% nonzero values.
rng default % For reproducibility N = 1e4; % Number of samples p = 1e3; % Number of features X = randn(N,p); beta = 1 + 3*rand(p,1); % Multiplicative coefficients activep = randperm(p,p/2); % 50% nonzero coefficients y = X(:,activep)*beta(activep) + randn(N,1)*0.1; % Add noise
Construct the lasso fit without using the covariance matrix. Time the creation.
B = lassoglm(X,y,"normal",UseCovariance=false); % Warm up lasso for reliable timing data tic B = lassoglm(X,y,"normal",UseCovariance=false); timefalse = toc
timefalse = 4.8752
Construct the lasso fit using the covariance matrix. Time the creation.
B2 = lassoglm(X,y,"normal",UseCovariance=true); % Warm up lasso for reliable timing data tic B2 = lassoglm(X,y,"normal",UseCovariance=true); timetrue = toc
timetrue = 1.6029
The fitting time with the covariance matrix is less than the time without it. View the speedup factor that results from using the covariance matrix.
speedup = timefalse/timetrue
speedup = 3.0415
Check that the returned coefficients B
and B2
are similar.
norm(B-B2)/norm(B)
ans = 4.8056e-16
The results are virtually identical.
Input Arguments
X
— Predictor data
numeric matrix
Predictor data, specified as a numeric matrix. Each row represents one observation, and each column represents one predictor variable.
Data Types: single
| double
y
— Response data
numeric vector | logical vector | categorical array | numeric matrix
Response data, specified as a numeric vector, logical vector, categorical array, or two-column numeric matrix.
When
distr
is not'binomial'
,y
is a numeric vector or categorical array of length n, where n is the number of rows inX
. The responsey(i)
corresponds to row i inX
.When
distr
is'binomial'
,y
is one of the following:Numeric vector of length n, where each entry represents success (
1
) or failure (0
)Logical vector of length n, where each entry represents success or failure
Categorical array of length n, where each entry represents success or failure
Two-column numeric matrix, where the first column contains the number of successes for each observation and the second column contains the total number of trials
Data Types: single
| double
| logical
| categorical
distr
— Distribution of response data
'normal'
(default) | 'binomial'
| 'poisson'
| 'gamma'
| 'inverse gaussian'
Distribution of response data, specified as one of the following:
'normal'
(default)'binomial'
'poisson'
'gamma'
'inverse gaussian'
lassoglm
uses the default link function corresponding to distr
.
Specify another link function using the Link
name-value
pair argument.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: lassoglm(X,y,'poisson','Alpha',0.5)
performs elastic
net regularization assuming that the response values are Poisson distributed. The
'Alpha',0.5
name-value pair argument sets the parameter used
in the elastic net optimization.
Alpha
— Weight of lasso versus ridge optimization
1
(default) | positive scalar
Weight of lasso (L^{1})
versus ridge (L^{2})
optimization, specified as the comma-separated pair consisting of
'Alpha'
and a positive scalar value in the
interval (0,1]
. The value
Alpha = 1
represents lasso regression,
Alpha
close to 0
approaches
ridge regression, and other values represent elastic net optimization.
See Elastic Net.
Example: 'Alpha',0.75
Data Types: single
| double
CacheSize
— Size of covariance matrix in megabytes
1000
(default) | positive scalar | 'maximal'
Size of the covariance matrix in megabytes, specified as a positive scalar or 'maximal'
. The lassoglm
function can use a covariance matrix for fitting when the UseCovariance
argument is true
or 'auto'
.
If UseCovariance
is true
or 'auto'
and CacheSize
is 'maximal'
, lassoglm
can attempt to allocate a covariance matrix that exceeds the available memory. In this case, MATLAB^{®} issues an error.
Example: 'CacheSize','maximal'
Data Types: double
| char
| string
CV
— Cross-validation specification for estimating deviance
'resubstitution'
(default) | positive integer scalar | cvpartition
object
Cross-validation specification for estimating the deviance, specified
as the comma-separated pair consisting of 'CV'
and
one of the following:
'resubstitution'
—lassoglm
usesX
andy
to fit the model and to estimate the deviance without cross-validation.Positive scalar integer
K
—lassoglm
usesK
-fold cross-validation.cvpartition
objectcvp
—lassoglm
uses the cross-validation method expressed incvp
. You cannot use a'leaveout'
or custom'holdout'
partition withlassoglm
.
Example: 'CV',10
DFmax
— Maximum number of nonzero coefficients
Inf
(default) | positive integer scalar
Maximum number of nonzero coefficients in the model, specified as the
comma-separated pair consisting of 'DFmax'
and a
positive integer scalar. lassoglm
returns results
only for Lambda
values that satisfy this
criterion.
Example: 'DFmax',25
Data Types: single
| double
Lambda
— Regularization coefficients
nonnegative vector
Regularization coefficients, specified as the comma-separated pair
consisting of 'Lambda'
and a vector of nonnegative
values. See Lasso.
If you do not supply
Lambda
, thenlassoglm
estimates the largest value ofLambda
that gives a nonnull model. In this case,LambdaRatio
gives the ratio of the smallest to the largest value of the sequence, andNumLambda
gives the length of the vector.If you supply
Lambda
, thenlassoglm
ignoresLambdaRatio
andNumLambda
.If
Standardize
istrue
, thenLambda
is the set of values used to fit the models with theX
data standardized to have zero mean and a variance of one.
The default is a geometric sequence of NumLambda
values, with only the largest value able to produce
B
= 0
.
Data Types: single
| double
LambdaRatio
— Ratio of smallest to largest Lambda
values
1e–4
(default) | positive scalar
Ratio of the smallest to the largest Lambda
values when you do not supply Lambda
, specified as
the comma-separated pair consisting of 'LambdaRatio'
and a positive scalar.
If you set LambdaRatio
= 0, then
lassoglm
generates a default sequence of
Lambda
values and replaces the smallest one
with 0
.
Example: 'LambdaRatio',1e–2
Data Types: single
| double
Link
— Mapping between mean of response and linear predictor
'comploglog'
| 'identity'
| 'log'
| 'logit'
| 'loglog'
| ...
Mapping between the mean µ of the response and the
linear predictor Xb, specified as the comma-separated
pair consisting of 'Link'
and one of the values in
this table.
Value | Description |
---|---|
'comploglog' | log(–log((1 – µ))) = Xb |
| µ = Xb |
| log(µ) = Xb |
| log(µ/(1 – µ)) = Xb |
| log(–log(µ)) = Xb |
'probit' | Φ^{–1}(µ) = Xb, where Φ is the normal (Gaussian) cumulative distribution function |
'reciprocal' , default for the distribution 'gamma' | µ^{–1} = Xb |
| µ^{p} = Xb |
A structure of function handles with the field | User-specified link function (see Custom Link Function) |
Example: 'Link','probit'
Data Types: char
| string
| single
| double
| cell
MaxIter
— Maximum number of iterations allowed
1e4
(default) | positive integer scalar
Maximum number of iterations allowed, specified as the comma-separated
pair consisting of 'MaxIter'
and a positive integer
scalar.
If the algorithm executes MaxIter
iterations
before reaching the convergence tolerance RelTol
,
then the function stops iterating and returns a warning message.
The function can return more than one warning when
NumLambda
is greater than
1
.
Example: 'MaxIter',1e3
Data Types: single
| double
MCReps
— Number of Monte Carlo repetitions for cross-validation
1
(default) | positive integer scalar
Number of Monte Carlo repetitions for cross-validation, specified as
the comma-separated pair consisting of 'MCReps'
and a
positive integer scalar.
If
CV
is'resubstitution'
or acvpartition
of type'resubstitution'
, thenMCReps
must be1
.If
CV
is acvpartition
of type'holdout'
, thenMCReps
must be greater than1
.If
CV
is a customcvpartition
of type'kfold'
, thenMCReps
must be1
.
Example: 'MCReps',2
Data Types: single
| double
NumLambda
— Number of Lambda
values
100
(default) | positive integer scalar
Number of Lambda
values
lassoglm
uses when you do not supply
Lambda
, specified as the comma-separated pair
consisting of 'NumLambda'
and a positive integer
scalar. lassoglm
can return fewer than
NumLambda
fits if the deviance of the fits
drops below a threshold fraction of the null deviance (deviance of the
fit without any predictors X
).
Example: 'NumLambda',150
Data Types: single
| double
Offset
— Additional predictor variable
numeric vector
Additional predictor variable, specified as the comma-separated pair
consisting of 'Offset'
and a numeric vector with the
same number of rows as X
. The
lassoglm
function keeps the coefficient value
of Offset
fixed at 1.0
.
Data Types: single
| double
Options
— Options for computing in parallel and setting random streams
structure
Options for computing in parallel and setting random streams, specified as a
structure. Create the Options
structure using statset
. This table lists the option fields and their
values.
Field Name | Value | Default |
---|---|---|
UseParallel | Set this value to true to run computations in
parallel. | false |
UseSubstreams | Set this value to To compute
reproducibly, set | false |
Streams | Specify this value as a RandStream object or
cell array of such objects. Use a single object except when the
UseParallel value is true
and the UseSubstreams value is
false . In that case, use a cell array that
has the same size as the parallel pool. | If you do not specify Streams , then
lassoglm uses the default stream or
streams. |
Note
You need Parallel Computing Toolbox™ to run computations in parallel.
Example: Options=statset(UseParallel=true,UseSubstreams=true,Streams=RandStream("mlfg6331_64"))
Data Types: struct
PredictorNames
— Names of predictor variables
{}
(default) | string array | cell array of character vectors
Names of the predictor variables, in the order in which they appear in
X
, specified as the comma-separated pair
consisting of 'PredictorNames'
and a string array or
cell array of character vectors.
Example: 'PredictorNames',{'Height','Weight','Age'}
Data Types: string
| cell
RelTol
— Convergence threshold for coordinate descent algorithm
1e–4
(default) | positive scalar
Convergence threshold for the coordinate descent algorithm [3], specified as the comma-separated pair
consisting of 'RelTol'
and a positive scalar. The
algorithm terminates when successive estimates of the coefficient vector
differ in the L^{2} norm by a
relative amount less than RelTol
.
Example: 'RelTol',2e–3
Data Types: single
| double
Standardize
— Flag for standardizing predictor data before fitting models
true
(default) | false
Flag for standardizing the predictor data X
before fitting the models, specified as the comma-separated pair
consisting of 'Standardize'
and either
true
or false
. If
Standardize
is true
, then
the X
data is scaled to have zero mean and a
variance of one. Standardize
affects whether the
regularization is applied to the coefficients on the standardized scale
or the original scale. The results are always presented on the original
data scale.
Example: 'Standardize',false
Data Types: logical
UseCovariance
— Indication to use covariance matrix for fitting
'auto'
(default) | logical scalar
Indication to use a covariance matrix for fitting, specified as
'auto'
or a logical scalar.
'auto'
causeslassoglm
to attempt to use a covariance matrix for fitting when the number of observations is greater than the number of problem variables,Link
='identity'
, anddistr
='normal'
. This attempt can fail when memory is insufficient. To find out whetherlassoglm
used a covariance matrix for fitting, examine theUseCovariance
field of theFitInfo
output.true
causeslassoglm
to use a covariance matrix for fitting as long as the required size does not exceedCacheSize
. If the required covariance matrix size exceedsCacheSize
,lassoglm
issues a warning and does not use a covariance matrix for fitting.false
causeslassoglm
not to use a covariance matrix for fitting.
Using a covariance matrix for fitting can be faster than not using one, especially for a normally-distributed response, but can require more memory. See Use Correlation Matrix for Fitting lassoglm. The speed increase can negatively affect numerical stability. For details, see Coordinate Descent Algorithm.
Example: 'UseCovariance',true
Data Types: logical
| char
| string
Weights
— Observation weights
1/n*ones(n,1)
(default) | nonnegative vector
Observation weights, specified as the comma-separated pair consisting
of 'Weights'
and a nonnegative vector.
Weights
has length n, where
n is the number of rows of
X
. At least two values must be positive.
Data Types: single
| double
Output Arguments
B
— Fitted coefficients
numeric matrix
Fitted coefficients, returned as a numeric matrix. B
is a p-by-L matrix, where
p is the number of predictors (columns) in
X
, and L is the number of
Lambda
values. You can specify the number of
Lambda
values using the
NumLambda
name-value pair argument.
The coefficient corresponding to the intercept term is a field in
FitInfo
.
Data Types: single
| double
FitInfo
— Fit information of models
structure
Fit information of the generalized linear models, returned as a structure with the fields described in this table.
Field in
FitInfo | Description |
---|---|
Intercept | Intercept term
β_{0} for each
linear model, a 1 -by-L
vector |
Lambda | Lambda parameters in ascending order, a
1 -by-L
vector |
Alpha | Value of the Alpha parameter, a
scalar |
DF | Number of nonzero coefficients in B
for each value of Lambda , a
1 -by-L
vector |
Deviance | Deviance of the fitted model for each value of
If the model is cross-validated, then
the values for |
PredictorNames | Value of the PredictorNames parameter,
stored as a cell array of character vectors |
UseCovariance | Logical value indicating whether the covariance matrix
was used in fitting. If the covariance was computed and
used, this field is true . Otherwise, this
field is false . |
If you set the CV
name-value pair argument to
cross-validate, the FitInfo
structure contains these
additional fields.
Field in
FitInfo | Description |
---|---|
SE | Standard error of Deviance for each
Lambda , as calculated during
cross-validation, a
1 -by-L
vector |
LambdaMinDeviance | Lambda value with minimum expected
deviance, as calculated by cross-validation, a
scalar |
Lambda1SE | Largest Lambda value such that
Deviance is within one standard error
of the minimum, a scalar |
IndexMinDeviance | Index of Lambda with the value
LambdaMinDeviance , a scalar |
Index1SE | Index of Lambda with the value
Lambda1SE , a scalar |
More About
Link Function
A link function f(μ) maps a distribution with mean μ to a linear model with data X and coefficient vector b using the formula
f(μ) = Xb.
You can find the formulas for the link functions in the Link
name-value pair argument description. This table lists the link functions that are
typically used for each distribution.
Distribution Family | Default Link Function | Other Typical Link Functions |
---|---|---|
'normal' | 'identity' | |
'binomial' | 'logit' | 'comploglog' , 'loglog' ,
'probit' |
'poisson' | 'log' | |
'gamma' | 'reciprocal' | |
'inverse gaussian' | –2 |
Lasso
For a nonnegative value of λ, lassoglm
solves the
problem
$$\underset{{\beta}_{0},\beta}{\mathrm{min}}\left(\frac{1}{N}\text{Deviance}\left({\beta}_{0},\beta \right)+\lambda {\displaystyle \sum _{j=1}^{p}\left|{\beta}_{j}\right|}\right).$$
The function Deviance in this equation is the deviance of the model fit to the responses using the intercept β_{0} and the predictor coefficients β. The formula for Deviance depends on the
distr
parameter you supply tolassoglm
. Minimizing the λ-penalized deviance is equivalent to maximizing the λ-penalized loglikelihood.N is the number of observations.
λ is a nonnegative regularization parameter corresponding to one value of
Lambda
.The parameters β_{0} and β are a scalar and a vector of length p, respectively.
As λ increases, the number of nonzero components of β decreases.
The lasso problem involves the L^{1} norm of β, as contrasted with the elastic net algorithm.
Elastic Net
For α strictly between 0 and 1, and nonnegative λ, elastic net solves the problem
$$\underset{{\beta}_{0},\beta}{\mathrm{min}}\left(\frac{1}{N}\text{Deviance}\left({\beta}_{0},\beta \right)+\lambda {P}_{\alpha}\left(\beta \right)\right),$$
where
$${P}_{\alpha}\left(\beta \right)=\frac{(1-\alpha )}{2}{\Vert \beta \Vert}_{2}^{2}+\alpha {\Vert \beta \Vert}_{1}={\displaystyle \sum _{j=1}^{p}\left(\frac{(1-\alpha )}{2}{\beta}_{j}^{2}+\alpha \left|{\beta}_{j}\right|\right)}.$$
Elastic net is the same as lasso when α = 1. For other values of α,
the penalty term P_{α}(β)
interpolates between the L^{1} norm
of β and the squared L^{2} norm
of β. As α shrinks
toward 0, elastic net approaches ridge
regression.
Algorithms
Coordinate Descent Algorithm
lassoglm
fits many values of λ
simultaneously by an efficient procedure named coordinate
descent, based on Friedman, Tibshirani, and Hastie [3]. The procedure has two main code paths depending on whether the fitting uses a
covariance matrix. You can affect this choice with the
UseCovariance
name-value argument.
When lassoglm
uses a covariance matrix to fit
N
data points and D
predictors, the
fitting has a rough computational complexity of D*D
. Without a
covariance matrix, the computational complexity is roughly N*D
.
So, typically, using a covariance matrix can be faster when N >
D
, and the default 'auto'
setting of the
UseCovariance
argument makes this choice. Using a covariance
matrix causes lassoglm
to subtract larger numbers than
otherwise, which can be less numerically stable. For details of the algorithmic
differences, see [3]. For one comparison of timing and accuracy
differences, see Use Correlation Matrix for Fitting lassoglm.
References
[1] Tibshirani, R. “Regression Shrinkage and Selection via the Lasso.” Journal of the Royal Statistical Society. Series B, Vol. 58, No. 1, 1996, pp. 267–288.
[2] Zou, H., and T. Hastie. “Regularization and Variable Selection via the Elastic Net.” Journal of the Royal Statistical Society. Series B, Vol. 67, No. 2, 2005, pp. 301–320.
[3] Friedman, J., R. Tibshirani, and T. Hastie.
“Regularization Paths for Generalized Linear Models via Coordinate
Descent.” Journal of Statistical Software. Vol. 33, No. 1,
2010. https://www.jstatsoft.org/v33/i01
[4] Hastie, T., R. Tibshirani, and J. Friedman. The Elements of Statistical Learning. 2nd edition. New York: Springer, 2008.
[5] Dobson, A. J. An Introduction to Generalized Linear Models. 2nd edition. New York: Chapman & Hall/CRC Press, 2002.
[6] McCullagh, P., and J. A. Nelder. Generalized Linear Models. 2nd edition. New York: Chapman & Hall/CRC Press, 1989.
[7] Collett, D. Modelling Binary Data. 2nd edition. New York: Chapman & Hall/CRC Press, 2003.
Extended Capabilities
Automatic Parallel Support
Accelerate code by automatically running computation in parallel using Parallel Computing Toolbox™.
To run in parallel, specify the Options
name-value argument in the call to
this function and set the UseParallel
field of the
options structure to true
using
statset
:
Options=statset(UseParallel=true)
For more information about parallel computing, see Run MATLAB Functions with Automatic Parallel Support (Parallel Computing Toolbox).
Version History
Introduced in R2012a
Comando MATLAB
Hai fatto clic su un collegamento che corrisponde a questo comando MATLAB:
Esegui il comando inserendolo nella finestra di comando MATLAB. I browser web non supportano i comandi MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
