test

Test indices for time series cross-validation

Since R2022b

Syntax

idx = test(c)

idx = test(c,i)

Description

idx = test(c) returns the test indices idx for a tspartition object c. That is, the logical vector idx specifies the observations in the test set. In this syntax, c is an object of type 'holdout'.

idx = test(c,i) returns the test indices for window i of a tspartition object c of type 'expanding-window' or 'sliding-window'. That is, the logical vector idx specifies the observations in test set i.

• If c.Type is 'expanding-window', then the training set size expands with each window while the test set size remains fixed.

• If c.Type is 'sliding-window', then both the training set size and the test set size are fixed.

Examples

Identify Test Set Observations in Holdout Validation

Identify the observations in the test set of a tspartition object for holdout validation.

Use 30% of 20 time-dependent observations to create a test set. The corresponding training set contains the remaining observations.

c = tspartition(20,"Holdout",0.30);

Find the test set indices. A value of 1 (true) indicates that the corresponding observation is in the test set. A value of 0 (false) indicates that the corresponding observation is in the training set.

testIndices = test(c);

Visualize the observations in the test set by using a heat map.

h = heatmap(double(testIndices),ColorbarVisible="off");
h.XDisplayLabels = "";
ylabel("Observation")
title("Test Set Observations")

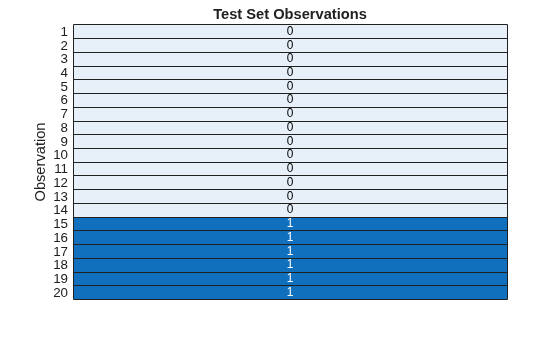

The observations in light blue (with a value of 0) are in the training set, and the observations in dark blue (with a value of 1) are in the test set. When you use holdout validation for time series data, the latest observations (in this case, observations 15 through 20) are in the test set.

Sliding Window Cross-Validation

Identify the observations in the training sets and test sets of a tspartition object for sliding window cross-validation.

Use 20 time-dependent observations to create five training sets and five test sets.

c = tspartition(20,"SlidingWindow",5);

Find the training set indices for the five windows. A value of 1 (true) indicates that the corresponding observation is in the training set for that window.

trainWindows = zeros(c.NumObservations,c.NumTestSets);
for i = 1:c.NumTestSets
    trainWindows(:,i) = training(c,i);
end

Find the test set indices for the five windows. A value of 1 (true) indicates that the corresponding observation is in the test set for that window.

testWindows = zeros(c.NumObservations,c.NumTestSets);
for i = 1:c.NumTestSets
    testWindows(:,i) = test(c,i);
end

Combine the training and test set indices into one matrix where a value of 1 indicates a training observation and a value of 2 indicates a test observation.

data = trainWindows + 2*testWindows;

Visualize the different sets by using a heat map.

colormap = lines(3);
heatmap(double(data),ColorbarVisible="off", ...
    Colormap=colormap);
xlabel("Window")
ylabel("Observation")
title("Sliding Window Cross-Validation Scheme")

For each window, the observations in red (with a value of 1) are in the training set, the observations in yellow (with a value of 2) are in the test set, and the observations in blue (with a value of 0) are ignored. For example, observations 9 through 11 are test observations in window two and training observations in window three. Because of the default values for the training set size, test set size, step size, and direction for creating sliding windows, tspartition does not use some of the oldest observations (1 and 2) in any window.

Input Arguments

c — Time series validation partition

tspartition object

Time series validation partition, specified as a tspartition object. The validation partition type (Type) is 'expanding-window', 'holdout', or 'sliding-window'.

i — Test set or window index

positive integer scalar

Test set or window index, specified as a positive integer scalar. When you specify i, the test function finds the observations in test set i.

Data Types: single | double

Output Arguments

idx — Indices for test set observations

logical vector

Indices for test set observations, returned as a logical vector. A value of 1 (true) indicates that the corresponding observation is in the test set. A value of 0 (false) indicates that the corresponding observation is in a different set, such as the training set.

Version History

Introduced in R2022b
