jacobiDC

Jacobi DC elliptic function

Syntax

jacobiDC(u,m)

Description

jacobiDC(u,m) returns the Jacobi DC Elliptic Function of u and m. If u or m is an array, then jacobiDC acts element-wise.

Examples

Calculate Jacobi DC Elliptic Function for Numeric Inputs

jacobiDC(2,1)

ans =
     1

Call jacobiDC on array inputs. jacobiDC acts element-wise when u or m is an array.

jacobiDC([2 1 -3],[1 2 3])

ans =
    1.0000    0.4197   -0.0056

Calculate Jacobi DC Elliptic Function for Symbolic Numbers

Convert numeric input to symbolic form using sym, and find the Jacobi DC elliptic function. For symbolic input where u = 0 or m = 0 or 1,jacobiDC returns exact symbolic output.

jacobiDC(sym(2),sym(1))

ans =
1

Show that for other values of u or m, jacobiDC returns an unevaluated function call.

jacobiDC(sym(2),sym(3))

ans =
jacobiDC(2, 3)

Find Jacobi DC Elliptic Function for Symbolic Variables or Expressions

For symbolic variables or expressions, jacobiDC returns the unevaluated function call.

syms x y
f = jacobiDC(x,y)

f =
jacobiDC(x, y)

Substitute values for the variables by using subs, and convert values to double by using double.

f = subs(f, [x y], [3 5])

f =
jacobiDC(3, 5)

fVal = double(f)

fVal =
    0.9981

Calculate f to higher precision using vpa.

fVal = vpa(f)

fVal =
0.99805623285568333815968501058428

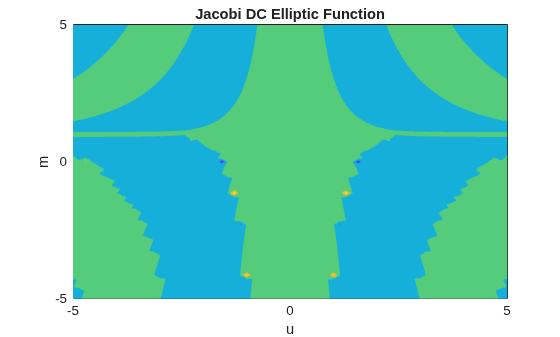

Plot Jacobi DC Elliptic Function

Plot the Jacobi DC elliptic function using fcontour. Set u on the x-axis and m on the y-axis by using the symbolic function f with the variable order (u,m). Fill plot contours by setting Fill to on.

syms f(u,m)
f(u,m) = jacobiDC(u,m);
fcontour(f,'Fill','on')
title('Jacobi DC Elliptic Function')
xlabel('u')
ylabel('m')

Input Arguments

u — Input

number | vector | matrix | multidimensional array | symbolic number | symbolic variable | symbolic vector | symbolic matrix | symbolic multidimensional array | symbolic function | symbolic expression

Input, specified as a number, vector, matrix, or multidimensional array, or a symbolic number, variable, vector, matrix, multidimensional array, function, or expression.

m — Input

number | vector | matrix | multidimensional array | symbolic number | symbolic variable | symbolic vector | symbolic matrix | symbolic multidimensional array | symbolic function | symbolic expression

Input, specified as a number, vector, matrix, or multidimensional array, or a symbolic number, variable, vector, matrix, multidimensional array, function, or expression.

More About

Jacobi DC Elliptic Function

The Jacobi DC elliptic function is

dc(u,m) = dn(u,m)/cn(u,m)

where dn and cn are the respective Jacobi elliptic functions.

The Jacobi elliptic functions are meromorphic and doubly periodic in their first argument with periods 4K(m) and 4iK'(m), where K is the complete elliptic integral of the first kind, implemented as ellipticK.

Version History

Introduced in R2017b
