triangularPulse

Triangular pulse function

collapse all in page

Syntax

triangularPulse(a,b,c,x)
triangularPulse(a,c,x)
triangularPulse(x)

Description

triangularPulse(a,b,c,x) returns the Triangular Pulse Function.

example

triangularPulse(a,c,x) is a shortcut for triangularPulse(a, (a + c)/2, c, x).

triangularPulse(x) is a shortcut for triangularPulse(-1, 0, 1, x).

Examples

collapse all

Open Live Script
syms x
fplot(triangularPulse(x), [-2 2])

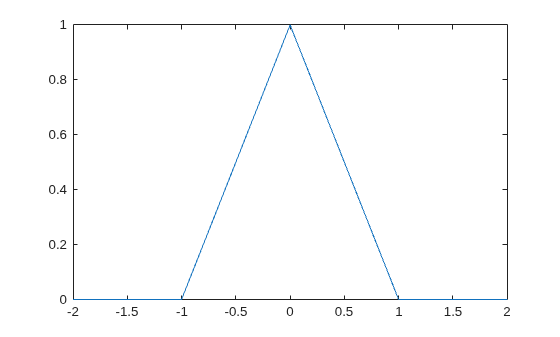

Figure contains an axes object. The axes object contains an object of type functionline.

Compute the triangular pulse function for these numbers. Because these numbers are not symbolic objects, you get floating-point results.

[triangularPulse(-2, 0, 2, -3)
triangularPulse(-2, 0, 2, -1/2)
triangularPulse(-2, 0, 2, 0)
triangularPulse(-2, 0, 2, 3/2)
triangularPulse(-2, 0, 2, 3)]]
ans =
         0
    0.7500
    1.0000
    0.2500
         0

Compute the same values symbolically by converting the numbers to symbolic objects.

[triangularPulse(sym(-2), 0, 2, -3)
triangularPulse(-2, 0, 2, sym(-1/2))
triangularPulse(-2, sym(0), 2, 0)
triangularPulse(-2, 0, 2, sym(3/2))
triangularPulse(-2, 0, sym(2), 3)]
ans =
   0
 3/4
   1
 1/4
   0

Use triangularPulse with one input argument as a shortcut for computing triangularPulse(-1, 0, 1, x):

syms x
triangularPulse(x)
ans =
triangularPulse(-1, 0, 1, x)

Use triangularPulse with three input arguments as a shortcut for computing triangularPulse(a, (a + c)/2, c, x):

syms a c x
triangularPulse(a, c, x)
ans =
triangularPulse(a, a/2 + c/2, c, x)

Depending on the relation between inputs, the triangularPulse has special values.

Compute the triangular pulse function for a < x < b:

syms a b c x
assume(a < x < b)
triangularPulse(a, b, c, x)
ans =
(a - x)/(a - b)

For further computations, remove the assumption by recreating the variables using syms:

syms a b x

Compute the triangular pulse function for b < x < c:

assume(b < x < c)
triangularPulse(a, b, c, x)
ans =
-(c - x)/(b - c)

For further computations, remove the assumption:

syms b c x

Compute the triangular pulse function for a = b:

syms a b c x
assume(b < c)
triangularPulse(b, b, c, x)
ans =
-((c - x)*rectangularPulse(b, c, x))/(b - c)

Compute the triangular pulse function for c = b:

assume(a < b)
triangularPulse(a, b, b, x)
ans =
((a - x)*rectangularPulse(a, b, x))/(a - b)

For further computations, remove all assumptions on a, b, and c:

syms a b c

Input Arguments

collapse all

Input, specified as a number or a symbolic scalar. This argument specifies the rising edge of the triangular pulse function.

Input, specified as a number or a symbolic scalar. This argument specifies the peak of the triangular pulse function. If you specify a and c, then (a + c)/2. Otherwise, 0.

Input, specified as a number or a symbolic scalar. This argument specifies the falling edge of the triangular pulse function.

Input, specified as a number, vector, matrix, or array, or a symbolic number, variable, array, function, or expression.

More About

collapse all

Tips

  • If a, b, and c are variables or expressions with variables, triangularPulse assumes that a <= b <= c. If a, b, and c are numerical values that do not satisfy this condition, triangularPulse throws an error.

  • If a = b = c, triangularPulse returns 0.

  • If a = b or b = c, the triangular function can be expressed in terms of the rectangular function.

Version History

Introduced in R2012b
