lineToBorderPoints
Intersection points of lines in image and image border
Description
Examples
Find Intersection Points Between a Line and Image Border
Load and display an image.
I = imread('rice.png'); figure; imshow(I); hold on;
Define a line with the equation, 2 * x + y - 300 = 0.
aLine = [2,1,-300];
Compute the intersection points of the line and the image border.
points = lineToBorderPoints(aLine,size(I))
points = 1×4
149.7500 0.5000 21.7500 256.5000

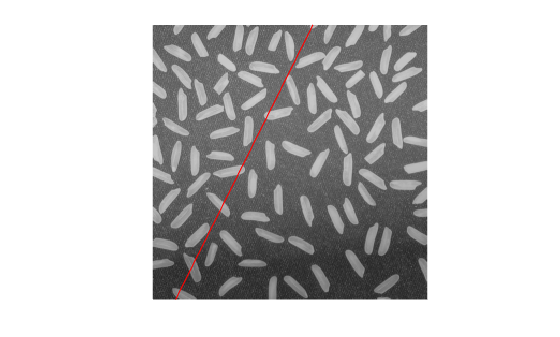

line(points([1,3]),points([2,4]));
Input Arguments
lines
— Line matrix
M-by-3 matrix (default)
Line matrix, specified as an M-by-3 matrix, where each row must be in the format, [A,B,C]. This matrix corresponds to the definition of the line:
A * x + B * y + C = 0. |
lines
must be double
or
single
.
imageSize
— Image size
integer (default) | row vector
Image size, specified as a row vector in the format returned by the size
function.
Output Arguments
points
— Intersection points
M-by-4 matrix
Intersection points, returned as an M-by-4 matrix. The function
returns the matrix in the format of [x1,
y1,
x2,
y2]. In this matrix,
[x1
y1] and
[x2
y2] are the two intersection points. When a
line in the image and the image border do not intersect, the function returns
[-1,-1,-1,-1
].
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Version History
Introduced in R2011a
See Also
size
| line
| epipolarLine
