Rotate
Rotate image by specified angle
Library
Geometric Transformations
visiongeotforms
Description

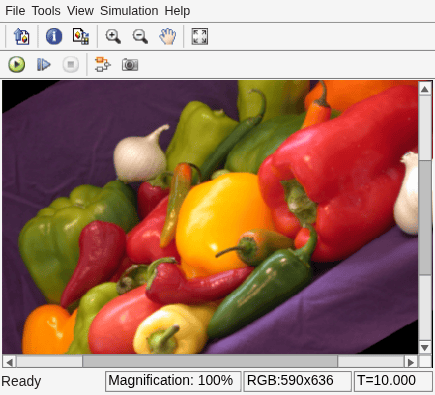

Use the Rotate block to rotate an image by an angle specified in radians.
Note
This block supports intensity and color images on its ports.
Port  Description

Image  MbyN matrix of intensity values or an MbyNbyP color video signal where P is the number of color planes
Angle  Rotation angle
Output  Rotated matrix
The Rotate block uses the 3pass shear rotation
algorithm to compute its values, which is different than the algorithm
used by the imrotate
function
in the Image Processing Toolbox™.
FixedPoint Data Types
The following diagram shows the data types used in the Rotate block for bilinear interpolation of fixedpoint signals.
You can set the angle values, product output, accumulator, and output data types in the block mask.
The Rotate block requires additional data types. The Sine table value has the same word length as the angle data type and a fraction length that is equal to its word length minus one. The following diagram shows how these data types are used inside the block.
Note
If overflow occurs, the rotated image might appear distorted.
Parameters
 Output size
Specify the size of the rotated matrix. If you select
Expanded to fit rotated input image
, the block outputs a matrix that contains all the rotated image values. If you selectSame as input image
, the block outputs a matrix that contains the middle part of the rotated image. As a result, the edges of the rotated image might be cropped. Use the Background fill value parameter to specify the pixel values outside the image. Rotation angle source
Specify how to enter your rotation angle. If you select
Specify via dialog
, the Angle (radians) parameter appears in the dialog box.If you select
Input port
, the Angle port appears on the block. The block uses the input to this port at each time step as your rotation angle. The input to the Angle port must be the same data type as the input to the I port. Angle (radians)
Enter a real, scalar value for your rotation angle. This parameter is visible if, for the Rotation angle source parameter, you select
Specify via dialog
.When the rotation angle is a multiple of pi/2, the block uses a more efficient algorithm. If the angle value you enter for the Angle (radians) parameter is within 0.00001 radians of a multiple of pi/2, the block rounds the angle value to the multiple of pi/2 before performing the rotation.
 Maximum angle (enter pi radians to accommodate all positive and negative angles)
Enter the maximum angle by which to rotate the input image. Enter a scalar value, between
0
and $$\pi $$ radians. The block determines which angle, $$0\le angle\le \mathrm{max}angle$$, requires the largest output matrix and sets the dimensions of the output port accordingly.This parameter is visible if you set the Output size parameter, to
Expanded to fit rotated input image
, and the Rotation angle source parameter toInput port
. Display rotated image in
Specify how the image is rotated. If you select
Center
, the image is rotated about its center point. If you selectTopleft corner
, the block rotates the image so that two corners of the rotated input image are always in contact with the top and left sides of the output image.This parameter is visible if, for the Output size parameter, you select
Expanded to fit rotated input image
, and, for the Rotation angle source parameter, you selectInput port
. Sine value computation method
Specify the value computation method. If you select
Trigonometric function
, the block computes sine and cosine values it needs to calculate the rotation of your image during the simulation. If you selectTable lookup
, the block computes and stores the trigonometric values it needs to calculate the rotation of your image before the simulation starts. In this case, the block requires extra memory. Background fill value
Specify a value for the pixels that are outside the image.
 Interpolation method
Specify which interpolation method the block uses to translate the image. If you select
Nearest neighbor
, the block uses the value of one nearby pixel for the new pixel value. If you selectBilinear
, the new pixel value is the weighted average of the four nearest pixel values. If you selectBicubic
, the new pixel value is the weighted average of the sixteen nearest pixel values.The number of pixels the block considers affects the complexity of the computation. Therefore, the
Nearestneighbor
interpolation is the most computationally efficient. However, because the accuracy of the method is proportional to the number of pixels considered, theBicubic
method is the most accurate.
 Rounding mode
Select the rounding mode for fixedpoint operations.
 Overflow mode
Select the overflow mode for fixedpoint operations.
 Angle values
Choose how to specify the word length and the fraction length of the angle values.
When you select
Same word length as input
, the word length of the angle values match that of the input to the block. In this mode, the fraction length of the angle values is automatically set to the binarypoint only scaling that provides you with the best precision possible given the value and word length of the angle values.When you select
Specify word length
, you can enter the word length of the angle values, in bits. The block automatically sets the fraction length to give you the best precision.When you select
Binary point scaling
, you can enter the word length and the fraction length of the angle values, in bits.When you select
Slope and bias scaling
, you can enter the word length, in bits, and the slope of the angle values. The bias of all signals in the Computer Vision Toolbox™ blocks is 0.
This parameter is only visible if, for the Rotation angle source parameter, you select
Specify via dialog
. Product output
As depicted in the previous figure, the output of the multiplier is placed into the product output data type and scaling. Use this parameter to specify how to designate this product output word and fraction lengths.
When you select
Same as first input
, these characteristics match those of the input to the block.When you select
Binary point scaling
, you can enter the word length and the fraction length of the product output, in bits.When you select
Slope and bias scaling
, you can enter the word length, in bits, and the slope of the product output. The bias of all signals in the Computer Vision Toolbox blocks is 0.
 Accumulator
As depicted in the previous figure, inputs to the accumulator are cast to the accumulator data type. The output of the adder remains in the accumulator data type as each element of the input is added to it. Use this parameter to specify how to designate this accumulator word and fraction lengths.
When you select
Same as product output
, these characteristics match those of the product output.When you select
Same as first input
, these characteristics match those of the first input to the block.When you select
Binary point scaling
, you can enter the word length and the fraction length of the accumulator, in bits.When you select
Slope and bias scaling
, you can enter the word length, in bits, and the slope of the accumulator. The bias of all signals in the Computer Vision Toolbox blocks is 0.
 Output
Choose how to specify the word length and fraction length of the output of the block:
When you select
Same as first input
, these characteristics match those of the first input to the block.When you select
Binary point scaling
, you can enter the word length and the fraction length of the output, in bits.When you select
Slope and bias scaling
, you can enter the word length, in bits, and the slope of the output. The bias of all signals in the Computer Vision Toolbox blocks is 0.
 Lock data type settings against change by the fixedpoint tools
Select this parameter to prevent the fixedpoint tools from overriding the data types you specify on the block mask. For more information, see
fxptdlg
(FixedPoint Designer), a reference page on the FixedPoint Tool in the Simulink^{®} documentation.
Supported Data Types
Port  Supported Data Types


Angle  Same as Image port
Output  Same as Image port
If the data type of the input signal is floating point, the output signal is the same data type as the input signal.
References
[1] Wolberg, George. Digital Image Warping. Washington: IEEE Computer Society Press, 1990.
