idualtree2

Kingsbury Q-shift 2-D inverse dual-tree complex wavelet transform

Since R2020a

collapse all in page

Syntax

imrec = idualtree2(A,D)
imrec = idualtree2(___,Name,Value)

Description

imrec = idualtree2(A,D) returns the inverse 2-D complex dual-tree transform of the final-level approximation coefficients, A, and cell array of wavelet coefficients, D. A and D are outputs of dualtree2. For the reconstruction, idualtree2 uses two sets of filters:

  • Orthogonal Q-shift filter of length 10

  • Near-symmetric biorthogonal filter pair with lengths 7 (scaling synthesis filter) and 5 (wavelet synthesis filter)

imrec = idualtree2(___,Name,Value) specifies additional options using name-value pair arguments. For example, 'LowpassGain',0.1 applies a gain of 0.1 to the final-level approximation coefficients.

example

Examples

collapse all

Open Live Script

This example shows how to reconstruct an approximation based on a subset of the wavelet subbands.

Load a 128-by-128 grayscale image.

load xbox
imagesc(xbox)
colormap gray

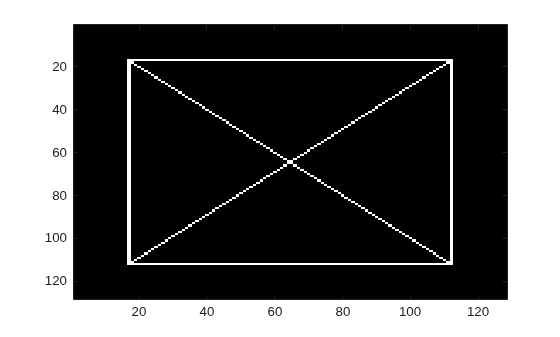

Figure contains an axes object. The axes object contains an object of type image.

Obtain the dual-tree wavelet transform of the image down to level 2

lev = 2;
[a,d] = dualtree2(xbox,'Level',lev);

Since there are six wavelet subbands in each level of the decomposition, create a 2-by-6 matrix of zeros.

dgains = zeros(lev,6);

To reconstruct an approximation based on the 2nd and 5th wavelet subbands, set the second and fifth rows of dgains equal to 1. The 2nd and 5th wavelet subbands correspond to the highpass filtering of the rows and columns of the image.

dgains(:,[2 5]) = 1;

Obtain two reconstructions using the specified wavelet subbands. Include the scaling (lowpass) coefficients only in the first reconstruction.

imrec = idualtree2(a,d,'DetailGain',dgains);
imrec2 = idualtree2(a,d,'DetailGain',dgains,'LowpassGain',0);
figure
subplot(2,1,1)
imagesc(imrec)
title('With Lowpass Coefficients')
subplot(2,1,2)
imagesc(imrec2)
title('Without Lowpass Coefficients')
colormap gray

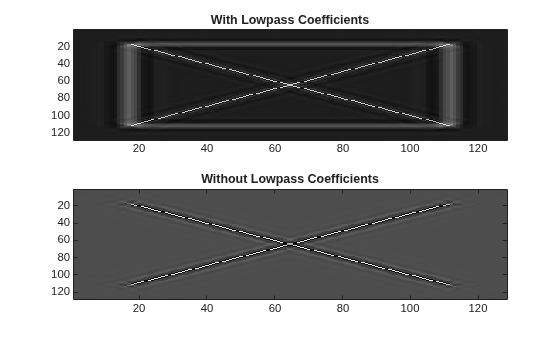

Figure contains 2 axes objects. Axes object 1 with title With Lowpass Coefficients contains an object of type image. Axes object 2 with title Without Lowpass Coefficients contains an object of type image.

Input Arguments

collapse all

Final-level approximation coefficients, specified as a real-valued array. The approximation coefficients are the output of dualtree2.

Data Types: double | single

Approximation coefficients, specified as a cell array. The wavelet coefficients are the output of dualtree2.

Data Types: double | single

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'LevelOneFilter','antonini','LowpassGain',0.5

Biorthogonal filter to use in the first-level synthesis, specified by one of the values listed here. For perfect reconstruction, the first-level synthesis filters must match the first-level analysis filters used in dualtree2.

  • 'legall' — LeGall 5/3 filter

  • 'nearsym13_19' — (13,19)-tap near-orthogonal filter

  • 'nearsym5_7' — (5,7)-tap near-orthogonal filter

  • 'antonini' — (9,7)-tap Antonini filter

Orthogonal Hilbert Q-shift synthesis filter pair length to use for levels 2 and higher, specified as one of the listed values. For perfect reconstruction, the filter length must match the filter length used in dualtree2.

Wavelet coefficients subband gains, specified as a real-valued matrix with a row dimension of L, where L is the number of elements in D. There are six columns in DetailGain for each of the six wavelet subbands. The elements of DetailGain are real numbers in the interval [0, 1]. The kth column elements of DetailGain are the gains (weightings) applied to the kth wavelet subband. By default, DetailGain is a L-by-6 matrix of ones.

Gain to apply to final-level approximation (lowpass, scaling) coefficients, specified as a real number in the interval [0, 1].

References

[1] Antonini, M., M. Barlaud, P. Mathieu, and I. Daubechies. “Image Coding Using Wavelet Transform.” IEEE Transactions on Image Processing 1, no. 2 (April 1992): 205–20. https://doi.org/10.1109/83.136597.

[2] Kingsbury, Nick. “Complex Wavelets for Shift Invariant Analysis and Filtering of Signals.” Applied and Computational Harmonic Analysis 10, no. 3 (May 2001): 234–53. https://doi.org/10.1006/acha.2000.0343.

[3] Le Gall, D., and A. Tabatabai. “Sub-Band Coding of Digital Images Using Symmetric Short Kernel Filters and Arithmetic Coding Techniques.” In ICASSP-88., International Conference on Acoustics, Speech, and Signal Processing, 761–64. New York, NY, USA: IEEE, 1988. https://doi.org/10.1109/ICASSP.1988.196696.
