nodepar

Node parent

collapse all in page

    Syntax

    f = nodepar(t,n)
    f = nodepar(t,n,"deppos")

    Description

    nodepar is a tree-management utility.

    f = nodepar(t,n) returns a vector that contains the indices of the "parent(s)" of the nodes n in the tree t. In the tree, nodes are numbered from left to right and from top to bottom. The root index is 0.

    Note

    nodepar(t,0) or nodepar(t,[0 0]) returns -1.

    f = nodepar(t,n,"deppos") returns a matrix that contains the depths and positions of the "parent(s)" of the nodes n in the tree t.

    Note

    nodepar(t,0,"deppos") or nodepar(t,[0,0],"deppos") returns [-1,0].

    example

    Examples

    collapse all

    Open Live Script

    A tree of order 2 is a binary tree. Create a binary tree of depth 3. Recompose two of the nodes. Plot the tree.

    t = ntree(2,3);
t = nodejoin(t,5);
t = nodejoin(t,4);
plot(t)

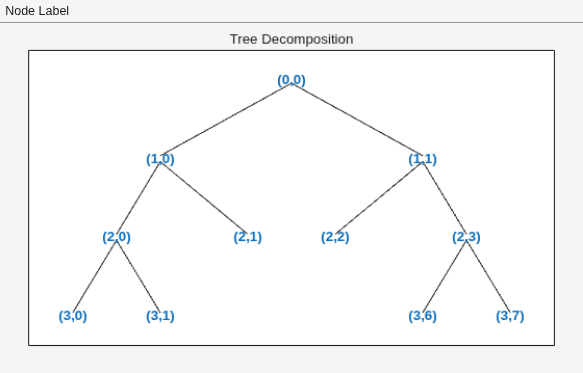

    Figure contains an axes object and an object of type uimenu. The axes object with title Tree Decomposition contains 21 objects of type line, text.

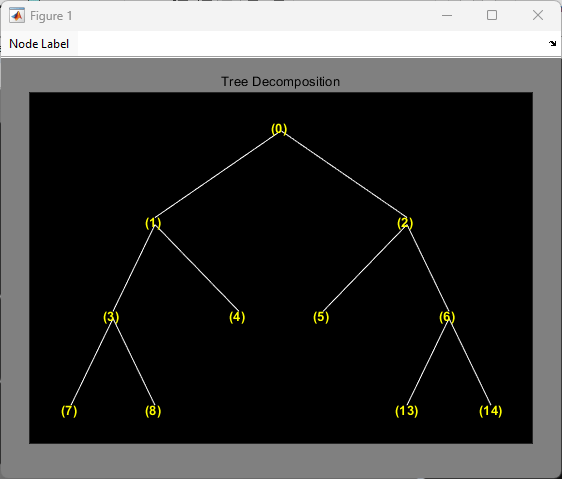

    Change the Node Label from Depth_Position to Index to get this figure:

    Obtain the depths and positions of the parents of the (2,2) and (3,1) nodes.

    nodepar(t,[2 2; 3 1],"deppos")
    ans = 2×2

     1     1
     2     0

    Obtain the indices of the parents of the nodes whose indices are 1, 7, and 14.

    nodepar(t,[1;7;14])
    ans = 3×1

     0
     3
     6

    Input Arguments

    collapse all

    Tree, specified as an ntree, dtree, or wptree object.

    Tree nodes, specified as a column vector that contains indices of the nodes or a matrix that contains the depths and positions of the nodes. If specified as a matrix, n(i,1) and n(i,2) are the depth and position, respectively, of the ith node.

    Data Types: double

    Output Arguments

    collapse all

    Tree nodes, returned as a column vector or matrix. If f is a vector, f contains node indices. If f is matrix, f(i,1) and f(i,2) are the depth and position, respectively, of the ith node.

    Version History

    Introduced before R2006a
