disp

WPTREE information

collapse all in page

    Syntax

    disp(T)

    Description

    disp(T) displays the contents of the wavelet packet tree T.

    example

    Examples

    collapse all

    Open Live Script

    Create a wavelet packet tree.

    x = randn(1,1000);
t = wpdec(x,3,"db2");

    Merge the nodes with indices 3 and 5. Plot the modified tree.

    t = nodejoin(t,3);
t = nodejoin(t,5);
fig = plot(t);

    Figure contains 2 axes objects and other objects of type uimenu. Axes object 1 with title Tree Decomposition contains 21 objects of type line, text. Axes object 2 with title data for node: 0 or (0,0). contains an object of type line.

    Programmatically, in Node Label, change the selected item from Depth_Position to Index.

    plot(t,"setNodeLabel",fig,"Index")

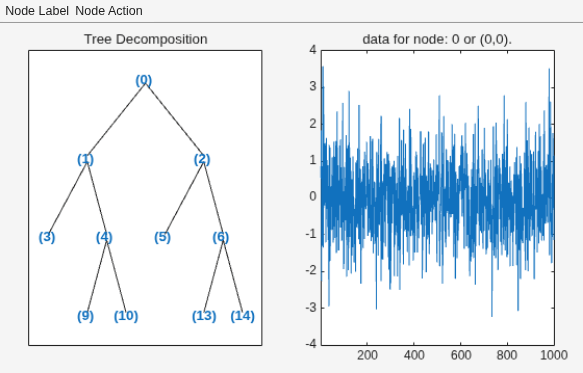

    Figure contains 2 axes objects and other objects of type uimenu. Axes object 1 with title Tree Decomposition contains 21 objects of type line, text. Axes object 2 with title data for node: 0 or (0,0). contains an object of type line.

    Display the contents of the modified tree.

    disp(t)

Wavelet Packet Object Structure
===============================
Size of initial data :      [1  1000]
Order                :      2
Depth                :      3
Terminal nodes       :      [3   9  10   5  13  14]
------------------------------------------------
Wavelet Name               :db2
Low Decomposition filter   :[-0.1294     0.2241     0.8365      0.483]
High Decomposition filter  :[ -0.483     0.8365    -0.2241    -0.1294]
Low Reconstruction filter  :[  0.483     0.8365     0.2241    -0.1294]
High Reconstruction filter :[-0.1294    -0.2241     0.8365     -0.483]
------------------------------------------------
Entropy Name               :shannon
Entropy Parameter          :0
------------------------------------------------

    Input Arguments

    collapse all

    Wavelet packet tree, specified as a wptree object.

    Example: T = wpdec(rand(1,1000),2,"db2")
