Generate HDL Code

Step 4 of 6 in Target NI USRP Radios Workflow

• 3
• 4
• 5

HDL IP core generation enables you to generate a shareable and reusable IP core module from a Simulink^® model automatically. HDL Coder™ generates HDL code from the Simulink blocks. By using a reference design, you can create an IP core that integrates into the radio hardware.

After you are satisfied with the simulation behavior of the hardware subsystem, generate the HDL IP core and integrate it with the SDR reference design.

Configure Output Options

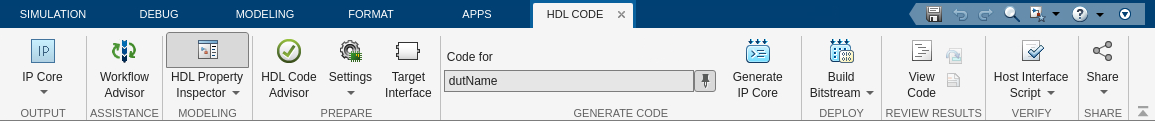

The workflow uses the HDL Code tab in the Simulink Toolstrip to access the HDL code generation options and initiate code generation. The Simulink Toolstrip contains contextual tabs that appear only when you need to access them. To access the HDL Code tab, open the HDL Coder app from the Apps tab on the Simulink Toolstrip.

• In the Output options, select IP Core.

• Make sure that the user logic subsystem in your model, the design under test (DUT), is pinned in the Generate Code options. To pin this selection, select the DUT in your Simulink model and click the pin icon.

Configure HDL Code Generation Settings

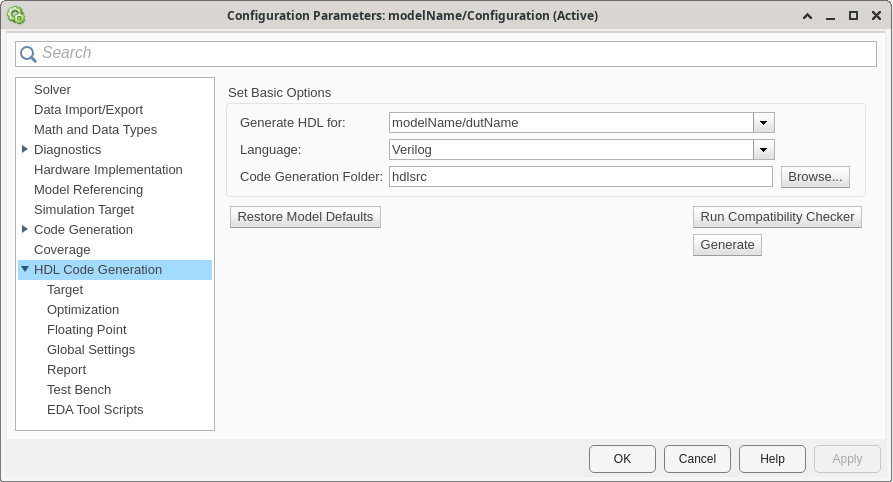

Open the Configuration Parameters window by clicking Settings in the HDL Code tab.

Navigate to the HDL Code Generation pane.

Configure the basic options with these settings.

Parameter	Description	Value	Notes
Generate HDL for	Select the subsystem or model for which HDL code is generated.	Path to top level subsystem in root model	The list includes the path to the root model and to subsystems in the model. The default is the top level subsystem in the root model.
Language	Specify the HDL code generation language.	Verilog (default)	The generated HDL code complies with the Verilog-2001 (IEEE® 1364-2001) standard. Verilog is the only supported language for this workflow.
Code Generation Folder	Specify the target folder for the generated HDL code.	prj/hdlsrc (default)	The default target folder is a subfolder of your working folder, named hdlsrc.

Navigate to the Target pane.

Configure the Target settings according to your requirements.

Workflow Settings

Parameter	Description	Value	Notes
Workflow	Specify the target workflow.	IP Core Generation (default)	The setting for this parameter determines the available parameters in the Target pane.
Project Folder	Specify the folder for workflow-specific files.	' ' (default)	The software stores any created files in this folder, such as the generated IP core or synthesis tool project files. It places the generated HDL code in the directory specified by Code Generation Folder.

Tool and Device Settings

Parameter	Description	Value	Notes
Target Platform	Select the target platform for the generated HDL code.	USRP E320 (since R2025a) | USRP N310 | USRP N320 | USRP N321 | USRP X310 | USRP X410	For more information, see Supported Radio Devices.
Synthesis Tool	Select the synthesis tool for targeting the generated HDL code.	Xilinx Vivado	For more information about the installation requirements, see Install Vivado and Apply Patch.

Reference Design Settings

Parameter		Description	Value	Notes
Reference Design		Specify the reference FPGA image for your design (since R2025a).	1G: 1 GigE | XG: 10 GigE	Options available when Target Platform = USRP E320. Select the option that corresponds to the Ethernet connection you have set up between the host and your radio. For more information about setting up a USRP™ E320 radio for 10 Gigabit Ethernet, see Set Up USRP E320 Radio for 10 Gigabit Ethernet.
			HG: 1 GigE, 10 GigE	Option when Target Platform = USRP N310 | USRP N320 | USRP N321 | USRP X310.
			X1_200: 10 GigE	Option when Target Platform = USRP X410.
Reference Design Tool Version		Specify the Synthesis Tool version.	2021.1 (default) (since R2025a)	Family, Device, Package, and Speed are populated with default values for this tool version.
Reference Design Parameters	Daughterboard (since R2026a)	Specify the daughterboard type on the USRP X310 radio.	UBX-160 (default)	USRP X310 radio is configured with one or two UBX-160 daughterboards.
			TwinRX	USRP X310 radio is configured with one or two TwinRX daughterboards.
	Number of Input Streams	Specify the number of data streaming input ports on the DUT.	Positive integer	N/A
	Number of Output Streams	Specify the number of data streaming output ports on the DUT.	Positive integer	N/A
	Sample Rate	Specify the baseband sample rate in S/s.	Positive numeric scalar	The value can be any supported master clock rate (MCR) value divided by any supported interpolation or decimation factor. For details, see Determine Radio Device Capabilities. If you set the sample rate equal to an MCR and set the Reference Design Optimization parameter to Moderate, High, or Maximum, you cannot update this value later. Otherwise, you can update the sample rate after deployment using the SampleRate property on the usrp System object™.
	Reference Design Optimization (since R2026a)	Specify the level of optimization of reference design resources. The level you choose determines how much flexibility you have at run-time. Lower levels or optimization increase the overhead associated with the reference design, which can contribute to complex designs failing to meet timing constraints.	None	Maintain maximum flexibility at run-time: Use additional transmit and capture antennas to exercise your DUT. Change the antennas connected to the DUT. Change the sample rate.
			Moderate	Remove some run-time flexibility but maintain full debugging capability: Use additional transmit and capture antennas to exercise your DUT. All antennas that are not connected to the DUT are available for debugging. The DUT antenna connections are fixed based on the options you configure in the interface mapping table. The sample rate is fixed if you set Sample Rate to an MCR value.
			High	Remove some run-time flexibility but maintain some debugging capability: Use one additional transmit antenna and one additional capture antenna to exercise your DUT. The DUT antenna connections are fixed based on the options you configure in the interface mapping table. The sample rate is fixed if you set Sample Rate to an MCR value.
			Maximum	Remove run-time flexibility and debugging capability: Remove the capability to use transmit and capture antennas for debugging. The DUT antenna connections are fixed based on the options you configure in the interface mapping table. The sample rate is fixed if you set Sample Rate to an MCR value.
	DUT Clock Source (since R2024b)	Specify the clock source for the DUT.	Radio (default)	The DUT is clocked at the MCR used by the radio to achieve the specified sample rate. This value is not tied to the Target Frequency parameter value, which is set to the maximum supported MCR of the radio.
			Custom	You can specify a user-defined DUT clock frequency with the Target Frequency parameter. Selecting this option generates a custom clock for your DUT using the Vivado® Clocking Wizard.
	Stream Port FIFO Length	Specify the buffer length in samples for each DUT input and output data streaming port.	Auto (default)	The software calculates the buffer length based on the target frequency and the maximum valid MCR of the radio.
			Integer in the range 8 to 2048	The buffer length is set to the specified value.
	Register Port FIFO Length	Specify the buffer length in samples for each DUT register port.	Auto (default)	The software calculates the buffer length based on the target frequency and the maximum valid MCR of the radio.
			Integer in the range 8 to 2048	The buffer length is set to the specified value.

Objectives Settings

Parameter	Description	Value	Notes
Target Frequency	Specify the DUT clock frequency for HDL synthesis.	Maximum MCR of the target radio device (default)	If DUT Clock Source is set to Radio, you cannot change this value from the maximum supported MCR of your radio. This value is the frequency used for HDL synthesis and does not set the value of the radio clock, which can be any supported MCR value of the radio and is selected based on the sample rate.
		Positive numeric scalar (since R2024b)	If DUT Clock Source is set to Custom, set this value to any frequency in MHz within the supported target frequency range for the radio device. The valid range depends on the radio. Radio Device Minimum DUT Clock Frequency Maximum DUT Clock Frequency USRP E320 6.25 MHz 741 MHz USRP N310, N320, N321, or X310 4.69 MHz 709 MHz USRP X410 6.25 MHz 667 MHz

Map Target Interfaces

Use the IP Core editor to map the DUT ports to IP core interfaces. Open the Interface Mapping table by clicking Target Interface in the HDL Code tab.

To compile your model and populate the table with your user logic, click the Reload IP core settings button: . If you make changes to your model, use this button again to repopulate the DUT ports and their data types.

The table automatically populates based on the port names in your model. For example, a port named Data_In in this example is automatically mapped to a Simplified AXI4-stream Input0 interface, and is assigned as Data in the Interface Mapping column. If the table is not automatically populated for your design, or if the port mapping is incorrect, manually assign the Interface and Interface Mapping columns.

When you have populated the table, validate the interface mapping by clicking the Validate IP core settings button: .

Map Register Interfaces

Assign any register input as a Write Register and any register output as a Read Register.

Map Data Streaming Inputs

For each DUT port that corresponds to the first data streaming input, populate the Interface column with Simplified AXI4-stream Input0 (since R2026a). For each consecutive data streaming input, increment the appended number. For example, assign each DUT port that corresponds to the fourth data streaming input as Simplified AXI4-stream Input3.

For each data streaming interface, populate the Interface Mapping column with these values:

• Data

• Valid

• Last

• Ready

• EoB (optional)

• HasTime (optional)

• TimeStamp (optional)

The non-optional values must be assigned for every interface. For more information about how to configure data streaming interfaces in your DUT model, see Streaming Interface Guidelines.

For each data streaming input port, Data, open the Set Interface Options window by clicking Options. Assign a source connection from the following options.

Source Connection	Description
Antenna string that corresponds to a capture antenna on the radio, for example, RF0:RX2	The streaming input port receives samples from the specified radio antenna. If the Reference Design Optimization parameter is set to None, you can update the antenna after deployment using the DUTInputAntennas property on the usrp System object. Otherwise, the antenna connection is fixed.
Host	The streaming input port receives samples from the host.
PL DDR Buffer	The streaming input port receives samples from the host through the PL DDR buffer, which ensures contiguous samples.

Assign the stream buffer size as a number of samples, where each sample is 4 bytes. The default is the maximum possible buffer size. For optimal usage of FPGA memory resources, set the buffer size to a power of two.

Map Data Streaming Outputs

For each DUT port that corresponds to the first data streaming output, populate the Interface column with Simplified AXI4-stream Output0. For each consecutive data streaming output, increment the appended number. For example, assign each DUT port that corresponds to the fourth data streaming output as Simplified AXI4-stream Output3.

For each data streaming interface, populate the Interface Mapping column with these values:

• Data

• Valid

• Last

• Ready

• EoB (optional)

• HasTime (optional)

• TimeStamp (optional)

The non-optional values must be assigned for every interface. For more information about how to configure data streaming interfaces in your DUT model, see Streaming Interface Guidelines.

For each data streaming output, open the Set Interface Options window by clicking Options. Assign a sink connection from the following options.

Source Connection	Description
Antenna string that corresponds to a transmit antenna on the radio, for example, RF0:TX/RX	The streaming output port sends data to the radio front end for transmission using the specified radio antenna. If the Reference Design Optimization parameter is set to None, you can update the antenna after deployment using the DUTOutputAntennas property on the usrp System object. Otherwise, the antenna connection is fixed.
Host	The streaming output port sends samples to the host.
PL DDR Buffer	The streaming output port sends samples to the host through the PL DDR buffer, which ensures contiguous samples.

Configure IP Core Name

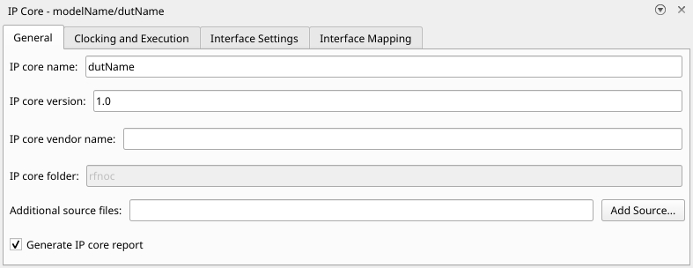

In the IP Core editor, navigate to the General tab. Ensure that IP core name contains only alphanumeric characters (since R2026a).

Generate IP Core

Note

This step is handled automatically in Generate Bitstream and Program FPGA. Use this step to generate the IP core files without building a bitstream.

To generate an IP core for your user logic without building a bitstream, in the HDL Code tab, click Generate IP Core. This generates an RFNoC compatible IP core that you can integrate into a design outside of MATLAB^® and Simulink. The IP core files are generated in a folder named rfnoc within the project folder that you set up in the Configure HDL Code Generation Settings step.
