LOAD TEST ON TRANSFORMER

Virtual lab: Load test on Transformer
22 download
Aggiornato 26 nov 2023

Visualizza la licenza

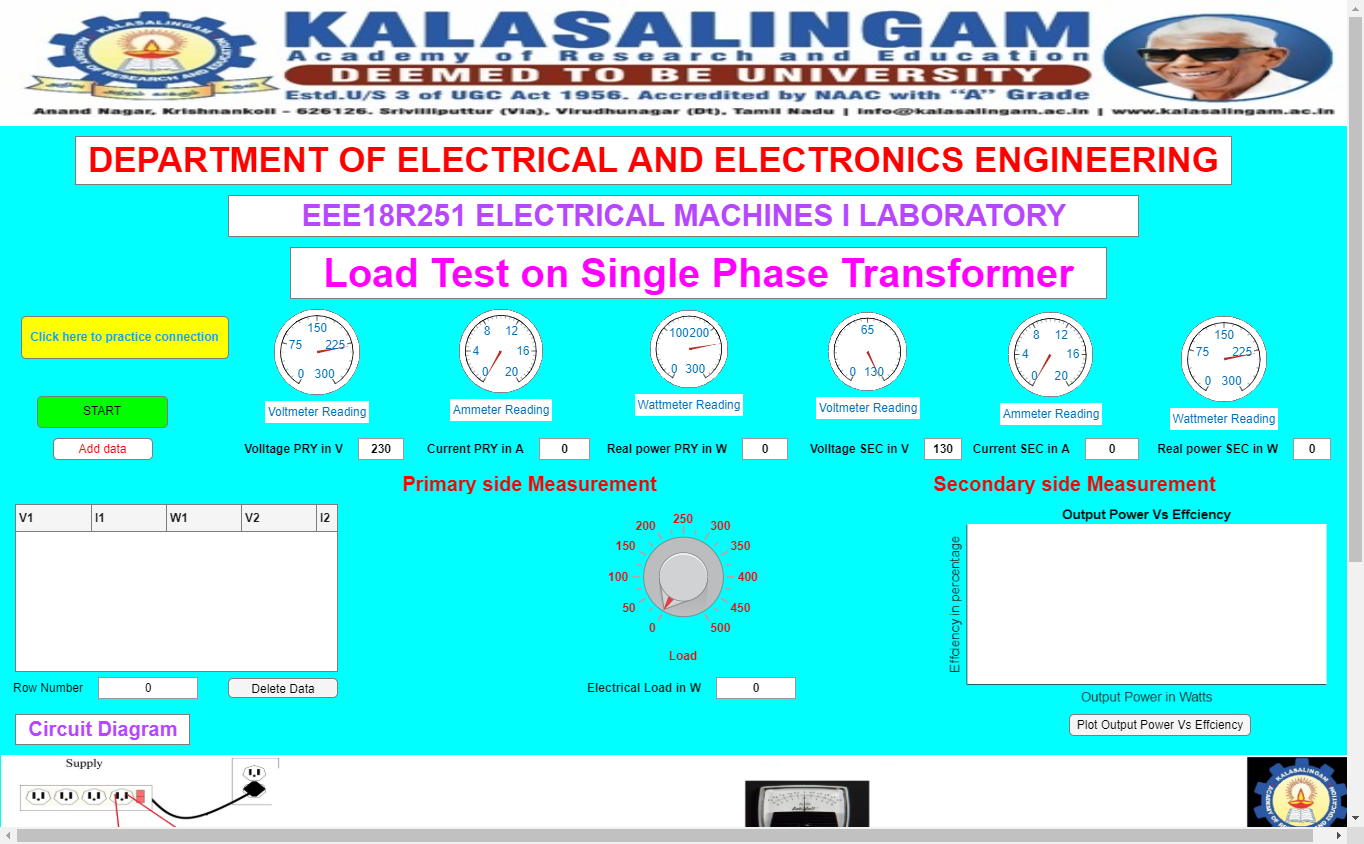

This virtual laboratory is designed to illustrate the Load Test on Transformer. Follow the steps below to conduct the experiment:
  1. Click the "Start" button to initiate the experiment.
  2. Apply electrical load by using Electrical load tab.
  3. Observe the measurement dial for current, voltage on Primary and secondary side.
  4. Click the "Add Data" button to record the current observations in the table.
  5. Repeat the process for different electrical loads and add the corresponding data to the table.
  6. The table displays efficiency and output power values.
  7. To visualize the relationship between Output Power and Efficiency, click the "Output Power Vs Efficiency" tab.
  8. To remove any unwanted data from the table, input the row number and click the "Delete" button.
  9. Practice connecting components by clicking the "Click Here to Practice the Connection" tab.
