T-type inverter

Versione 1.0.0 (54,2 KB) da Abdelrahman Farghly
A T-Type Inverter is a three-level neutral point clamped (NPC) inverter topology that improves efficiency
0.0
(0)
123 download
Aggiornato 10 mag 2025

Visualizza la licenza

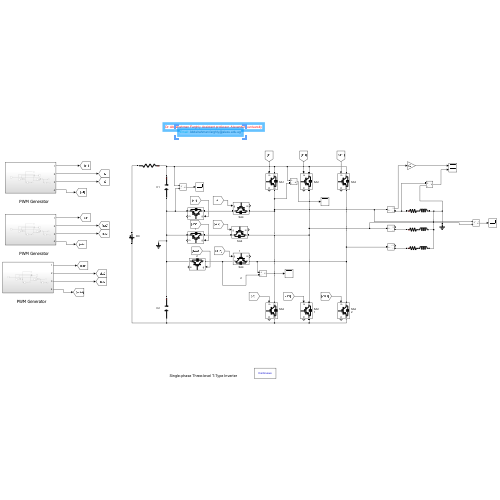

T-Type Inverter Circuit Description
Each phase leg consists of four switches and two diodes:✅ Structure:
  • Two upper switches (S1 and S2)
  • One middle switch (S3) – the clamping leg
  • Two diodes to the neutral point (split capacitor center)

Cita come

Abdelrahman Farghly (2025). T-type inverter (https://it.mathworks.com/matlabcentral/fileexchange/181116-t-type-inverter), MATLAB Central File Exchange. Recuperato .

Compatibilità della release di MATLAB
Creato con R2024b
Compatibile con qualsiasi release
Compatibilità della piattaforma
Windows macOS Linux
