Closed Universe

Versione 1.1 (5,56 KB) da Giampiero Campa
Wraps the input vector into a given hypercuboid
0.0
(0)
2,1K download
Aggiornato 20 mag 2023
Visualizza la licenza su GitHub

simulink-wrapper-block

Wraps the input vector into a given hypercuboid

View Closed Universe on File Exchange

Open in MATLAB Online

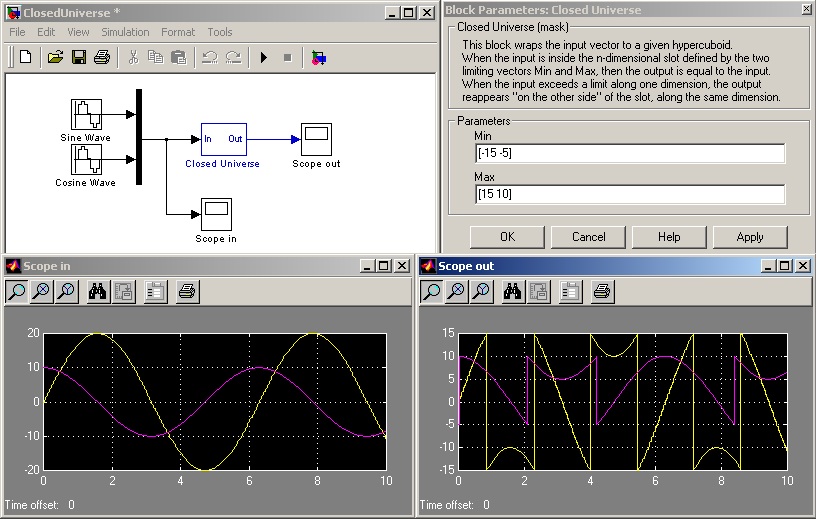

When the input is inside the n-dimensional box defined by the two limiting vectors Min and Max, then the output is equal to the input. When the input exceeds a limit along one dimension, the output reappears "on the other side" of the box, along the same dimension.

This block is especially useful if you want to keep the evolution of a given variable in a certain range, for example, when displaying images with the virtual reality toolbox, it is better to keep the object positions within certain limits, otherwise numerical problems may prevent a correct visualization.

Cita come

Giampiero Campa (2024). Closed Universe (https://github.com/giampy1969/simulink-wrapper-block/releases/tag/v1.1), GitHub. Recuperato .

Compatibilità della release di MATLAB
Creato con R11.1
Compatibile con qualsiasi release
Compatibilità della piattaforma
Windows macOS Linux
