savedata
Simulink block that stores data in memory and saves them to a file at the end of the simulation.
Al momento, stai seguendo questo contributo
- Vedrai gli aggiornamenti nel tuo feed del contenuto seguito
- Potresti ricevere delle email a seconda delle tue preferenze per le comunicazioni
simulink-savedata-block

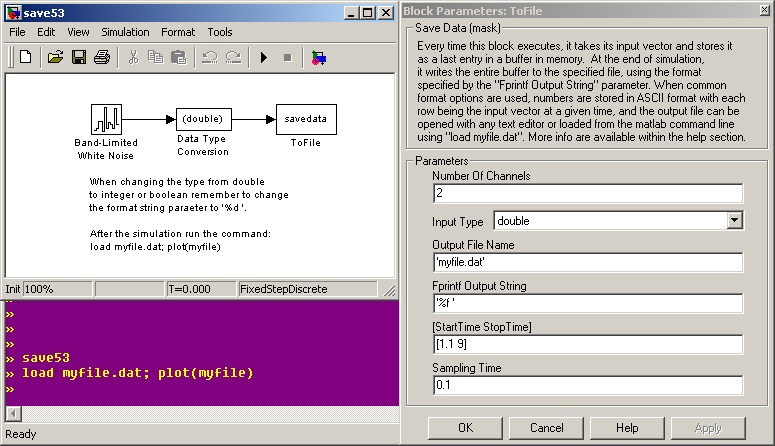

Simulink® block that stores data in memory and saves them to a file at the end of the simulation.
This block is similar to the "To File" original simulink block, except for the following points:
-
It does not access the file system during the simulation, in fact it collects data in memory and saves them to file only when the simulation is over. This is important for real time systems, where normally access to the file system by processes running in real time has to be avoided.
-
It can save any type of data instead of just doubles.
-
It has a lot of flexibility in saving the data, different format and precisons can be selected form the block mask.
-
When using the %d, %f or %e options, the file is an ASCII file that can be opened with any text editor as well as easily loaded into matlab or excel.
This code is derived from an original s-function written by G.Campa and S.Gururajan for simulink schemes running in real time under RTAI-Linux.
Cita come
Giampiero Campa (2026). savedata (https://github.com/giampy1969/simulink-savedata-block/releases/tag/v1.1.0), GitHub. Recuperato .
Informazioni generali
Compatibilità della release di MATLAB
- Compatibile con qualsiasi release
Compatibilità della piattaforma
- Windows
- macOS
- Linux
| Versione | Pubblicato | Note della release | Action |
|---|---|---|---|
| 1.1.0 | See release notes for this release on GitHub: https://github.com/giampy1969/simulink-savedata-block/releases/tag/v1.1.0 |
||
| 1.0.0.0 | Recompiled the s-function with matlab 7.1 so that everything works fine with newer versions requiring the .mexw32 extension. The .dll files is retained to the benefit users working with versions prior to 7.1, other users may delete it. |
