campitch

Set or query pitch angle of camera for Site Viewer

Since R2025a

Syntax

campitch(viewer,pitch)

campitch(viewer)

pitchOut = campitch(___)

Description

campitch(viewer,pitch) sets the pitch angle of the camera for the specified Site Viewer. Setting the pitch angle tilts the camera up or down. For more information about how camera rotations affect your view of the Site Viewer, see How Camera Orientation Affects View.

campitch(viewer) displays the pitch angle of the camera.

pitchOut = campitch(___) returns the pitch angle of the camera. You can return the pitch angle using any of the input argument combinations from the previous syntaxes.

Examples

Change Pitch Angle of Camera for 3-D Globe

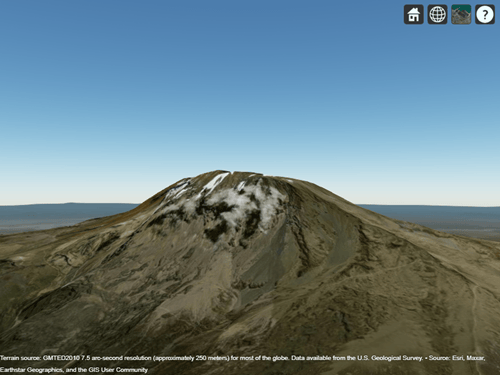

Create a Site Viewer. By default, Site Viewer displays a 3-D globe using satellite imagery. Position the camera near Mount Kilimanjaro by specifying a latitude, longitude, and ellipsoidal height. Set the pitch angle to 0 degrees, so that the camera points across the summit.

viewer = siteviewer;
campos(viewer,-3.1519,37.3561,5500)
campitch(viewer,0)

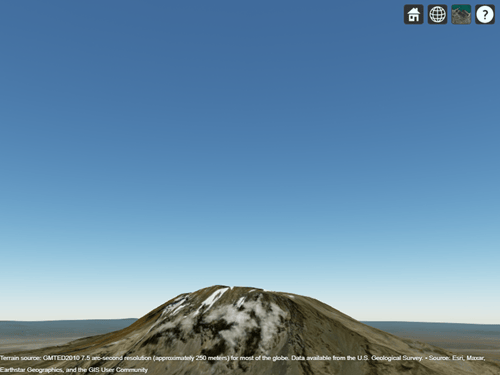

Tilt the camera up by changing the pitch angle to 15 degrees.

campitch(viewer,15)

Change Pitch Angle of Camera for 3-D Model

Create a Site Viewer that displays a 3-D model from an STL file. The file models a small conference room with one table and four chairs.

viewer = siteviewer(SceneModel="conferenceroom.stl");

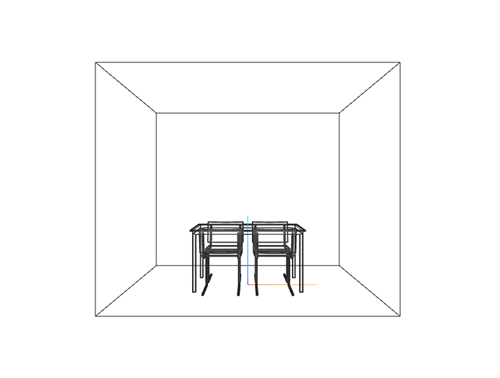

Query the pitch angle.

pitchOut = campitch(viewer)

pitchOut =
0

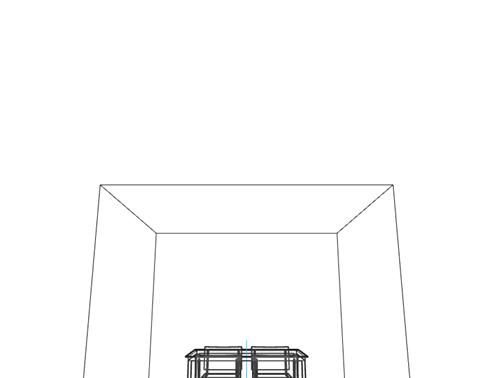

Tilt the camera up by adding 15 degrees to the pitch angle.

pitch = pitchOut + 15;
campitch(viewer,pitch)

Preserve Camera View

When you display data in a Site Viewer, the Site Viewer focuses on the data by moving the camera. To preserve the camera view, before you plot the data, query the camera position and camera angles. Then, after you plot the data, reset the camera position and camera angles.

Create a Site Viewer that displays buildings in Manhattan. For more information about the OpenStreetMap® file, see [1]. Navigate to an area of interest by interacting with the Site Viewer.

viewer = siteviewer(Buildings="manhattan.osm",Basemap="openstreetmap");

Query the position of the camera and the heading, pitch, and roll angles of the camera. Assign each value to a variable.

[lat,lon,height] = campos(viewer);
heading = camheading(viewer);
pitch = campitch(viewer);
roll = camroll(viewer);

Create and display a transmitter site. Note that the camera zooms to the site.

tx = txsite(Latitude=40.704,Longitude=-74.0155);
show(tx)

Reset the view using the stored camera position and camera angles.

campos(viewer,lat,lon,height)
camheading(viewer,heading)
campitch(viewer,pitch)
camroll(viewer,roll)

[1] The OpenStreetMap file is downloaded from https://www.openstreetmap.org, which provides access to crowd-sourced map data all over the world. The data is licensed under the Open Data Commons Open Database License (ODbL), https://opendatacommons.org/licenses/odbl/.

Input Arguments

viewer — Site Viewer

siteviewer object

Site Viewer, specified as a siteviewer object.¹

pitch — Pitch angle of camera, in degrees

numeric scalar in range [–90, 90]

Pitch angle of the camera, in degrees, specified as a numeric scalar in the range [–90, 90].

Output Arguments

pitchOut — Pitch angle of camera, in degrees

numeric scalar

Pitch angle of the camera, in degrees, returned as a numeric scalar.

More About

How Camera Orientation Affects View

You can control the view of a Site Viewer by changing the heading, pitch, and roll angles of the camera. The interpretation of the angles depends on the CoordinateSystem property of the Site Viewer object.

Geographic Coordinate System

When the CoordinateSystem property of the Site Viewer object is "geographic", you can control the view of the 3-D globe by changing the heading, pitch, and roll angles.

• Heading — Rotate the camera about its z-axis, which rotates the view left or right. Rotate the view to the right by increasing the heading angle.

• Pitch — Rotate the camera about its y-axis, which tilts the view up or down. Tilt the view up by increasing the pitch angle.

• Roll — Rotate the camera about its x-axis, which spins the camera around its lens. Spin the view counterclockwise by increasing the roll angle.

Site Viewer references the camera to the globe using a north-east-down (NED) coordinate system. When the heading, pitch, and roll angles of the camera are zero, the camera sits on a plane that is parallel to the tangent plane of the globe at the current latitude and longitude. For more information about NED coordinate systems, see Comparison of 3-D Coordinate Systems (Mapping Toolbox).

Cartesian Coordinate System

When the CoordinateSystem property of the Site Viewer object is "cartesian", you can control the view of the 3-D model by changing the heading and pitch angles. Changing the roll angle is not supported.

• Heading — Rotate the camera about its z-axis, which rotates the view left or right. Rotate the view to the right by decreasing the heading angle.

• Pitch — Rotate the camera about its y-axis, which tilts the view up or down. Tilt the view up by increasing the pitch angle.

Site Viewer references the camera to the scene using a right-handed Cartesian coordinate system, where the z-axis points up. When the heading and pitch angles of the camera are zero, the camera sits on a plane that is parallel to the xy-plane of the scene.

Tips

When the pitch angle is near –90 or 90 degrees, the camera loses one rotational degree of freedom. As a result, when you change the roll angle, the heading angle might change instead. This phenomenon is called gimbal lock. To avoid the effects of gimbal lock, call the camheading function instead of the camroll function.
