Optimize Custom Antenna using TR-SADEA Optimizer

Since R2025a

This example shows how to optimize a custom antenna using TR-SADEA optimizer. The example maxmizes gain of a custom antipodal vivaldi antenna at 5 GHz, while limiting the return loss to -10 dB or less. TR-SADEA belongs to the class of Surrogate-assisted optimizers that use mathematical models to replace time-consuming EM simulations. This enables faster optimization through efficient exploration of search space.

Define Geometry Parameters of Antipodal Vivaldi Antenna

baseDimensions = struct;
baseDimensions.ROpening = 30; % Opening rate of taper
baseDimensions.WAperture = 0.024; % Width of the aperture in meter
baseDimensions.WStrip = 0.0021; % Width of the feed line in meter
baseDimensions.LInnerTaper = 0.187; % Length of inner edge taper in meter
baseDimensions.LOuterTaper = 0.08; % Length of outer edge taper in meter
baseDimensions.WGroundPlane = 0.05; % Width of the ground plane in meter
baseDimensions.LBoard = 0.2020; % Length of the printed circuit board in meter
baseDimensions.WBoard = 0.12; % Width of the printed circuit board in meter
baseDimensions.N = 30; % Number of points along taper

Select taper opening rate 'ROpening', aperture width 'WAperture', and feed width 'Wstrip' as design variables for the optimization. Create the antipodal Vivaldi antenna using createVivaldi function defined in the Supporting Functions. View the antenna.

designVariables = [baseDimensions.ROpening,baseDimensions.WAperture,baseDimensions.WStrip];
ca = createVivaldi(designVariables,baseDimensions);
figure
show(ca)
title("Antipodal Vivaldi Antenna")

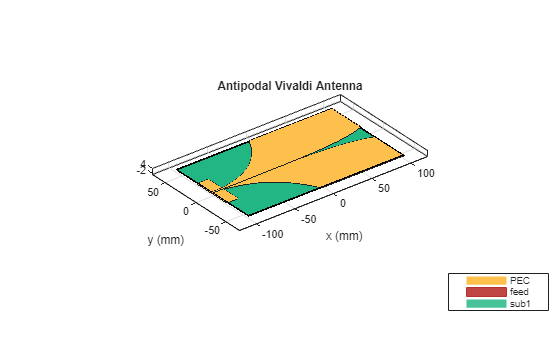

Figure contains an axes object. The axes object with title Antipodal Vivaldi Antenna, xlabel x (mm), ylabel y (mm) contains 5 objects of type patch, surface. These objects represent PEC, feed, sub1.

Plot Radiation Pattern

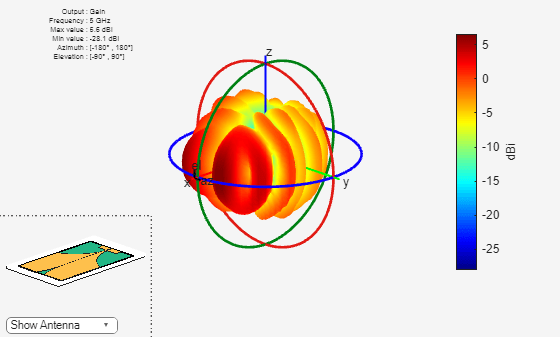

Plot the radiation pattern of this antenna at 5 GHz and observe the gain. The current design yields a maximum gain of around 6 dBi.

pattern(ca,5e9);

Figure contains 2 axes objects and other objects of type uicontrol. Axes object 1 contains 5 objects of type patch, surface. This object represents sub1. Hidden axes object 2 contains 17 objects of type surface, line, text, patch. This object represents sub1.

Plot Reflection Coefficient

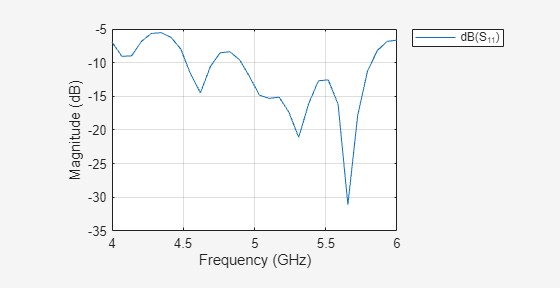

Plot the reflection coefficient of the antenna in the 4 to 6 GHz frequency band with a reference impedance of 50 ohms.

freq = 1e9;
freqRange = linspace(freq*4,freq*6,30);
sparam = sparameters(ca,freqRange);
rfplot(sparam);

Figure contains an axes object. The axes object with xlabel Frequency (GHz), ylabel Magnitude (dB) contains an object of type line. This object represents dB(S_{11}).

Optimize Antenna for Maximum Gain

Use the OptimizerTRSADEA object to optimize this antenna. The OptimizerTRSADEA object gives you access to the TR-SADEA optimizer provided in the Antenna Tolbox(TM). To initialize the OptimizerTRSADEA object, provide lower and upper bounds of the chosen design variables as input argument to the OptimizerTRSADEA object creation function.Use the customEvaluation function defined in the Supporting Functions to set the evaluation criteria for optimization.Use the optimizeWithPlots function with 10 iterations to optimize the antenna.

s = OptimizerTRSADEA([20 0.03 0.002;30 0.11 0.003]);
s.CustomEvaluationFunction = @customEvaluation;
s.optimizeWithPlots(10);

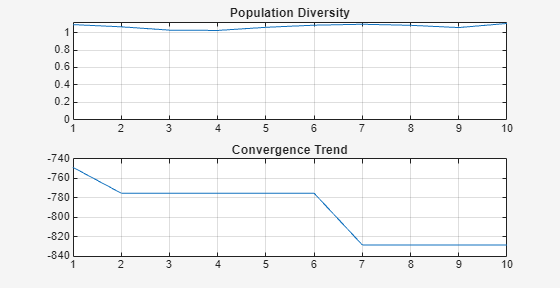

Figure contains 2 axes objects. Axes object 1 with title Population Diversity contains an object of type line. Axes object 2 with title Convergence Trend contains an object of type line.

Use the getBestMemberData function to fetch the optimized values for the design variables.

bestData = s.getBestMemberData;
optimized_values = bestData.member;

Use the optimized values of design variables to create the optimized antenna.

ca = createVivaldi(optimized_values,baseDimensions);
figure
show(ca)
title("Optimized Antipodal Vivaldi Antenna")

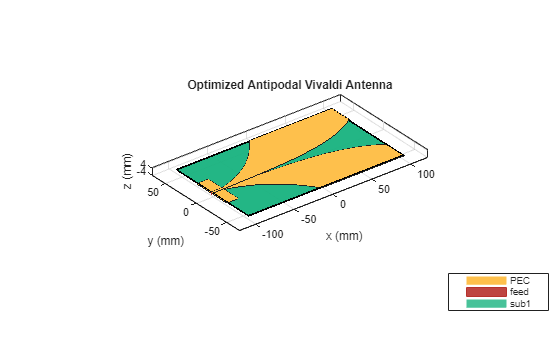

Figure contains an axes object. The axes object with title Optimized Antipodal Vivaldi Antenna, xlabel x (mm), ylabel y (mm) contains 5 objects of type patch, surface. These objects represent PEC, feed, sub1.

Plot Radiation Pattern of Optimized Antenna

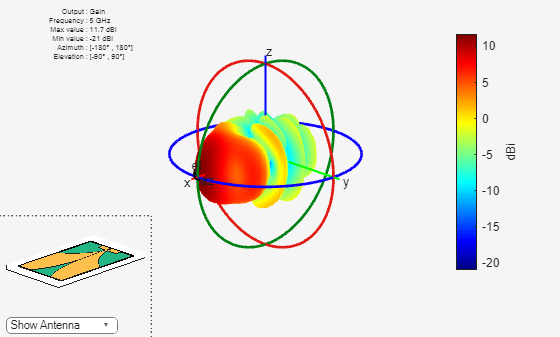

Plot the radiation pattern of the optimized antenna at 5 GHz, and observe the gain. The optimized design yields an improvemnt in the gain over the original design.

pattern(ca,5e9);

Figure contains 2 axes objects and other objects of type uicontrol. Axes object 1 contains 5 objects of type patch, surface. This object represents sub1. Hidden axes object 2 contains 17 objects of type surface, line, text, patch. This object represents sub1.

Plot Reflection Coefficient of Optimized Antenna

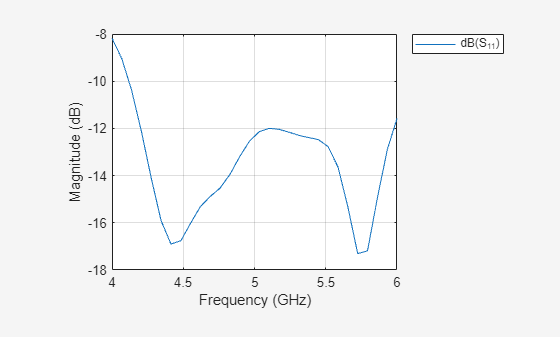

Plot the reflection coefficient of the optimized antenna in the 4 to 6 GHz frequency band with a reference impedance of 50 ohms. Return loss is mostly within 10 dB and has improved compared to the initial design.

freq = 1e9;
freqRange = linspace(freq*4, freq*6, 30);
sparam = sparameters(ca,freqRange);
rfplot(sparam);

Figure contains an axes object. The axes object with xlabel Frequency (GHz), ylabel Magnitude (dB) contains an object of type line. This object represents dB(S_{11}).

Get Optimization data from the object

Get the iteration data. The below columns in the iteration members represent the 'ROpening', 'WAperture', and 'Wstrip' design variable respectively.

iterData = s.getIterationData;
IterationMembers = iterData.members
IterationMembers = 10×3

   20.4302    0.0405    0.0021
   21.0351    0.0318    0.0021
   24.7859    0.0390    0.0022
   26.0689    0.0318    0.0021
   20.2303    0.0823    0.0020
   20.2042    0.0381    0.0030
   20.4302    0.0622    0.0027
   26.6422    0.0492    0.0029
   23.5453    0.1077    0.0024
   20.3114    0.0318    0.0030

Get the surrogate model data (initial population). The below columns in the initialization members represent the 'ROpening', 'WAperture', and 'Wstrip' design variable respectively.

initialData = s.getInitializationData;
InitializationMembers = initialData.members
InitializationMembers = 12×3

   28.1789    0.0545    0.0026
   23.2548    0.0884    0.0027
   23.4392    0.0416    0.0029
   21.5945    0.0659    0.0021
   27.1936    0.0610    0.0028
   25.0813    0.0978    0.0022
   21.8987    0.0947    0.0025
   28.7891    0.1035    0.0023
   24.9646    0.0318    0.0021
   29.9707    0.0703    0.0029
   20.1313    0.0773    0.0024
   26.6422    0.0488    0.0024
      ⋮

Check if the algorithm has converged. The below flag returns false. Hence it can be concluded that the algorithm has not converged yet. Increasing the iterations might provide a better antenna in some use cases.

convergence = s.isConverged
convergence = logical
   0

Get the number of times the customEvaluation function has been evaluated.

NumberOfEvaluations = s.getNumberOfEvaluations
NumberOfEvaluations =
27

Supporting Functions

This section defines the supporting createVivaldi and customEvaluation functions.

Create custom antipodal Vivaldi antenna

Create geometry of the Vivaldi antipodal antenna.

function ca = createVivaldi(designVariables,baseDimensions)
    % Define geometry parameters
    ROpening = designVariables(1); % Opening rate of taper
    WAperture = designVariables(2); % Width of the aperture in meter
    WStrip = designVariables(3); % Width of the feed line in meter
    LInnerTaper = baseDimensions.LInnerTaper; % Length of inner edge taper in meter
    LOuterTaper = baseDimensions.LOuterTaper; % Length of outer edge taper in meter
    WGroundPlane = baseDimensions.WGroundPlane; % Width of the ground plane in meter
    LBoard = baseDimensions.LBoard; % Length of the printed circuit board in meter
    WBoard = baseDimensions.WBoard; % Width of the printed circuit board in meter
    N = baseDimensions.N; % Number of points along taper

    % P1(x1,y1) - point at which inner taper starts
    % P2(x2,y2) - point at which inner taper ends
    x2 = LBoard/2;
    y2 = WAperture/2;
    x1 = x2 -LInnerTaper;
    y1 = -WStrip/2;
    % P3(x3,y3) - point at which outer taper starts
    % P4(x4,y4) - point at which outer taper ends
    x4 = x1 + LOuterTaper;
    y4 = WBoard/2;
    x3 = x1;
    y3 = -y1;

    % Compute coefficients for taper equation
    a = y2 - y1;
    b = exp(ROpening*x2) - exp(ROpening*x1) ;
    c = y1*exp(ROpening*x2) - y2*exp(ROpening*x1) ;
    c1 = a/b;
    c2 = c/b;
    a1 = y4 - y3;
    b1 = exp(ROpening*x4) - exp(ROpening*x3) ;
    ca = y3*exp(ROpening*x4) - y4*exp(ROpening*x3) ;
    c3 = a1/b1;
    c4 = ca/b1;

    % Discretize taper length
    xInner = linspace(x1,x2,N);
    xOuter = linspace(x3,x4,N);

    % Equation for exponential taper
    yInner = c1*exp(ROpening*xInner) + c2;
    yOuter = c3*exp(ROpening*xOuter) + c4;

    % Assemble curve co-ordinates
    pointsInnerTaper = [xInner;yInner;...
        zeros(size(xInner))];
    pointsOuterTaper = [xOuter;yOuter;...
        zeros(size(xOuter))];
    vivaldiBoundary_pos_InnerTaper = pointsInnerTaper;
    vivaldiBoundary_pos_OuterTaper = pointsOuterTaper;
    vivaldiboundary_pos = [( vivaldiBoundary_pos_InnerTaper)   ...
        [LBoard/2 WBoard/2 0]'    ...
        fliplr(vivaldiBoundary_pos_OuterTaper) ] ;
    vivaldiboundary_neg = vivaldiboundary_pos;
    vivaldiboundary_neg(2,:) = -1.*vivaldiboundary_pos(2,:);
    vivaldiboundary_pos = vivaldiboundary_pos';
    vivaldiboundary_neg = vivaldiboundary_neg';

    % Creating top and bottom polygons
    vivaldiboundary_top = shape.Polygon(Vertices=vivaldiboundary_pos);
    vivaldiboundary_bottom = shape.Polygon(Vertices=vivaldiboundary_neg);

    % Create strip line
    striplineboundary = shape.Rectangle(Length=(LBoard-LInnerTaper),...
        Width=WStrip,Center=[-LBoard/2+(LBoard-LInnerTaper)/2 0],NumPoints=2);

    % Create ground plane
    groundplaneboundary = shape.Rectangle(Length=LBoard-LInnerTaper,Width=WGroundPlane,Center=[-LBoard/2+(LBoard-LInnerTaper)/2 0],NumPoints=2);

    patch1 = vivaldiboundary_top + striplineboundary;
    patch2 = vivaldiboundary_bottom + groundplaneboundary;
    diel_height = 1e-3;
    patch_Top = shape.Polygon(Vertices=patch1.Vertices);
    [~] = translate(patch_Top,[0 0 diel_height]);
    patch_Bot = shape.Polygon(Vertices=patch2.Vertices);
    tmetal = patch_Top + patch_Bot;
    box = shape.Box(Length=LBoard,Width=WBoard,Height=diel_height,Center=[0 0 0.5*diel_height],Dielectric="FR4",Color="g");
    % Create Feed Rectangle
    feedrect = shape.Rectangle(Length=diel_height,Width=WStrip);
    [~] = rotateY(feedrect,90);
    [~] = translate(feedrect,[-0.101 0 diel_height/2]);
    tmetal = tmetal + feedrect;
    % Create Antenna from Geometry
    sb = addSubstrate(tmetal,box);
    % Create custom antenna
    ca = customAntenna(Shape=sb);
    % Assign Feed
    [~] = createFeed(ca,[-101,0,0]*1e-3,1);
    % Manually Mesh Antenna
    [~] = mesh(ca,MaxEdgeLength=0.007);
end

Custom objective function

The below function defines the objective for optimization.

function fitness = customEvaluation(designVariables)
    fitness = [];
    try
        % call custom function to create geometry for the design
        % variables passed
        baseDimensions = struct;
        baseDimensions.ROpening = 30; % Opening rate of taper
        baseDimensions.WAperture = 0.024; % Width of the aperture in meter
        baseDimensions.WStrip = 0.0021; % Width of the feed line in meter
        baseDimensions.LInnerTaper = 0.187; % Length of inner edge taper in meter
        baseDimensions.LOuterTaper = 0.08; % Length of outer edge taper in meter
        baseDimensions.WGroundPlane = 0.05; % Width of the ground plane in meter
        baseDimensions.LBoard = 0.2020; % Length of the printed circuit board in meter
        baseDimensions.WBoard = 0.12; % Width of the printed circuit board in meter
        baseDimensions.N = 30; % Number of points along taper
        ca = createVivaldi(designVariables,baseDimensions);
    catch
        % Handle errors during geometry creation
        % High penalty value is used to handle errors
        fitness = 1e6;
    end

    if isempty(fitness)
        try
            % calculate realized gain
            objective = pattern(ca,5e9,0,0,Type="realizedgain");
            objective = -objective; % As optimizer always minimizes objective,
            % sign is reversed to maximize gain
        catch
            % Handle errors during gain computation
            % High penalty value is used to handle errors
            objective = 1e6;
        end

        try
            objectiveFactor = 1; % Factor used for the objective to provide priority
            constraintsFactor = 100; % Factor used for the constraint to provide priority
            % constraints s11 < -10
            % Calculate S-parameters
            freq = 1e9;
            freqRange = linspace(freq*4, freq*6, 10);
            s = sparameters(ca,freqRange);
            actVal = 20*log10(max(abs(rfparam(s,1,1))));
            expVal = -10;
            % As constraint is satisfied when it is less than -10 dB, better
            % values are made to be equal to -10 dB to not affect optimizer
            % direction
            constraint = actVal - expVal;
            % Constraint value of -10 dB produces 0 in above statement. Constraint values
            % better than -10 dB produce negative value. These negative values are made zero,
            % as constraint is satisfied.
            constraint = max(constraint,0);
        catch
            % Handle errors during S-parameters computation
            % High penalty value is used to handle errors
            constraint = 1e6;
        end
        performances = [objective, constraint];
        % Compute fitness by combining objective and constraints
        fitness = objectiveFactor*performances(1) + constraintsFactor*performances(2);
    end
end

Conclusion

Basic structure of the antipodal Vivaldi antenna is built and analyzed. By using TR-SADEA optimizer object, the antenna is optimized for maximizing gain at 5 GHz while satisfying the constraint on acceptable return loss. The gain for the optimized antenna shows an improvement over the initial design. The return loss of optimized antenna also shows levels below 10 dB in the 4 to 6 GHz band.

References

[1] Balanis, C.A. Antenna Theory. Analysis and Design, 3rd Ed. New York: Wiley, 2005.
