# berfit

Fit curve to nonsmooth empirical BER data

## Syntax

``fitber = berfit(empEbNo,empber)``
``fitber = berfit(empEbNo,empber,fitEbNo)``
``fitber = berfit(empEbNo,empber,fitEbNo,options)``
``fitber = berfit(empEbNo,empber,fitEbNo,options,fittype)``
``[fitber,fitprops] = berfit(___)``
``berfit(___)``
``berfit(empEbNo,empber,fitEbNo,options,'all')``

## Description

example

````fitber = berfit(empEbNo,empber)` fits a curve to the empirical BER data, `empber`, and returns a vector of fitted BER points. The values in `empber` and `fitber` correspond to the empirical energy per bit to noise power spectral density ratio (Eb/N0) values given by `empEbNo`. For a general description of unconstrained nonlinear optimization, see [1]. NoteThe `berfit` function is intended for curve fitting or interpolation (not extrapolation). Extrapolating BER data beyond an order of magnitude below the smallest empirical BER value is inherently unreliable. ```
````fitber = berfit(empEbNo,empber,fitEbNo)` specifies a vector of Eb/N0 values to use when fitting a curve to the empirical BER data in `empber` that correspond to the empirical Eb/N0 values in `empEbNo`.```
````fitber = berfit(empEbNo,empber,fitEbNo,options)` specifies a structure to override the default options used for optimization.```
````fitber = berfit(empEbNo,empber,fitEbNo,options,fittype)` specifies the closed-form function used to fit the empirical data. If you do not want to override the default options for optimization, specify `options` as [ ].```
````[fitber,fitprops] = berfit(___)` returns the `fitprops` structure with fields that describe the properties of the curve fit. Use any input argument combination from previous syntaxes.```
````berfit(___)` plots the empirical and fitted BER data.```
````berfit(empEbNo,empber,fitEbNo,options,'all')` plots the empirical and fitted BER data from all possible settings of `fittype` that are valid. If you do not want to override the default options for optimization, specify `options` as [ ]. NoteTo be valid a fit must conform to these criteria, otherwise it is rejected. real-valuedmonotonically decreasinggreater than or equal to 0 and less than or equal to 1 ```

## Examples

collapse all

This example shows the use of the `berfit` function using hard-coded or theoretical BER points for simplicity. For an example that uses empirical BER data from a simulation, see Use Curve Fitting on Error Rate Plot.

Best Fit for Set of Sample Data

Define a range of ${\mathit{E}}_{\mathrm{b}}/{\mathit{N}}_{0}$ values and BER points. Use this data as inputs for the `berfit` function.

```EbN0 = 0:13; berdata = [.2 .15 .13 .12 .08 .09 .08 .07 .06 .04 .03 .02 .01 .004]; berfit(EbN0,berdata); ```

Plot Best Fit

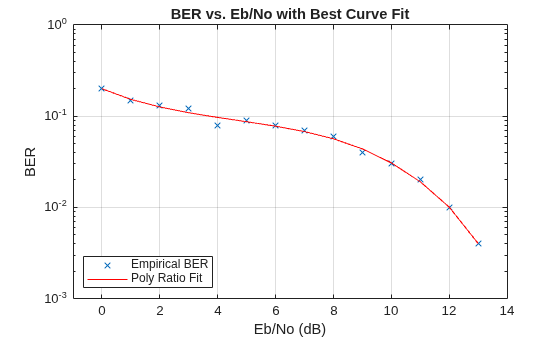

The curve connects the points created by evaluating the fit expression at the specified ${\mathit{E}}_{\mathrm{b}}/{\mathit{N}}_{0}$ values. To make the curve look smoother, provide an input vector of ${\mathit{E}}_{\mathrm{b}}/{\mathit{N}}_{0}$ values for curve fitting in ascending order. This vector provides more points for plotting the curve and does not change the fit expression.

```fitEbNo = 0:0.2:13; berfit(EbN0,berdata,fitEbNo)```

Fit for BER Curve with Error Floor

Run the `berfit` function using the `'all'` option on empirical BER results for a simulation of BPSK data transmitted over a channel with a null (`ch = [0.5 0.47]`) and recovered by using a linear MMSE equalizer at the receiver for the ${\mathit{E}}_{\mathrm{b}}/{\mathit{N}}_{0}$ range [-10, 15]. Comparing the results of curve fitting methods

• `'doubleExp+const'` fit type does not provide a valid fit

• `'exp'` fit type does not work well for this data

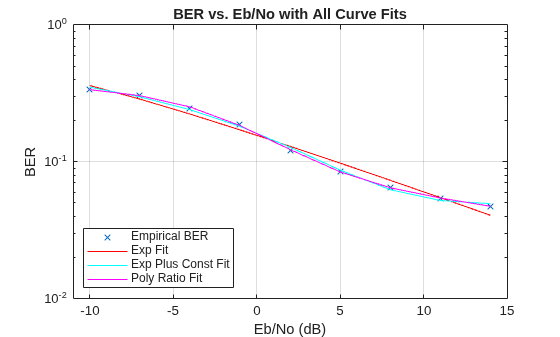

• `'exp+const'` and `'polyRatio'` fit types closely match the simulated data

```EbN0 = -10:3:15; empBER = [0.3361 0.3076 0.2470 0.1878 0.1212 0.0845 0.0650 0.0540 0.0474]; figure; berfit(EbN0,empBER,[],[],'all');```

Use of `options` Input Structure and `fitprops` Output Structure

The `'notify'` value for the display level causes the function to produce output when one of the attempted fits does not converge. The `exitState` field of the output structure indicates which fit type converges.

Generate theoretical BER results for 8-PSK data with a diversity order of 2 transmitted over a Rayleigh fading channel for the ${\mathit{E}}_{\mathrm{b}}/{\mathit{N}}_{0}$ range [3, 10] dB.

```M = 8; EbN0 = 3:10; berdata = berfading(EbN0,'psk',M,2); % Compute the theoretical BER noisydata = berdata.*[.93 .92 1 .59 .08 .15 .01 .01];```

Create the `options` structure by using the `optimset` function to configure display and notification of fit type results. Run exponential and polynomial ratio fit types.

```options = optimset('display','notify'); disp('*** Trying exponential fit.') % Poor fit```
```*** Trying exponential fit. ```
```[fitber1,fitprops1] = berfit(EbN0,noisydata,EbN0,... options,'exp')```
``` Exiting: Maximum number of function evaluations has been exceeded - increase MaxFunEvals option. Current function value: 2.749919 ```
```fitber1 = 1×8 0.1247 0.0727 0.0376 0.0168 0.0064 0.0020 0.0005 0.0001 ```
```fitprops1 = struct with fields: fitType: 'exp' coeffs: [4x1 double] sumSqErr: 2.7499 exitState: 'The maximum number of function evaluations has been exceeded' funcCount: 10001 iterations: 6193 ```
`disp('*** Trying polynomial ratio fit.') % Good fit`
```*** Trying polynomial ratio fit. ```
```[fitber2,fitprops2] = berfit(EbN0,noisydata,EbN0,... options,'polyRatio')```
```fitber2 = 1×8 0.1701 0.0874 0.0407 0.0169 0.0060 0.0016 0.0003 0.0001 ```
```fitprops2 = struct with fields: fitType: 'polyRatio' coeffs: [6x1 double] sumSqErr: 2.3880 exitState: 'The curve fit converged to a solution' funcCount: 554 iterations: 331 ```

## Input Arguments

collapse all

Empirical Eb/N0 values in dB, specified as a vector with at least four elements. The element values in the vector must be in ascending order.

Data Types: `single` | `double`

Empirical BER data, specified as a vector with the same number of elements as input `empEbNo`. The values in `empber` correspond to the Eb/N0 values given by `empEbNo`.

Data Types: `single` | `double`

Eb/N0 values in dB for curve fitting, specified as a vector with element values in ascending order. The length of `fitEbNo` must equal or exceed that of input `empEbNo`.

Data Types: `single` | `double`

Override default options used for optimization, specified as a structure. The fields specified in the `options` structure are used by the `fminsearch` function. You can create the `options` structure by using the `optimset` function. This table describes the fields that are most relevant when using the `berfit` function. To use default options, you can specify this input as [ ].

FieldDescription
`options.Display`

Level of display.

• `'off'` (default) –- displays no output

• `'iter'` –- displays output at each iteration

• `'final'` –- displays only the final output

• `'notify'` –- displays output only if the function does not converge

`options.MaxFunEvals`The maximum number of function evaluations before optimization ceases. The default is 104.
`options.MaxIter`The maximum number of iterations before optimization ceases. The default is 104.
`options.TolFun`The termination tolerance for the closed-form function used to generate the fit. The default is 10-4.
`options.TolX`The termination tolerance for the coefficient values of the closed-form function used to generate the fit. The default is 10-4.

Data Types: `struct`

Closed-form function used to fit the empirical data, specified as `'exp'`, `'exp+const'`, `'polyRatio'`, or `'doubleExp+const'`. For more information, see Algorithms.

Data Types: `char` | `string`

## Output Arguments

collapse all

Fitted BER points, returned as a vector. The BER is computed for each Eb/N0 setting specified by the input `empEbNo` vector.

Data Types: `double`

Fit properties, returned as a structure with these fields to describe the properties of the curve fit.

FieldDescription
`fitprops.fitType`The closed-form function type used to generate the fit. Valid values include: `'exp'`, `'exp+const'`, `'polyRatio'`, or `'doubleExp+const'`.
`fitprops.coeffs`The coefficients used to generate the fit. If the function cannot find a valid fit, `fitprops.coeffs` is an empty vector.
`fitprops.sumSqErr`The sum squared error between the log of the fitted BER points and the log of the empirical BER points.
`fitprops.exitState`

The exit condition of `berfit`. Valid values include:

• `'The curve fit converged to a solution.'`

• ```'The maximum number of function evaluations was exceeded.'```

• `'No desirable fit was found.'`

`fitprops.funcCount`The number of function evaluations used in minimizing the sum squared error function.
`fitprops.iterations`The number of iterations taken in minimizing the sum squared error function. This value is not necessarily equal to the number of function evaluations.

Data Types: `struct`

## Algorithms

The `berfit` function fits the BER data using unconstrained nonlinear optimization via the `fminsearch` function. This table lists the closed-form functions that `berfit` considers based on the value of the `fittype` input argument. These functions were empirically found to provide close fits in a wide variety of situations, including exponentially decaying BERs, linearly varying BERs, and BER curves with error rate floors. In the functional expressions, x is a linear Eb/N0 value (not a dB value), and f(x) is the estimated BER.

`fittype` ValueFunctional Expression
`'exp'`

`$f\left(x\right)={a}_{1}\mathrm{exp}\left[\frac{-{\left(x-{a}_{2}\right)}^{{a}_{3}}}{{a}_{4}}\right]$`

`'exp+const'`

`$f\left(x\right)={a}_{1}\mathrm{exp}\left[\frac{-{\left(x-{a}_{2}\right)}^{{a}_{3}}}{{a}_{4}}\right]+{a}_{5}$`

`'polyRatio'`

`$f\left(x\right)=\frac{{a}_{1}{x}^{2}+{a}_{2}x+{a}_{3}}{{x}^{3}+{a}_{4}{x}^{2}+{a}_{5}x+{a}_{6}}$`

`'doubleExp+const'`

`$\begin{array}{l}{a}_{1}\mathrm{exp}\left[\frac{-{\left(x-{a}_{2}\right)}^{{a}_{3}}}{{a}_{4}}\right]\\ \begin{array}{cc}& \end{array}+{a}_{5}\mathrm{exp}\left[\frac{-{\left(x-{a}_{6}\right)}^{{a}_{7}}}{{a}_{8}}\right]+{a}_{9}\end{array}$`

The sum squared error function that `fminsearch` attempts to minimize is

The fitted BER points are the values in the output `fitber`, and the sum is over the Eb/N0 points given in the input `empEbNo`. To avoid high-BER regions dominating the objective function, the sum squared equation uses the log of the BER values rather than the BER values themselves.
