Generate CRC code bits according to generator polynomial and append to input data frames
Communications Toolbox / Error Detection and Correction / CRC
The General CRC Generator block generates cyclic redundancy check (CRC) code bits for each input data frame and appends them to the frame. For more information, see CRC Generator Operation.
In— Input signal
Input signal, specified as a binary column vector. The length of the input frame must be a multiple of the value of the Checksums per frame parameter.
Out— Output codeword frame
Output codeword frame, returned as a binary column vector that inherits the data type of the input signal. The output contains the input data frames with the CRC bit sequences appended to them.
The length of the output frame is m + k * r, where m is the size of the input frame, k is the number of checksums per frame, and r is the degree of the generator polynomial.
Generator polynomial— Generator polynomial
'z^16 + z^12 + z^5 + 1'(default) | polynomial character vector | binary row vector | integer row vector
Generator polynomial for the CRC algorithm, specified as one of the following:
A polynomial character vector such as
'z^3 + z^2 +
A binary row vector that represents the coefficients of the
generator polynomial in order of descending power. The length of
this vector is (N+1), where N
is the degree of the generator polynomial. For example,
1 0 1] represents the polynomial
An integer row vector containing the exponents of
z for the nonzero terms in the polynomial in
descending order. For example,
[3 2 0] represents
the polynomial z3 +
z2 + 1.
For more information, see Character Representation of Polynomials.
Some commonly used generator polynomials include:
|CRC method||Generator polynomial|
'z^7 + z^2 + 1',
[1 0 0 0 0 1 0
[7 2 0] represent the same
polynomial, p(z) =
7 + z
2 + 1.
Initial states— Initial states of internal shift register
1| binary row vector
Initial states of the internal shift register, specified as a binary scalar or a binary row vector with a length equal to the degree of the generator polynomial. A scalar value is expanded to a row vector of equal length to the degree of the generator polynomial.
Direct method— Use direct algorithm for CRC checksum calculations
Select to use the direct algorithm for CRC checksum calculations. When cleared, the block uses the non-direct algorithm for CRC checksum calculations.
For more information on direct and non-direct algorithms, see Error Detection and Correction.
Reflect input bytes— Reflect input bytes
Select to flip the input data on a bytewise basis before entering the data into the shift
register. When Reflect input bytes is selected, the
input frame length divided by the value of the Checksums per frame parameter must be an integer and a
8. When Reflect input
bytes is cleared, the block does not flip the input
Reflect checksums before final XOR— Reflect checksums before final XOR
Select to flip the CRC checksums around their centers after the input data are completely through the shift register. When Reflect checksums before final XOR is cleared, the block does not flip the CRC checksums.
Final XOR— Final XOR
1| binary row vector
Final XOR, specified as a binary scalar or a binary row vector with a length equal to the
degree of the generator polynomial. The XOR operation runs using the value
of the Final XOR parameter the CRC checksum before
appending the CRC to the input data. A scalar value is expanded to a row
vector of equal length to the degree of the generator polynomial. A setting
0 is equivalent to no XOR operation.
Checksums per frame— Number of checksums calculated for each frame
1(default) | positive integer
Number of checksums calculated for each frame, specified as a positive integer.
Cyclic redundancy check (CRC) coding is an error-control coding technique for detecting errors that occur when a data frame is transmitted. Unlike block or convolutional codes, CRC codes do not have a built-in error-correction capability. Instead, when a communications system detects an error in a received codeword, the receiver requests the sender to retransmit the codeword.
In CRC coding, the transmitter applies a rule to each data frame to create extra CRC bits, called the checksum or syndrome, and then appends the checksum to the data frame. After receiving a transmitted codeword, the receiver applies the same rule to the received codeword. If the resulting checksum is nonzero, an error has occurred and the transmitter should resend the data frame.
When the number of checksums per frame is greater than 1, the input data frame is divided into subframes, the rule is applied to each data subframe, and individual checksums are appended to each subframe. The subframe codewords are concatenated to output one frame.
For a discussion of the supported CRC algorithms, see Cyclic Redundancy Check Codes.
The CRC generator appends CRC checksums to the input frame according to the specified generator polynomial and number of checksums per frame.
For a specific initial state of the internal shift register and k checksums per input frame:
The input signal is divided into k subframes of equal size.
Each of the k subframes are prefixed with the initial states vector.
The CRC algorithm is applied to each subframe.
The resulting checksums are appended to the end of each subframe.
The subframes are concatenated and output as a column vector.

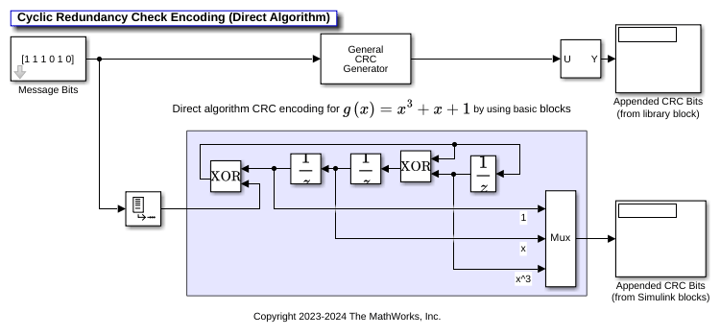

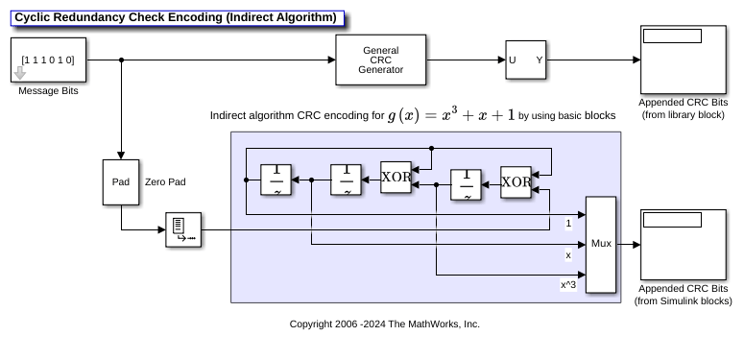

For the scenario shown here, a 10-bit frame is input, a third degree generator polynomial computes the CRC checksum, the initial state is 0, and the number of checksums per frame is 2.
The input frame is divided into two subframes of size 5 and checksums of size 3 are computed
and appended to each subframe. The initial states are not shown, because an initial state of
 does not affect the output of the CRC algorithm. The output
transmitted codeword frame has the size 5 + 3 + 5 + 3 = 16.
