# semianalytic

BER using semianalytic technique

## Syntax

``ber = semianalytic(txsig,rxsig,modtype,M,Nsamp)``
``ber = semianalytic(txsig,rxsig,modtype,M,Nsamp,num,den)``
``ber = semianalytic(___,EbNo)``
``[ber,avgampl,avgpower] = semianalytic(___)``

## Description

The `semianalytic` function computes the bit error rate (BER) of a communication system for the specified energy per bit to noise power spectral density ratio (Eb/N0) levels by using the semianalytic technique. The system transmits complex baseband signal `txsig` and receives noiseless complex baseband signal `rxsig`. The function filters the received signal `rxsig` and determines the symbol error probability of each received IQ symbol by analytically applying a Gaussian noise distribution to each complex value. The function averages the error probabilities over the entire received signal to determine the overall error probability. For each symbol error probability, the function returns a BER, assuming a Gray-coded constellation. For more information, see When to Use Semianalytic Technique.

````ber = semianalytic(txsig,rxsig,modtype,M,Nsamp)` returns the BER of the system for the transmitted signal `txsig`, received noiseless signal `rxsig`, modulation type `modtype`, and modulation order `M`. The function uses an ideal integrator to filter `rxsig`. Input `Nsamp` is the number of samples per symbol for each signal. The returned BER values correspond to the default Eb/N0 levels in the range [0, 20] in dB.```
````ber = semianalytic(txsig,rxsig,modtype,M,Nsamp,num,den)` specifies the filter coefficients of the receiver filter in descending polynomial powers by numerator `num` and denominator `den`. The function uses the specified receiver filter instead of an ideal integrator to filter `rxsig`.```

example

````ber = semianalytic(___,EbNo)` specifies the Eb/N0 levels in addition to any of the input argument combinations in the previous syntaxes. The returned BER values correspond to the specified Eb/N0 levels.```
````[ber,avgampl,avgpower] = semianalytic(___)` returns the mean signal amplitude and the mean power of the received signal after filtering and sampling the signal at the symbol rate.```

## Examples

collapse all

Use the semianalytic technique for BER analysis using a 16-QAM modulated signal. Compare the error rates obtained from the semianalytic technique with the theoretical error rates obtained from published formulas and computed using the `berawgn` function.

Generate a message signal. To obtain accurate results, the signal must be at least ${\mathit{M}}^{\mathit{L}}$ long. $\mathit{M}$ is the modulation order of the signal, and $\mathit{L}$ is the length of the channel impulse response.

```M = 16; % Alphabet size of modulation L = 1; % Length of impulse response of channel msg = [0:M-1 0]; % M-ary message sequence of length greater than M^L```

Modulate the message signal using baseband modulation.

```modsig = qammod(msg',M); % Modulate data Nsamp = 16; modsig = rectpulse(modsig,Nsamp); % Rectangular pulse shaping```

Apply a transmitter filter.

`txsig = modsig; % No filter in this example`

Pass `txsig` through a noiseless channel, applying a static phase offset of 1 degree.

`rxsig = txsig*exp(1i*pi/180);`

Specify the receiver filter as a pair of input arguments. In this case, `num` and `den` represent an ideal integrator.

```num = ones(Nsamp,1)/Nsamp; den = 1; EbNo = 0:20; ber = semianalytic(txsig,rxsig,'qam',M,Nsamp,num,den,EbNo);```

For comparison, calculate theoretical BER.

`bertheory = berawgn(EbNo,'qam',M);`

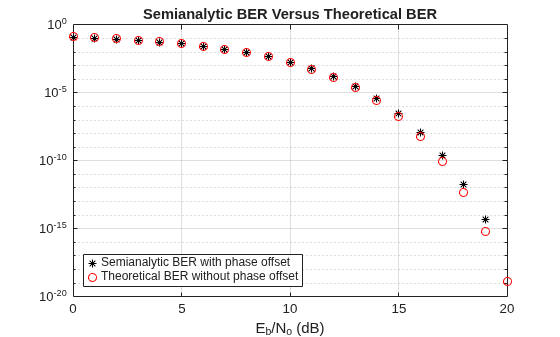

Plot the computed BER and theoretical BER. The differences between the theoretical and semianalytic error rates are due to the phase offset added to the 16-QAM signal.

```semilogy(EbNo,ber,'k*'); hold on; semilogy(EbNo,bertheory,'ro'); title('Semianalytic BER Versus Theoretical BER'); xlabel('E_b/N_o (dB)'); legend('Semianalytic BER with phase offset',... 'Theoretical BER without phase offset','Location','SouthWest'); hold off; grid on;```

## Input Arguments

collapse all

Transmitted baseband signal, specified as a complex vector. `txsig` must contain at least `M`L symbols. `M` is the modulation order of the signal and L is the length of the channel impulse response in symbols. For more information on how to generate a transmitted baseband signal to use in this function, see Procedure for Using Semianalytic Technique.

Data Types: `double`
Complex Number Support: Yes

Received noiseless baseband signal, specified as a complex vector.

Data Types: `double`
Complex Number Support: Yes

Modulation type, specified as one of these options in this table.

`modtype` ValueModulation SchemeValid Values of Input `M`
`'dpsk'` Differential phase shift keying (DPSK) 2 or 4
`'msk/diff'` Minimum shift keying (MSK) with differential encoding, which is equivalent to conventional MSK2
`'msk/nondiff'` Minimum shift keying (MSK) with nondifferential encoding, which is equivalent to precoded MSK2
`'psk/diff'` Phase shift keying (PSK) with differential encoding2 or 4
`'psk/nondiff'` Phase shift keying (PSK) with nondifferential encoding2, 4, 8, 16, 32, or 64
`'oqpsk'` Offset quadrature phase shift keying (OQPSK) 4
`'qam'` Quadrature amplitude modulation (QAM) 4, 8, 16, 32, 64, 128, 256, 512, or 1024

Data Types: `char` | `string`

Modulation order, specified as a power of two. Valid modulation order values depend on the specified modulation type, as described in the `modtype` input.

Data Types: `single` | `double`

Number of samples per symbol of received and transmitted signals, specified as a positive integer.

Data Types: `double`

Numerator coefficients of the receiver filter in descending polynomial powers, specified as a numeric row vector. If you do not specify this input, the function sets `num` to a default value to model an ideal integrator. The function bases the default value on the `modtype` input, as this table shows.

`modtype` ValueDefault `num` Value
`'dpsk'`, `'psk/diff'`, `'psk/nondiff'`, or `'qam'` `ones(Nsamp,1)/Nsamp`
`'oqpsk'`, `'msk/diff'`, or `'msk/nondiff'``ones(2*Nsamp,1)/(2*Nsamp)`

Data Types: `double`

Denominator coefficients of the receiver filter in descending polynomial powers, specified as a numeric row vector. The default value corresponds to an ideal integrator.

Data Types: `double`

Eb/N0 levels in dB, specified as a numeric scalar or numeric vector.

Data Types: `single` | `double`

## Output Arguments

collapse all

BER, returned as a numeric scalar or numeric vector. The function computes the BER for the Eb/N0 levels that you specify for the `EbNo` input. If `EbNo` is a vector, then the output `ber` is a vector of the size of `EbNo` and consists of elements corresponding to the different Eb/N0 levels.

Note

The output `ber` is an upper bound on the BER for these modulation schemes.

• DQPSK (that is, if you set input `modtype` to `'dpsk'` and input `M` to 4)

• Cross QAM (that is, if you set input `modtype` to `'qam'` and input `M` to a value that is not a perfect square). In this case, the upper bound is slightly tighter than the upper bound used for the cross QAM case of the `berawgn` function.

Data Types: `double`

Mean signal amplitude of the I and Q components of the received signal after filtering and decimating the signal to the symbol rate, returned as a complex number.

Data Types: `double`
Complex Number Support: Yes

Mean power of the received signal after filtering and sampling the signal at the symbol rate, returned as a numeric scalar.

Data Types: `double`

## Limitations

The `semianalytic` function makes several assumptions about the communication system. To find out whether your communication system is suitable for the semianalytic technique and the `semianalytic` function, see When to Use Semianalytic Technique.

collapse all

### When to Use Semianalytic Technique

The Monte-Carlo simulation described in the Performance Results via Simulation section effectively calculates the BER for a variety of communication systems but can be prohibitively time-consuming for small error rates (for example, error rates of 10-6 or less). The semianalytic technique is an alternative way to compute error rates. This technique can produce results faster than a nonanalytic method that uses only simulated data.

To apply the semianalytic technique, the communication system must satisfy these characteristics.

• Any effects of multipath fading, quantization, and amplifier nonlinearities must precede the effects of noise in the modeled channel.

• The receiver is perfectly synchronized with the carrier, and timing jitter is negligible. Because phase noise and timing jitter can be slow processes, they can reduce the applicability of the semianalytic technique to a communication system.

• The noiseless simulation has no errors in the received signal constellation. Distortions from sources other than noise must be mild enough to keep each signal point in its correct decision region. For instance, if the modeled system has a phase rotation that places the received signal points outside of their proper decision regions, then the semianalytic technique is not suitable to predict system performance.

If the communication system does not satisfy these characteristics, the calculated BER can be lower than expected. The `semianalytic` function assumes that the noise in the modeled channel is Gaussian. For details on how to adapt the semianalytic technique for non-Gaussian noise, see the discussion of generalized exponential distributions in [1].

### Procedure for Using Semianalytic Technique

These steps describe how to implement the semianalytic technique by using the `semianalytic` function.

1. Generate a message signal containing at least `M`L symbols. `M` is the modulation order, and L is the length of the impulse response of the channel in symbols. Start with an augmented binary pseudonoise (PN) sequence of length (log2`M`)`M`L. An augmented PN sequence is a PN sequence with an extra zero appended to it, which makes the distribution of ones and zeros equal.

2. Modulate a carrier with the message signal by using one of the baseband modulation types that `semianalytic` supports. For an overview, see the `modtype` input. Shape the resultant signal with rectangular pulse shaping, using an oversampling factor that you use later for filtering the modulated signal. Use the result of this step as `txsig` when you call the `semianalytic` function.

3. Filter the modulated signal with a transmit filter. This filter is often a square-root raised cosine filter, but you can also use a Butterworth, Bessel, Chebyshev type 1 or 2, elliptic, or more general FIR or IIR filter. If you use a square-root raised cosine filter, use the filter on the nonoversampled modulated signal, and specify the oversampling factor in the filtering function. You can apply the other filters to the rectangularly pulse shaped signal.

4. Pass the filtered signal through a noiseless channel. This channel can include multipath fading effects, phase shifts, amplifier nonlinearities, quantization, and additional filtering, but it must not include noise. Use the result of this step as the `rxsig` input when you call the `semianalytic` function.

5. Call the `semianalytic` function, specifying the transmitted and received signals, `txsig` and `rxsig`, obtained in the previous steps. Optionally, you can specify a custom receiver filter by using the `num` and `den` inputs or custom Eb/N0 levels by using the `EbNo` input.

## References

[1] Jeruchim, Michel C., Philip Balaban, and K. Sam Shanmugan. Simulation of Communication Systems. Second edition. Boston, MA: Springer US, 2000.

[2] Pasupathy, S., "Minimum Shift Keying: A Spectrally Efficient Modulation". IEEE Communications Magazine, July, 1979, pp. 14–22.

## Version History

Introduced before R2006a
