Create MATLAB Production Server Archive Using Production Server Archive Compiler App

Supported platforms: Windows®, Linux®, Mac

This example shows how to use the Production Server Archive Compiler app to package a MATLAB® function into a MATLAB Production Server™ archive. You can deploy the archive to MATLAB Production Server.

Before R2025a: See Create Deployable Archive for MATLAB Production Server (R2024b).

Create MATLAB Function

Write a MATLAB program that you want to deploy. For information on writing MATLAB code for MATLAB Production Server, see MATLAB Coding Guidelines.

For this example, create a function named addmatrix.m.

function a = addmatrix(a1, a2)
a = a1 + a2;

At the MATLAB command prompt, enter addmatrix([1 4 7; 2 5 8; 3 6 9], [1 4 7; 2 5 8; 3 6 9]).

The output is a 3-by-3 matrix.

     2     8    14
     4    10    16
     6    12    18

Create Project and Compiler Task

Create a compiler task for your function using the Production Server Archive Compiler. Compiler tasks allow you to compile files in a project for a specific deployment target.

To open the app, on the Apps tab, expand the Apps gallery. In the Application Deployment section, click Production Server Archive Compiler.

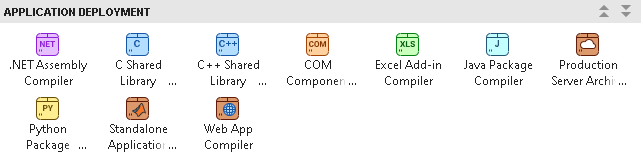

Application Deployment section of the Apps gallery

You can also open the app using the productionServerArchiveCompiler function at the MATLAB Command Window.

After you open the app, the Create Compiler Task dialog box prompts you to add a compiler task to a new or an existing MATLAB project. For this example, select Start a new project and create a compiler task and create a new project named MatrixProject in your working folder. For more information on creating and using MATLAB projects, see Create Projects.

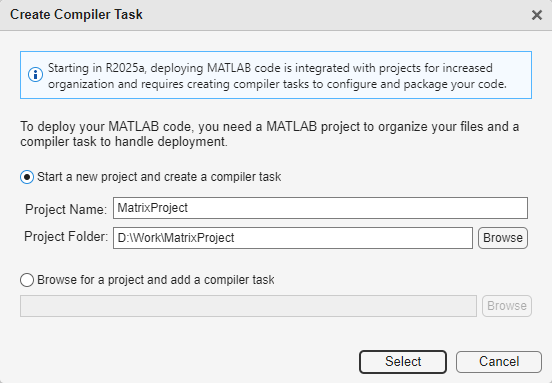

Create compiler task dialog box with the text 'To deploy your MATLAB code, you need a MATLAB project to organize code and a compiler task to handle deployment.' The option 'Start a new project and create a compiler task' is selected.

A new compiler task named ProductionServerArchive1 opens in the Editor. You can compile code for other deployment targets by opening the Compiler Task Manager or going to the Manage Tasks tab and creating a new compiler task.

Specify Build Options

You can specify options for the MATLAB Production Server archive before packaging to customize the building and packaging process. For instance, you can obfuscate the MATLAB code or add a function signature file. For information on function signatures, see MATLAB Function Signatures in JSON (MATLAB Production Server).

For this example, in the Exported Functions section of the compiler task, click Add Exported Function and select addmatrix.m. In the Project panel, the file now has the labels Design and Exported Function File.

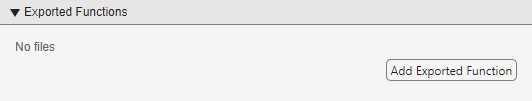

Exported file section of the compiler task with no file selected and a button labeled Add Exported Function

In the Package Info section, replace the string MyProductionServerArchive with the name for your MATLAB Production Server package, AddMatrixArchive.

View Code and Package MATLAB Production Server Archive

To view code that contains instructions on building and packaging your component, click the arrow next to the Export Build Script button and select Show Code. On the right, a window opens that displays a deployment script with the compiler.build.productionServerArchive function that corresponds to your build options.

You can convert this code to a MATLAB script file by clicking the Export Build Script button. Running the generated build script is equivalent to clicking the Package button.

Three buttons labeled Test Client, Export Build Script, and Package

To create the MATLAB Production Server archive, click Package.

The compiler generates files in the <compiler_task_name>/output folder in your project folder. To choose a different output location for the generated files, update the paths in the Output Location section.

Test and Deploy Archive

After creating the deployable archive, you write source code for a client application that calls the MATLAB function in the archive using HTTP or HTTPS requests. To create a client for this example using the MWHttpClient class from the Java® client API, see Create MATLAB Production Server Java Client Using MWHttpClient Class (MATLAB Production Server).

You can test your RESTful API or Java client using the development version of MATLAB Production Server. MATLAB Compiler SDK™ includes the development version of MATLAB Production Server for testing and debugging application code and Excel® add-ins before deploying them to web applications and enterprise systems. To test your client, see Testing and Debugging RESTful APIs and Java Clients with the Development Version of MATLAB Production Server.

There are several ways to deploy archives to MATLAB Production server:

Deploy Archive from Within Production Server Archive Compiler App

You can deploy archives to a MATLAB Production Server instance directly through the app.

Prerequisites

Complete these steps on the machine hosting the MATLAB Production Server instance.

Configuration Properties

To deploy archives directly from the app, enable and set the following configuration properties in the main_config file for your server instance. For more information about configuration properties, see Server Configuration Properties (MATLAB Production Server).

Set certificate and key paths:

  • Set the private key path.

    --x509-private-key <path-to-key-file>

  • Set the certificate chain path.

    --x509-cert-chain <path-to-cert-chain-file>

Enable HTTPS:

  • Uncomment the following line to enable HTTPS on port 9920.

    --https 9920

Specify configuration file paths:

  • Point to your access control configuration file.

    --access-control-config ./config/jwt_idp.json

  • Point to your access control policy file.

    --access-control-policy ./config/ac_policy.json

Enable Access Control:

  • --access-control-provider OAuth2

Enable archive management:

  • --enable-archive-management

Deploy Archive

After you package your MATLAB Production Server archive, you can deploy directly from the app.

To deploy your archive, click Deploy To Server.

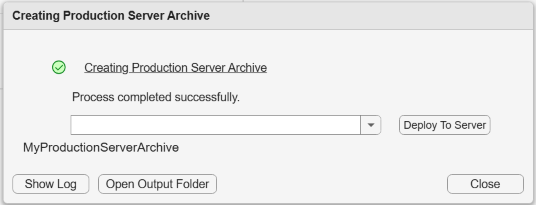

Window showing successful creation of a Production Server Archive, with the option to deploy to server

Next, enter your JSON web token and click Upload.

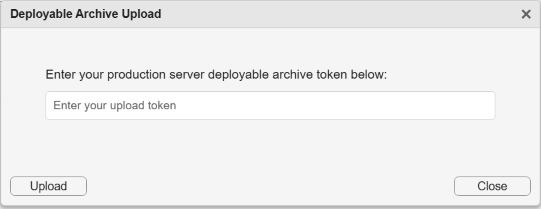

Window prompting you to enter your JSON web token to upload your archive

For other ways to deploy archives to MATLAB Production Server, see Deploy Archive to MATLAB Production Server (MATLAB Production Server). To deploy and manage archives using the RESTful API, see RESTful API for Secure Management of Deployable Archives (MATLAB Production Server).
