getSpectrumData
Save spectrum data shown in spectrum analyzer
Description
returns the spectrum and spectrogram displayed on the spectrum analyzer along with
additional statistics about the spectrum.spectrumTable
= getSpectrumData(scope
)
Examples
Save Spectrum Data
Create a Spectrum Analyzer object and generate data.

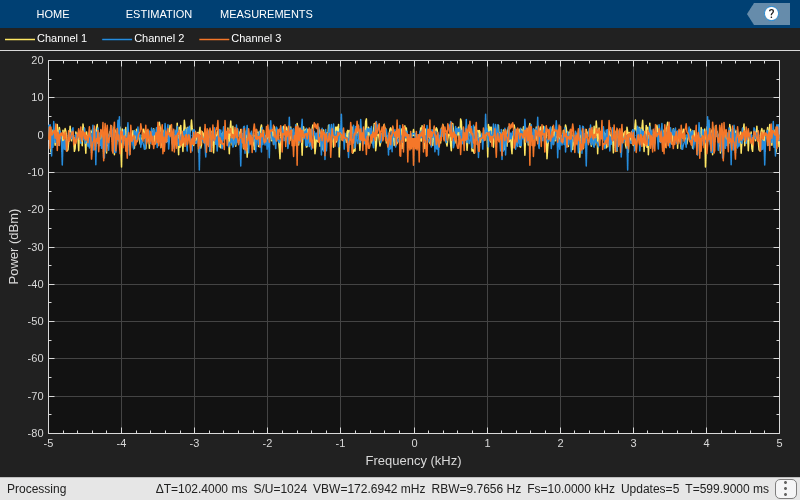

scope = spectrumAnalyzer; scope(randn(6000,3))
Save data from the last spectrum shown in the Spectrum Analyzer to a table.
specTable = getSpectrumData(scope)
specTable = 1x3 table SimulationTime Spectrum FrequencyVector ______________ _______________ _______________ {[0.5999]} {1024x3 double} {1024x1 double}
Input Arguments
scope
— Spectrum analyzer
object name | block configuration
Spectrum Analyzer you want to query, specified as one of the following:
spectrumAnalyzer
objectSpectrumAnalyzerBlockConfiguration
object for a Spectrum Analyzer block
Output Arguments
spectrumTable
— Data about current spectrum estimation
table
A spectrum table is returned containing the following fields:
Field | Description |
---|---|
SimulationTime | Simulation time |
Spectrum | Power, power density, or RMS spectrum data |
Spectrogram | Spectrogram data |
MinHoldTrace | Minimum hold trace data |
MaxHoldTrace | Maximum hold trace data |
FrequencyVector | Frequency vector |
Version History
Introduced in R2017bR2024a: dsp.SpectrumAnalyzer
System object warns
The dsp.SpectrumAnalyzer
System object™ warns in R2024a. Use the spectrumAnalyzer
object instead.
Update Code
No updates to your code are required except replacing instances of
dsp.SpectrumAnalyzer
with
spectrumAnalyzer
.
This table shows how the getSpectrumData
function typically
uses the dsp.SpectrumAnalyzer
System object and explains how to update existing code to use the
spectrumAnalyzer
object.
Discouraged Usage | Recommended Replacement |
---|---|
scope = dsp.SpectrumAnalyzer; scope(randn(100000,1)) specTable = getSpectrumData(scope) |
scope = spectrumAnalyzer; scope(randn(100000,1)) specTable = getSpectrumData(scope) |
R2022a: Support for dsp.SpectrumAnalyzer
object will be removed
The getSpectrumData
function will stop supporting the
dsp.SpectrumAnalyzer
object in a future release. Use the
spectrumAnalyzer
object instead.
