# Implement Fixed-Point Square Root Using Lookup Table

This example shows how to implement fixed-point square root using a lookup table. Lookup tables generate efficient code for embedded devices.

### Setup

To ensure that this example does not change your preferences or settings, this code stores the original state.

```originalFormat = get(0,'format'); format long g originalWarningState = warning('off','fixed:fi:underflow'); originalFiprefState = get(fipref); reset(fipref)```

You will restore this state at the end of the example.

### Square Root Implementation

The square root algorithm is summarized here.

1. Declare the number of bits in a byte, `B`, as a constant. In this example, `B = 8`.

2. Use the function `fi_normalize_unsigned_8_bit_byte()`, described in the example Normalize Data for Lookup Tables, to normalize the input `u > 0` such that `u = x*2^n`, `0.5 <= x < 2`, and `n` is even.

3. Extract the upper `B` bits of `x`. Let `x_B` denote the upper `B` bits of `x`.

4. Generate a lookup table, `SQRTLUT`, such that the integer `i = x_B- 2^(B-2) + 1` is used as an index to `SQRTLUT` so that `sqrt(x_B)` can be evaluated by looking up the index `sqrt(x_B) = SQRTLUT(i)`.

5. Use the remainder, `r = x - x_B`, interpreted as a fraction, to linearly interpolate between `SQRTLUT(i)` and the next value in the table `SQRTLUT(i+1)`. The remainder, `r`, is created by extracting the lower `w - B` bits of `x`, where `w` denotes the wordlength of `x`. It is interpreted as a fraction by using function `reinterpretcast()`.

6. Finally, compute the output using the lookup table and linear interpolation:

`sqrt(u) = sqrt(x*2^n)`

` = sqrt(x)*2^(n/2)`

` = (SQRTLUT(i) + r*(SQRTLUT(i+1) - SQRTLUT(i)))*2^(n/2)`

The function `fi_sqrtlookup_8_bit_byte()`, defined at the end of this example, implements this algorithm.

### Example

Use `fi_sqrtlookup_8_bit_byte()` to compute the fixed-point square root using a lookup table. Compare the fixed-point lookup table result to the square root calculated using `sqrt` and double precision.

```u = fi(linspace(0,128,1000),0,16,12); y = fi_sqrtlookup_8_bit_byte(u); y_expected = sqrt(double(u));```

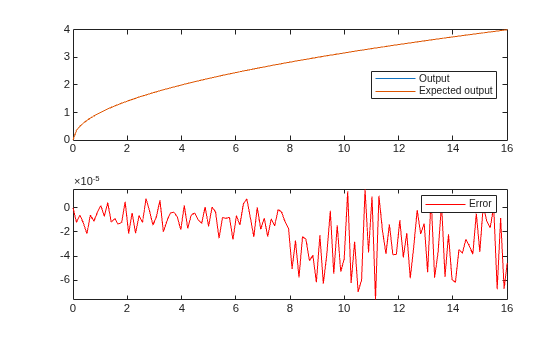

Plot the results.

```clf subplot(211) plot(u,y,u,y_expected) legend('Output','Expected output','Location','Best') subplot(212) plot(u,double(y)-y_expected,'r') legend('Error')```

`figure(gcf)`

### Cleanup

Restore the original state.

```set(0,'format',originalFormat); warning(originalWarningState); fipref(originalFiprefState);```

### `sqrt_lookup_table` Function Definition

The function `sqrt_lookup_table` loads the lookup table of square-root values. You can create the table by running:

`sqrt_table = sqrt((2^(B-2):2^(B))/2^(B-1));`

```function SQRTLUT = sqrt_lookup_table() B = 8; % Number of bits in a byte % sqrt_table = sqrt((2^(B-2):2^(B))/2^(B-1)) sqrt_table = [0.707106781186548 0.712609640686961 0.718070330817254 0.723489806424389 ... 0.728868986855663 0.734208757779421 0.739509972887452 0.744773455488312 ... 0.750000000000000 0.755190373349661 0.760345316287277 0.765465544619743 ... 0.770551750371122 0.775604602874429 0.780624749799800 0.785612818123533 ... 0.790569415042095 0.795495128834866 0.800390529679106 0.805256170420320 ... 0.810092587300983 0.814900300650331 0.819679815537750 0.824431622392057 ... 0.829156197588850 0.833854004007896 0.838525491562421 0.843171097702003 ... 0.847791247890659 0.852386356061616 0.856956825050130 0.861503047005639 ... 0.866025403784439 0.870524267324007 0.875000000000000 0.879452954966893 ... 0.883883476483184 0.888291900221993 0.892678553567856 0.897043755900458 ... 0.901387818865997 0.905711046636840 0.910013736160065 0.914296177395487 ... 0.918558653543692 0.922801441264588 0.927024810886958 0.931229026609459 ... 0.935414346693485 0.939581023648307 0.943729304408844 0.947859430506444 ... 0.951971638232989 0.956066158798647 0.960143218483576 0.964203038783845 ... 0.968245836551854 0.972271824131503 0.976281209488332 0.980274196334883 ... 0.984250984251476 0.988211768802619 0.992156741649222 0.996086090656827 ... 1.000000000000000 1.003898650263063 1.007782218537319 1.011650878514915 ... 1.015504800579495 1.019344151893756 1.023169096484056 1.026979795322186 ... 1.030776406404415 1.034559084827928 1.038327982864759 1.042083250033317 ... 1.045825033167594 1.049553476484167 1.053268721647045 1.056970907830485 ... 1.060660171779821 1.064336647870400 1.068000468164691 1.071651762467640 ... 1.075290658380328 1.078917281352004 1.082531754730548 1.086134199811423 ... 1.089724735885168 1.093303480283494 1.096870548424015 1.100426053853688 ... 1.103970108290981 1.107502821666834 1.111024302164449 1.114534656257938 ... 1.118033988749895 1.121522402807898 1.125000000000000 1.128466880329237 ... 1.131923142267177 1.135368882786559 1.138804197393037 1.142229180156067 ... 1.145643923738960 1.149048519428140 1.152443057161611 1.155827625556683 ... 1.159202311936963 1.162567202358642 1.165922381636102 1.169267933366857 ... 1.172603939955857 1.175930482639174 1.179247641507075 1.182555495526531 ... 1.185854122563142 1.189143599402528 1.192424001771182 1.195695404356812 ... 1.198957880828180 1.202211503854459 1.205456345124119 1.208692475363357 ... 1.211919964354082 1.215138880951474 1.218349293101120 1.221551267855754 ... 1.224744871391589 1.227930169024281 1.231107225224513 1.234276103633219 ... 1.237436867076458 1.240589577579950 1.243734296383275 1.246871083953750 ... 1.250000000000000 1.253121103485214 1.256234452640111 1.259340104975618 ... 1.262438117295260 1.265528545707287 1.268611445636527 1.271686871835988 ... 1.274754878398196 1.277815518766305 1.280868845744950 1.283914911510884 ... 1.286953767623375 1.289985465034393 1.293010054098575 1.296027584582983 ... 1.299038105676658 1.302041665999979 1.305038313613819 1.308028096028522 ... 1.311011060212689 1.313987252601790 1.316956719106592 1.319919505121430 ... 1.322875655532295 1.325825214724777 1.328768226591831 1.331704734541407 ... 1.334634781503914 1.337558409939543 1.340475661845451 1.343386578762792 ... 1.346291201783626 1.349189571557681 1.352081728298996 1.354967711792425 ... 1.357847561400027 1.360721316067327 1.363589014329464 1.366450694317215 ... 1.369306393762915 1.372156150006259 1.375000000000000 1.377837980315538 ... 1.380670127148408 1.383496476323666 1.386317063301177 1.389131923180804 ... 1.391941090707505 1.394744600276337 1.397542485937369 1.400334781400505 ... 1.403121520040228 1.405902734900249 1.408678458698081 1.411448723829527 ... 1.414213562373095]; % Cast to fixed point with the most accurate rounding method WL = 4*B; % Word length FL = 2*B; % Fraction length SQRTLUT = fi(sqrt_table,1,WL,FL,'RoundingMethod','Nearest'); % Set fimath for the most efficient math operations F = fimath('OverflowAction','Wrap',... 'RoundingMethod','Floor',... 'SumMode','KeepLSB',... 'SumWordLength',WL,... 'ProductMode','KeepLSB',... 'ProductWordLength',WL); SQRTLUT = setfimath(SQRTLUT,F); end```

### `fi_sqrtlookup_8_bit_byte()` Function Definition

```function y = fi_sqrtlookup_8_bit_byte(u) % Load the lookup table SQRTLUT = sqrt_lookup_table(); % Remove fimath from the input to insulate this function from math % settings declared outside this function. u = removefimath(u); % Declare the output y = coder.nullcopy(fi(zeros(size(u)),numerictype(SQRTLUT),fimath(SQRTLUT))); B = 8; % Number of bits in a byte w = u.WordLength; for k = 1:numel(u) assert(u(k)>=0,'Input must be non-negative.'); if u(k)==0 y(k)=0; else % Normalize the input such that u = x*2^n and 0.5 <= x < 2 [x,n] = fi_normalize_unsigned_8_bit_byte(u(k)); isodd = storedInteger(bitand(fi(1,1,8,0),fi(n))); x = bitsra(x,isodd); n = n + isodd; % Extract the high byte of x high_byte = storedInteger(bitsliceget(x,w,w-B+1)); % Convert the high byte into an index for SQRTLUT i = high_byte - 2^(B-2) + 1; % The upper byte was used for the index into SQRTLUT. % The remainder, r, interpreted as a fraction, is used to % linearly interpolate between points. T_unsigned_fraction = numerictype(0,w-B,w-B); r = reinterpretcast(bitsliceget(x,w-B,1),T_unsigned_fraction); y(k) = bitshift((SQRTLUT(i) + r*(SQRTLUT(i+1) - SQRTLUT(i))),... bitsra(n,1)); end end % Remove fimath from the output to insulate the caller from math settings % declared inside this function. y = removefimath(y); end```
