# Interpret `surrogateoptplot`

The `surrogateoptplot` plot function provides a good deal of information about the surrogate optimization steps.

### Minimize Bounded Function

For example, consider the plot of the steps `surrogateopt` takes on the built-in test function `rastriginsfcn`. This function has a global minimum value of 0 at the point [0,0].

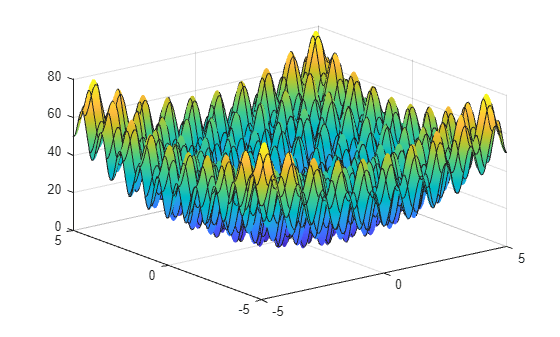

Create a surface plot of `rastriginsfcn`.

`ezsurf(@(x,y)rastriginsfcn([x(:),y(:)]));` ### Plot Minimization Process

By giving asymmetric bounds, you encourage `surrogateopt` to search away from the global minimum. Set asymmetric bounds of `[-3,-3]` and `[9,10]`. Set options to use the `surrogateoptplot` plot function, and then call `surrogateopt`.

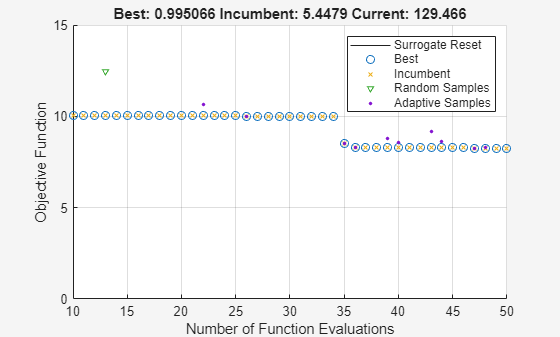

```lb = [-3,-3]; ub = [9,10]; options = optimoptions('surrogateopt','PlotFcn','surrogateoptplot'); rng default [x,fval] = surrogateopt(@rastriginsfcn,lb,ub,options);``` ```Surrogateopt stopped because it exceeded the function evaluation limit set by 'options.MaxFunctionEvaluations'. ```

### Interpret Plot

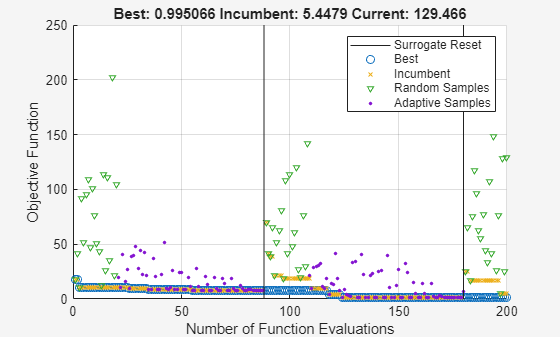

Begin interpreting the plot from its left side. For details of the algorithm steps, see Surrogate Optimization Algorithm.

• The first points are black triangles, indicating quasirandom samples of the function within the problem bounds. These points come from the Construct Surrogate phase.

• Next are black dots indicating the adaptive points, the points created in the Search for Minimum phase.

• The thick green line represents the best (lowest) objective function value found. Shortly after evaluation number 30, `surrogateopt` is stuck in a local minimum with an objective function value near 5. Zoom in to see this behavior more clearly.

```xlim([20 100]) ylim([0 10])``` • Near evaluation number 120, a vertical line indicates a surrogate reset. At this point, the algorithm returns to the Construct Surrogate phase.

• The dark blue x points represent the incumbent, which is the best point found since the previous surrogate reset.

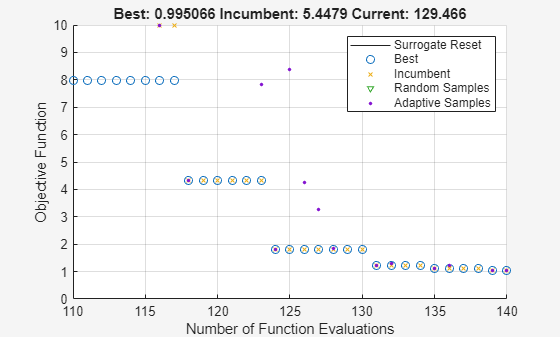

• Near evaluation number 160, the incumbent improves on the previous best point by attaining a value of about 4. After this evaluation number, the best point slowly drops in value. Zoom in to see this behavior more clearly.

```xlim([140 200]) ylim([0 6])``` • The optimization halts at evaluation number 200 because it is the default function evaluation limit for a 2-D problem.

### Problem with Nonlinear Constraints

The `surrogateoptplot` display changes when you have nonlinear constraints. Impose the constraint that `x(1)` is integer-valued, and the nonlinear constraint that ${x}_{2}\ge {x}_{1}^{2}-2$. For the function that implements this constraint, see `rasfcn` at the end of this example.

`fun = @rasfcn;`

Set integer constraints by setting `intcon` = 1, and run the minimization.

```intcon = 1; [x,fval] = surrogateopt(fun,lb,ub,intcon,options);``` ```Surrogateopt stopped because it exceeded the function evaluation limit set by 'options.MaxFunctionEvaluations'. ```

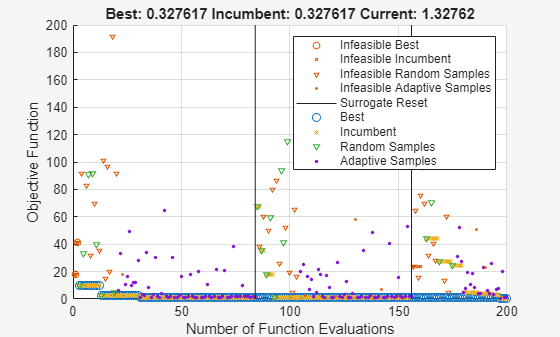

The plot now shows red markers where `surrogateopt` evaluates an infeasible point. The final point is close to the true minimum point of [0,0].

`disp(x)`
``` 1.0e-03 * 0 -0.3913 ```

The integer constraint likely helps `surrogateopt` find the true minimum, by reducing the search space.

```function F = rasfcn(x) F.Fval = rastriginsfcn(x); F.Ineq = x(1)^2 - 2 - x(2); end```
