# adaptthresh

Adaptive image threshold using local first-order statistics

## Description

calculates a
locally adaptive threshold for 2-D grayscale image or 3-D grayscale volume
`T`

= adaptthresh(`I`

)`I`

. The `adaptthresh`

function chooses
the threshold based on the local mean intensity (first-order statistics) in the
neighborhood of each pixel. The threshold `T`

can be used with
the `imbinarize`

function to convert the grayscale image to a
binary image.

calculates a locally adaptive threshold using a sensitivity factor towards
thresholding more pixels as foreground.`T`

= adaptthresh(`I`

,`sensitivity`

)

calculates a locally adaptive threshold using name-value pairs to control aspects of
the thresholding.`T`

= adaptthresh(___,`Name=Value`

)

## Examples

### Find Threshold and Segment Bright Rice Grains from Dark Background

Read image into the workspace.

`I = imread('rice.png');`

Use `adaptthresh`

to determine threshold to use in binarization operation.

T = adaptthresh(I, 0.4);

Convert image to binary image, specifying the threshold value.

BW = imbinarize(I,T);

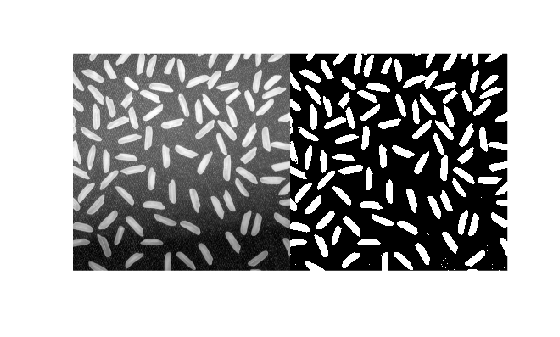

Display the original image with the binary version, side-by-side.

```
figure
imshowpair(I, BW, 'montage')
```

### Find Threshold and Segment Dark Text from Bright Background

Read image into the workspace.

`I = imread('printedtext.png');`

Using `adaptthresh`

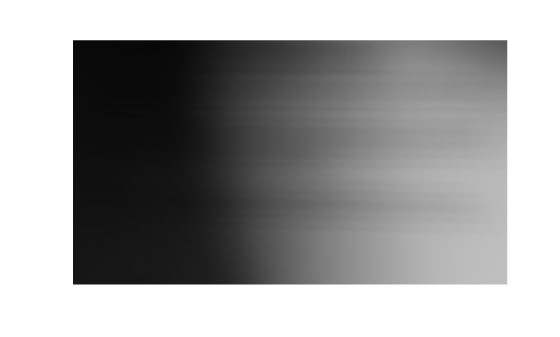

compute adaptive threshold and display the local threshold image. This represents an estimate of average background illumination.

T = adaptthresh(I,0.4,'ForegroundPolarity','dark'); figure imshow(T)

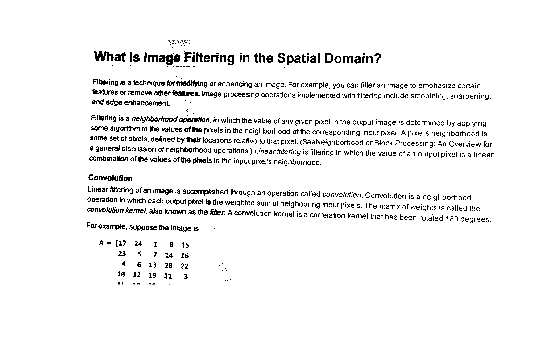

Binarize image using locally adaptive threshold

BW = imbinarize(I,T); figure imshow(BW)

### Calculate Threshold for 3-D Volume

Load 3-D volume into the workspace.

```
load mristack;
V = mristack;
```

Display the data.

figure slice(double(V),size(V,2)/2,size(V,1)/2,size(V,3)/2) colormap gray shading interp

Calculate the threshold.

J = adaptthresh(V,'neigh',[3 3 3],'Fore','bright');

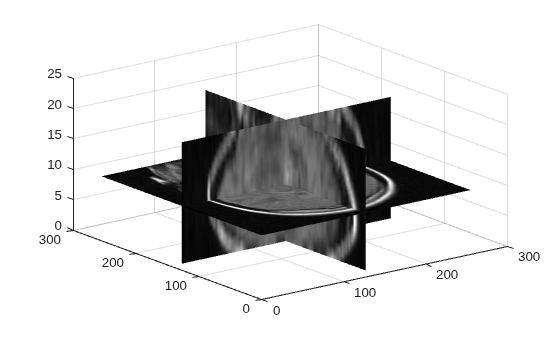

Display the threshold.

figure slice(double(J),size(J,2)/2,size(J,1)/2,size(J,3)/2) colormap gray shading interp

## Input Arguments

`I`

— Grayscale image or volume

2-D numeric matrix | 3-D numeric array

Grayscale image or volume, specified as a 2-D numeric matrix or 3-D numeric array.

The
`adaptthresh`

function expects images of data type
`double`

and `single`

to have values in the range [0, 1].
If `I`

has values outside the range [0, 1], then you can rescale values to
the expected range by using the `rescale`

function.

If the image contains `Inf`

or `NaN`

values, the behavior of `adaptthresh`

is undefined.
Propagation of `Inf`

or `NaN`

values might
not be localized to the neighborhood around `Inf`

or
`NaN`

pixels.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `uint8`

| `uint16`

| `uint32`

`sensitivity`

— Determine which pixels get thresholded as foreground pixels

`0.5`

(default) | number in the range [0, 1]

Determine which pixels get thresholded as foreground pixels, specified as a number in the range [0, 1]. High sensitivity values lead to thresholding more pixels as foreground, at the risk of including some background pixels.

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

**Example: **`T = adaptthresh(I,0.4,ForegroundPolarity="dark");`

specifies that the foreground is darker than the background.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`T = adaptthresh(I,0.4,"ForegroundPolarity","dark");`

specifies that
the foreground is darker than the background.

`NeighborhoodSize`

— Size of neighborhood used to compute local statistic around each pixel

`2*floor(size(I)/16)+1`

(default) | positive odd integer | 2-element vector of positive odd integers

Size of neighborhood used to compute local statistic around each pixel, specified as a positive odd integer or a 2-element vector of positive odd integers.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`ForegroundPolarity`

— Determine which pixels are considered foreground pixels

`"bright"`

(default) | `"dark"`

Determine which pixels are considered foreground pixels, specified using one of the following:

Value | Meaning |
---|---|

| The foreground is brighter than the background. |

| The foreground is darker than the background. |

**Data Types: **`char`

| `string`

`Statistic`

— Statistic used to compute local threshold

`"mean"`

(default) | `"median"`

| `"gaussian"`

Statistic used to compute local threshold at each pixel, specified as one of the following:

Value | Meaning |
---|---|

| The local mean intensity in the neighborhood. This technique is also called Bradley’s method [1]. |

| The local median in the neighborhood. Computation of this statistic can be slow. Consider using a smaller neighborhood size to obtain faster results. |

| The Gaussian weighted mean in the neighborhood. |

**Data Types: **`char`

| `string`

## Output Arguments

`T`

— Normalized intensity values

numeric matrix | numeric array

Normalized intensity values, returned as a numeric matrix or numeric array of the same size as
the input image or volume, `I`

. Values are clipped to the
range [0, 1].

**Data Types: **`double`

## References

[1]
Bradley, D., G. Roth, "Adapting Thresholding Using the Integral
Image," *Journal of Graphics Tools*. Vol. 12, No. 2, 2007, pp.13–21.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

`adaptthresh`

supports the generation of C code (requires MATLAB^{®}Coder™). Note that if you choose the generic`MATLAB Host Computer`

target platform,`adaptthresh`

generates code that uses a precompiled, platform-specific shared library. Use of a shared library preserves performance optimizations but limits the target platforms for which code can be generated. For more information, see Types of Code Generation Support in Image Processing Toolbox.The

`ForegroundPolarity`

and`Statistic`

arguments must be compile-time constants.

### GPU Code Generation

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

The `ForegroundPolarity`

and `Statistic`

arguments must be compile-time constants.

### Thread-Based Environment

Run code in the background using MATLAB® `backgroundPool`

or accelerate code with Parallel Computing Toolbox™ `ThreadPool`

.

This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

## Version History

**Introduced in R2016a**

### R2022b: Generate CUDA code using GPU Coder

`adaptthresh`

now supports the generation of
optimized CUDA^{®} code (requires GPU Coder™).

### R2021b: Support for thread-based environments

`adaptthresh`

now supports thread-based
environments.
