fwind2

2-D FIR filter using 2-D window method

Description

The fwind2 function designs 2-D FIR filters using the window method. fwind2 uses a 2-D window specification to design a 2-D FIR filter based on the desired frequency response. fwind2 works with 2-D windows only. Use fwind1 to create a 2-D FIR filter from a 1-D window.

You can apply the 2-D FIR filter to images by using the filter2 function.

example

h = fwind2(Hd,win) creates a 2-D FIR filter h by using an inverse Fourier transform of the desired frequency response Hd and multiplication by the window win.

h = fwind2(f1,f2,Hd,win) lets you specify the desired frequency response Hd at arbitrary frequencies f1 and f2 along the x- and y-axes.

Examples

collapse all

This example shows how to design an approximately circularly symmetric two-dimensional bandpass filter using a 2-D window method.

Create the frequency range vectors f1 and f2 using freqspace. These vectors have length 21.

[f1,f2] = freqspace(21,'meshgrid');

Compute the distance of each position from the center frequency.

r = sqrt(f1.^2 + f2.^2);

Create a matrix Hd that contains the desired bandpass response. In this example, the desired passband is between 0.1 and 0.5 (normalized frequency, where 1.0 corresponds to half the sampling frequency, or π radians).

Hd = ones(21);
Hd((r<0.1)|(r>0.5)) = 0;

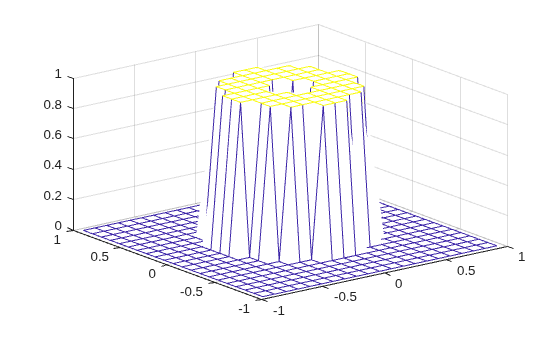

Display the ideal bandpass response.

colormap(parula(64))
mesh(f1,f2,Hd)

Figure contains an axes. The axes contains an object of type surface.

Create a 2-D Gaussian window using fspecial. Normalize the window.

win = fspecial('gaussian',21,2);
win = win ./ max(win(:));

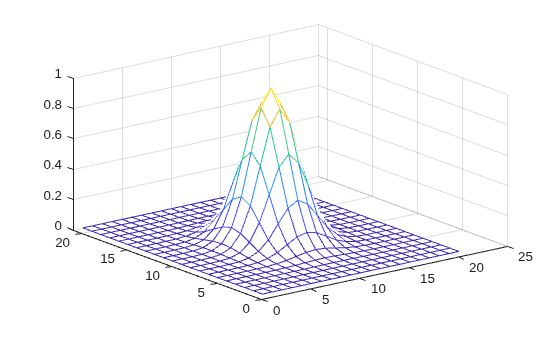

Display the window.

mesh(win)

Figure contains an axes. The axes contains an object of type surface.

Using the 2-D window, design the filter that best produces the desired frequency response

h = fwind2(Hd,win);

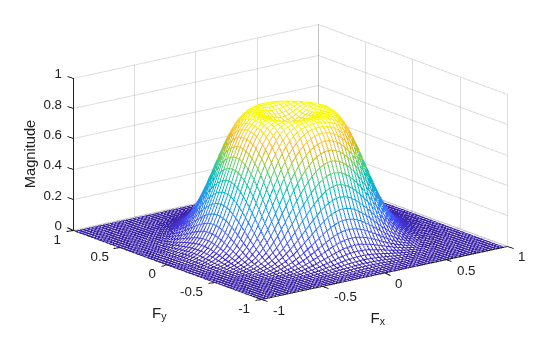

Display the actual frequency response of this filter.

freqz2(h)

Figure contains an axes. The axes contains an object of type surface.

Input Arguments

collapse all

Desired frequency response at equally spaced points in the Cartesian plane, specified as a numeric matrix. For accurate results, create Hd by using the freqspace function.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

2-D window, specified as a numeric matrix.

Data Types: single | double

Desired frequency along the x-axis. The frequency vector should be in the range [-1, 1], where 1.0 corresponds to half the sampling frequency, or π radians.

Data Types: single | double

Desired frequency along the y-axis. The frequency vector should be in the range [-1, 1], where 1.0 corresponds to half the sampling frequency, or π radians.

Data Types: single | double

Output Arguments

collapse all

2-D FIR filter, returned as a numeric matrix of the same size as win.

Data Types: double

Algorithms

fwind2 computes h using an inverse Fourier transform and multiplication by the two-dimensional window win.

hd(n1,n2)=1(2π)2ππππHd(ω1,ω2)ejω1n1ejω2n2dω1dω2

h(n1,n2)=hd(n1,n2)w(n1,n2)

References

[1] Lim, Jae S., Two-Dimensional Signal and Image Processing, Englewood Cliffs, NJ, Prentice Hall, 1990, pp. 202-213.

Introduced before R2006a
