imclose

Morphologically close image

Syntax

J = imclose(I,SE)

J = imclose(I,nhood)

Description

J = imclose(I,SE) performs morphological closing on the grayscale or binary image I, using the structuring element SE. The morphological close operation is a dilation followed by an erosion, using the same structuring element for both operations.

J = imclose(I,nhood) closes the image I, where nhood is a matrix of 0s and 1s that specifies the structuring element neighborhood.

This syntax is equivalent to imclose(I,strel(nhood)).

Examples

Use Morphological Closing to Fill Gaps in an Image

Read a binary image into the workspace and display it.

originalBW = imread('circles.png');
imshow(originalBW);

Create a disk-shaped structuring element. Use a disk structuring element to preserve the circular nature of the object. Specify a radius of 10 pixels so that the largest gap gets filled.

se = strel('disk',10);

Perform a morphological close operation on the image.

closeBW = imclose(originalBW,se);

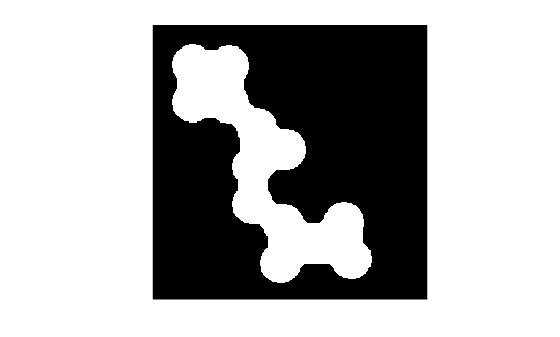

figure, imshow(closeBW)

Input Arguments

I — Input image

grayscale image | binary image

Input image, specified as a grayscale image or binary image of any dimension.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | logical

SE — Structuring element

strel object | offsetstrel object

Structuring element, specified as a single strel object or offsetstrel object. If the image I is data type logical, then the structuring element must be flat.

nhood — Structuring element neighborhood

matrix of 0s and 1s

Structuring element neighborhood, specified as a matrix of 0s and 1s.

Example: [0 1 0; 1 1 1; 0 1 0]

Output Arguments

J — Closed image

grayscale image | binary image

Closed image, returned as a grayscale image or binary image. J has the same data type as input image I.

Tips

• If the dimensionality of the image I is greater than the dimensionality of the structuring element, then the imclose function applies the same morphological closing to all planes along the higher dimensions.

  You can use this behavior to perform morphological closing on RGB images. Specify a 2-D structuring element for RGB images to operate on each color channel separately.

• When you specify a structuring element neighborhood, imclose determines the center element of nhood by floor((size(nhood)+1)/2).

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• imclose supports the generation of C code (requires MATLAB^® Coder™). Note that if you choose the generic MATLAB Host Computer target platform, imclose generates code that uses a precompiled, platform-specific shared library. Use of a shared library preserves performance optimizations but limits the target platforms for which code can be generated. For more information, see Types of Code Generation Support in Image Processing Toolbox.

• The input image I must be 2-D or 3-D.

GPU Code Generation

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

• The input image I must be 2-D or 3-D.

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Usage notes and limitations:

• gpuArray input must be of type uint8 or logical.

• The structuring element SE must be flat and 2-D.

For more information, see Image Processing on a GPU.

Version History

Introduced before R2006a

R2022b: Support for thread-based environments

imclose now supports thread-based environments.

R2017a: imclose pads image border

Starting in R2017a, imclose pads the input image border by half the size of the structuring element. Padding the image removes border artifacts when there are foreground pixels near the boundary of the input image.
