Write Callbacks in App Designer

A callback is a function that executes when a user interacts with a UI component in your app. Most components can have at least one callback. However some components, such as labels and lamps, do not have callbacks because those components only display information.

To see the list of callbacks that a component supports, select the component and click the Callbacks tab in the Component Browser.

Create a Callback Function

There are several ways to create a callback for a UI component. You might use different approaches depending on what part of App Designer you are working in. Choose the most convenient approach from the following list.

  • Right-click a component in the canvas, Component Browser, or App Layout pane, and select Callbacks > Add (callback property) callback.

    The context menu associated with a slider component. Under the Callbacks menu item, there are options to add a ValueChangedFcn callback or a ValueChangingFcn callback.

  • Select the Callbacks tab in the Component Browser. The left side of the Callbacks tab shows a list of supported callback properties. The drop-down menu next to each callback property allows you to specify a name for the callback function. The down-arrow next to the text field allows you to select a default name in angle brackets <>. If your app has existing callbacks, the drop-down includes those callbacks. Select an existing callback when you want multiple UI components to execute the same code.

    The Callbacks tab of the Component Browser with a spinner component selected. There are options for a ValueChangedFcn callback and a ValueChangingFcn callback.

  • In code Code View, in the Editor tab, click Callbacks . Or in the Code Browser on the Callbacks tab, click the button.

    Add Callback Function dialog box. There are options to choose a component and a callback from a drop-down, and to specify the callback function name.

    Specify the following options in the Add Callback Function dialog box:

    • Component — Specify the UI component that executes the callback.

    • Callback — Specify the callback property. The callback property maps the callback function to a specific interaction. Some components have more than one callback property available. For example, sliders have two callback properties: ValueChangedFcn and ValueChangingFcn. The ValueChangedFcn property executes after the user moves the slider and releases the mouse. The ValueChangingFcn property for the same component executes repeatedly while the user moves the slider.

    • Name — Specify a name for the callback function. App Designer provides a default name, but you can change it in the text field. If your app has existing callbacks, the Name field has a down-arrow next to it, indicating that you can select an existing callback from a list.

Using Callback Function Input Arguments

All callbacks in App Designer have the following input arguments in the function signature:

  • app — The app object. Use this object to access UI components in the app as well as other variables stored as properties.

  • event — An object that contains specific information about the user's interaction with the UI component.

The app argument provides the app object to your callback. You can access any component (and all component-specific properties) within any callback by using this syntax:


For example, this command sets the Value property of a gauge to 50. In this case, the name of the gauge is PressureGauge.

app.PressureGauge.Value = 50;

The event argument provides an object that has different properties, depending on the specific callback that is executing. The object properties contain information that is relevant to the type of interaction that the callback is responding to. For example, the event argument in a ValueChangingFcn callback of a slider contains a property called Value. That property stores the slider value as the user moves the thumb (before they release the mouse). Here is a slider callback function that uses the event argument to make a gauge track the value of the slider.

function SliderValueChanging(app, event)
      latestvalue = event.Value; % Current slider value
      app.PressureGauge.Value = latestvalue;  % Update gauge
To learn more about the event argument for a specific component's callback function, see the property page for that component. Right-click the component, and select Help on Selection to open the property page. For a list of property pages for all UI components, see App Building Components.

Searching for Callbacks in Your Code

If your app has a lot of callbacks, you can quickly search and navigate to a specific callback by typing part of the name in the search bar at the top of the Callbacks tab in the Code Browser. After you begin typing, the Callbacks pane clears, except for the callbacks that match your search.

Callbacks tab of the Code Browser. The search bar says Slider and the pane lists the SliderValueChanging function.

Click a search result to scroll the callback into view. Right-clicking a search result and selecting Go To places your cursor in the callback function.

Deleting Callbacks

Delete a callback by right-clicking the callback in the Callbacks tab of the Code Browser and selecting Delete from the context menu.

Callbacks tab of the Code Browser. The context menu associated with the StopButtonPushed callback function has options to delete, rename, insert at cursor, and go to.

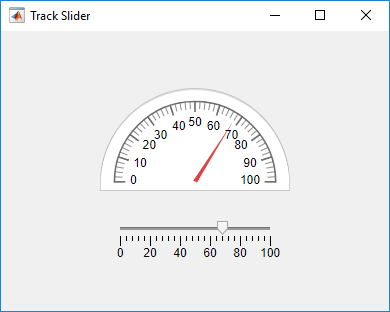

Example: App with a Slider Callback

This app contains a gauge that tracks the value of a slider as the user moves the thumb. The ValueChangingFcn callback for the slider gets the current value of the slider from the event argument. Then it moves the gauge needle to that value.
