# islocalmax2

Find local maxima in 2-D data

Since R2024a

## Syntax

``TF = islocalmax2(A)``
``[TF,P] = islocalmax2(A)``
``___ = islocalmax2(A,Name=Value)``

## Description

example

````TF = islocalmax2(A)` returns a logical array whose elements are `1` (`true`) when a local maximum is detected in the corresponding element of `A`.```

example

````[TF,P] = islocalmax2(A)` also returns the prominence corresponding to each element of `A`. For more information about the prominence calculation, see Algorithms.```

example

````___ = islocalmax2(A,Name=Value)` specifies options for finding local maxima using one or more name-value arguments with either of the output argument combinations in the previous syntaxes. For example, `TF = islocalmax2(A,MaxNumExtrema=4)` finds no more than four of the most prominent local maxima.```

## Examples

collapse all

Create a matrix, and visualize the matrix using a contour plot.

```A = peaks; contour(A) colorbar```

Determine the locations of the local maxima.

`TF = islocalmax2(A);`

Use the local maxima indicator to determine the value of each maximum.

`maxval = A(TF)`
```maxval = 3×1 3.7573 8.0752 3.5823 ```

Plot the local maxima on the contour plot.

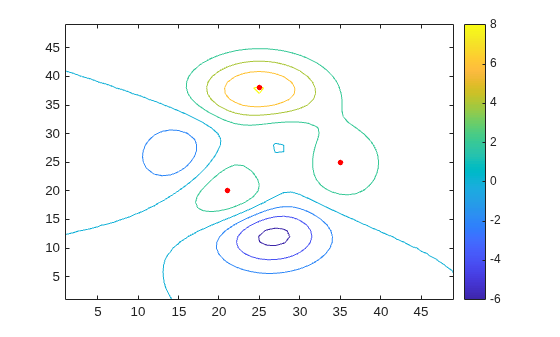

```[X,Y] = meshgrid(1:49,1:49); hold on plot3(X(TF),Y(TF),maxval,"red.",MarkerSize=12)```

Create and visualize a matrix with a flat region.

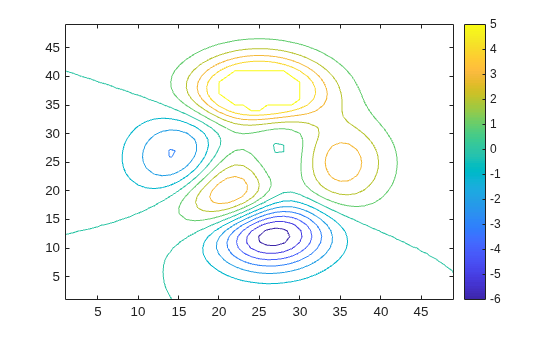

```data = peaks; A = clip(data,-Inf,5); contour(A) colorbar```

Find the local maxima. By default, `TF` is `1 (true)` for only the center point of the flat region and `TF` is `0 (false)` for all other points on the flat region.

`[TF P] = islocalmax2(A);`

To select only the point on the flat region with the smallest linear index as the local maximum, specify the `FlatSelection` name-value argument as `"first"`.

`[TF2 P2] = islocalmax2(A,FlatSelection="first");`

To select all points on the flat region as local maxima, specify `FlatSelection` as `"all"`.

`[TF3 P3] = islocalmax2(A,FlatSelection="all");`

Compare the results of the flat region selections by visualizing the extrema.

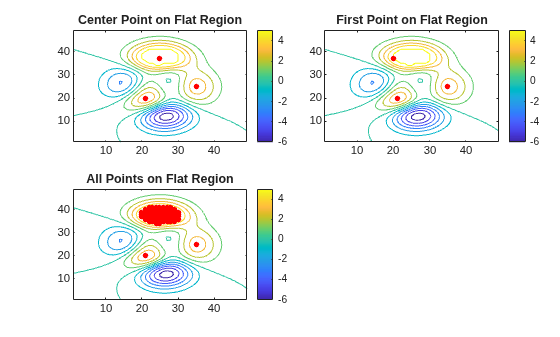

```[X,Y] = meshgrid(1:49,1:49); tiledlayout(2,2) nexttile contour(A) colorbar hold on plot3(X(TF),Y(TF),A(TF),"r.",MarkerSize=12) title("Center Point on Flat Region") nexttile contour(A) colorbar hold on plot3(X(TF2),Y(TF2),A(TF2),"r.",MarkerSize=12) title("First Point on Flat Region") nexttile contour(A) colorbar hold on plot3(X(TF3),Y(TF3),A(TF3),"r.",MarkerSize=12) title("All Points on Flat Region")```

Only the local maxima indicator changes when you specify `FlatSelection`. The prominence of all data points is the same for all values of `FlatSelection`.

`isequal(P,P2,P3)`
```ans = logical 1 ```

Create a matrix with some noise, and visualize the matrix using a contour plot.

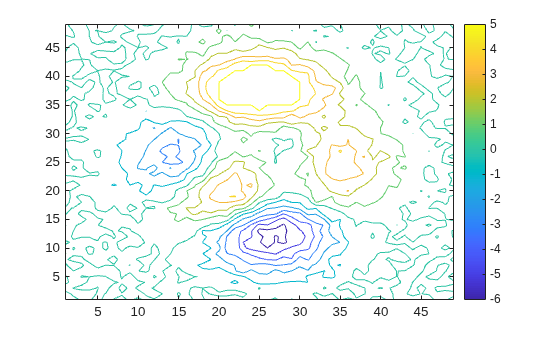

```data = peaks; data = data + randn(49)*0.3; A = clip(data,-Inf,5); contour(A) colorbar```

Find the local maxima and plot them on the surface plot. By default, `islocalmax2` finds all local maxima whose prominence is greater than 0.

`[TF P] = islocalmax2(A);`

To understand the prominence of the local maxima, sort the unique prominence values.

`maxP = sort(unique(P(:)),"descend")`
```maxP = 143×1 5.7516 3.9830 3.3811 2.6829 1.2871 1.2853 1.1382 1.1128 1.0921 1.0353 ⋮ ```

Ignore the local maxima that are a result of noise by finding only the three most prominent local maxima. When you specify the `MaxNumExtrema` name-value argument, the points in a flat region are jointly considered a single maximum point.

`TF2 = islocalmax2(A,MaxNumExtrema=3);`

Find local maxima whose prominence is greater than 1.

`TF3 = islocalmax2(A,MinProminence=1);`

Find local maxima whose prominence is greater than 3.

`TF4 = islocalmax2(A,MinProminence=3);`

Compare the results of the prominence filters by visualizing the extrema.

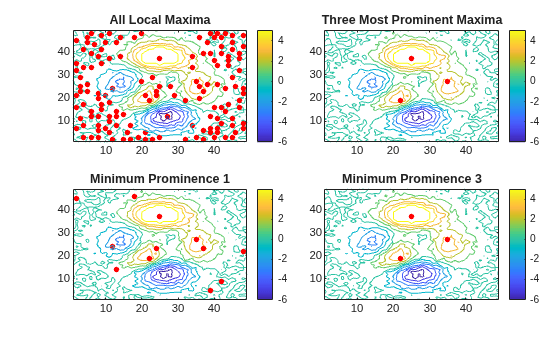

```[X,Y] = meshgrid(1:49,1:49); figure tiledlayout(2,2) nexttile contour(A) colorbar hold on plot3(X(TF),Y(TF),A(TF),"r.",MarkerSize=12) title("All Local Maxima") nexttile contour(A) colorbar hold on plot3(X(TF2),Y(TF2),A(TF2),"r.",MarkerSize=12) title("Three Most Prominent Maxima") nexttile contour(A) colorbar hold on plot3(X(TF3),Y(TF3),A(TF3),"r.",MarkerSize=12) title("Minimum Prominence 1") nexttile contour(A) colorbar hold on plot3(X(TF4),Y(TF4),A(TF4),"r.",MarkerSize=12) title("Minimum Prominence 3")```

Alternatively, you can use the `smoothdata2` function to remove noise prior to finding the local maxima.

Create a matrix of data with one isolated peak and many peaks with high density elsewhere in the data.

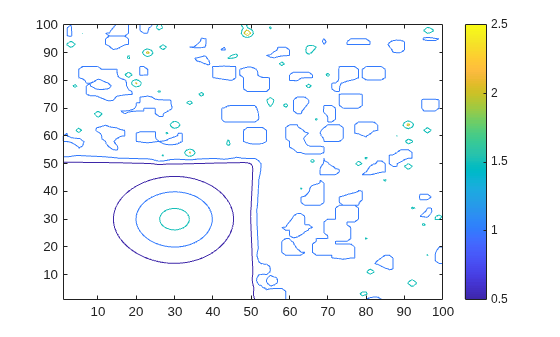

```rng("default") data = zeros(100); data(30,30) = 1000; data = smoothdata2(data,"gaussian",50); smallPeakLoc = randi(10000,1,400); tempData = zeros(100)+1; tempData(smallPeakLoc) = abs(randn(1,400))*3; tempData(1:50,1:50) = 0; A = data+tempData; A = smoothdata2(A,"gaussian",5); contour(A) colorbar```

Because of the high density of peaks elsewhere in the data, `islocalmax2` underestimates the prominence of the peak at (30,30).

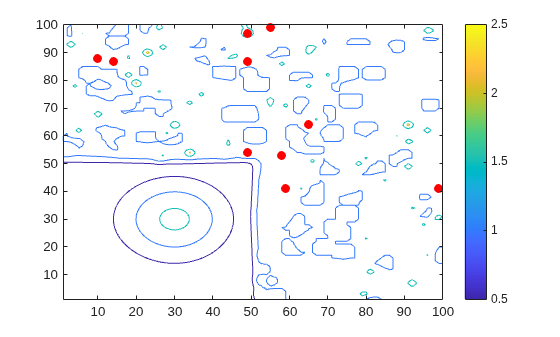

```TF = islocalmax2(A,MaxNumExtrema=10); [X,Y] = meshgrid(1:100,1:100); contour(A) colorbar hold on plot3(X(TF),Y(TF),A(TF),"r.",MarkerSize=20)```

To limit the impact of distant peaks on the prominence calculation, specify a prominence window. The isolated peak at (30,30) is now marked as a local maxima.

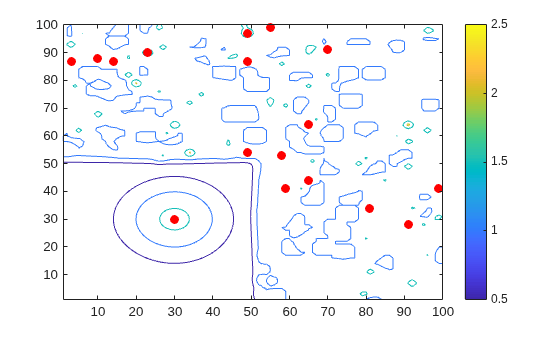

```TF2 = islocalmax2(A,ProminenceWindow=50,MaxNumExtrema=10); contour(A) colorbar hold on plot3(X(TF2),Y(TF2),A(TF2),"r.",MarkerSize=20)```

## Input Arguments

collapse all

Input data, specified as a vector, matrix, or multidimensional array.

`islocalmax2` ignores missing values when computing the local maxima.

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: ```TF = islocalmax2(A,MinProminence=2)```

Sample points, specified as a two-element cell array of vectors of sample point values. The sample points in the first vector represent the data locations along the columns of `A`, and the sample points in the second vector represent the data locations along the rows of `A`.

Both vectors must be sorted and must not contain duplicate elements. Sample points do not need to be uniformly spaced. If `A` is an `m`-by-`n` matrix, then the default value of `SamplePoints` is ```{1:n 1:m}```.

The prominence window is defined relative to the sample points. When the sample point vectors have data type `datetime` or `duration`, the prominence window size must have type `duration`.

Example: `islocalmax2(A,SamplePoints={1:5,10:2:18})`

Minimum prominence, specified as a nonnegative scalar. `islocalmax2` returns only local maxima whose prominence is at least the specified value.

Prominence window size, specified as a positive integer or `duration` scalar, two-element cell array of positive integer or `duration` values, or two-element cell array of two-element vectors of nonnegative integer or `duration` values. `islocalmax2` defines the window relative to the sample points.

• If `ProminenceWindow` is a positive integer scalar `k`, then the window is a `k`-by-`k` block centered about the current element.

• If `ProminenceWindow` is a two-element cell array of positive integers `{m n}`, then the window is an `m`-by-`n` block centered about the current element.

• If `ProminenceWindow` is a two-element cell array of two-element vectors of nonnegative integers ```{[bRow fRow] [bCol fCol]}```, then the window contains the row and column of the current element, the preceding `bRow` and succeeding `fRow` rows, and the preceding `bCol` and succeeding `fCol` columns.

If you specify `SamplePoints` using `datetime` or `duration` values, then `ProminenceWindow` must be of type `duration`.

Example: `islocalmax2(A,ProminenceWindow=4)`

Example: ```islocalmax2(A,ProminenceWindow={2 3})```

Example: ```islocalmax2(A,ProminenceWindow={[0 2] [3 3]})```

Flat region indicator for when a local maximum value is repeated in adjacent elements, specified as one of these values:

• `"center"` — Select only the center (centroid) element of a flat region as the local maximum. `"center"` indicates exactly one local maximum per flat section.

• `"first"` — Select only the first element of a flat region as the local maximum, where the first element is the element with the smallest linear index. `"first"` indicates exactly one local maximum per flat section and guarantees that all elements of `TF` with a value of `1` (`true`) are extrema.

• `"all"` — Select all the elements of a flat region as the local maxima. The number of elements of `TF` with a value of `1` (`true`) does not match the number of local maxima.

When you specify the `MinSeparation` or `MaxNumExtrema` name-value argument, flat region points are jointly considered a single maximum point.

Minimum separation between local maxima, specified as `0`, a nonnegative integer or `duration` scalar, or a two-element cell array of positive integer or `duration` values.

If `MinSeparation` is a scalar, it is the Euclidean distance between maxima. If `MinSeparation` is a cell array, the first element specifies the minimum distance between maxima along the columns of `A` and the second element specifies the minimum distance along the rows of `A`. The separation values are defined in the same units as the sample points vectors, which are `[1 2 3 ...]` by default.

When the separation value is greater than `0`, `islocalmax2` selects the most prominent local maximum and ignores all other local maxima within the specified separation. This process is repeated until there are no more local maxima detected.

If you specify `SamplePoints` using `datetime` or `duration` values, the corresponding element in `MinSeparation` must be of type `duration`.

Example: `islocalmax2(A,MinSeparation=3)`

Example: `islocalmax2(A,SamplePoints={1:10,hours(1:10)},MinSeparation={3,hours(4)})`

Maximum number of maxima to detect, specified as a positive integer scalar. `islocalmax2` finds no more than the specified number of the most prominent maxima.

## Output Arguments

collapse all

Local maxima indicator, returned as a vector, matrix, or multidimensional array. `TF` is the same size as `A`.

Data Types: `logical`

Prominence, returned as a vector, matrix, or multidimensional array. The prominence of a local maximum (or peak) measures how the peak stands out with respect to its height and location relative to other peaks. For more information about the prominence calculation, see Algorithms.

`P` is the same size as `A`. If the input data has a signed or unsigned integer type, then `P` contains unsigned integers.

## Algorithms

`islocalmax2` identifies all local maxima in the input data and follows these steps to compute the prominence of each local maximum:

1. Determine the data to use to compute the prominence.

• If the `ProminenceWindow` name-value argument is specified, use its value to draw a rectangular window of data around the current local maximum. Otherwise, use a rectangular window that includes all of the data.

2. Determine the prominence box.

• Move vertical lines left and right from the current maximum until encountering a higher maximum or the edge of the rectangular window.

• Move horizontal lines up and down from the current maximum until encountering a higher maximum or the edge of the rectangular window.

3. Compute the prominence.

• Divide the prominence box into four quadrants centered on the current local maximum.

• Identify the lowest value within each quadrant.

• Use the highest of these quadrant minimum values as the basis value. The prominence is the absolute difference between the height of the current local maximum and the basis value.

## Version History

Introduced in R2024a
