parallelplot

Create parallel coordinates plot

Syntax

p = parallelplot(tbl)
p = parallelplot(tbl,'CoordinateVariables',coordvars)
p = parallelplot(___,'GroupVariable',grpvar)
p = parallelplot(data)
p = parallelplot(data,'CoordinateData',coorddata)
p = parallelplot(___,'GroupData',grpdata)
p = parallelplot(___,Name,Value)
p = parallelplot(parent,___)

Description

example

p = parallelplot(tbl) creates a parallel coordinates plot from the table tbl and returns a ParallelCoordinatesPlot object. Each line in the plot represents a row in the table, and each coordinate variable in the plot corresponds to a column in the table. The software plots all table columns by default.

Use p to modify the object after you create it. For a list of properties, see ParallelCoordinatesPlot Properties.

example

p = parallelplot(tbl,'CoordinateVariables',coordvars) creates a parallel coordinates plot from the coordvars variables in the table tbl.

example

p = parallelplot(___,'GroupVariable',grpvar) uses the table variable specified by grpvar to group the lines in the plot. Specify this option after any of the input argument combinations in the previous syntaxes.

example

p = parallelplot(data) creates a parallel coordinates plot from the numeric matrix data.

example

p = parallelplot(data,'CoordinateData',coorddata) creates a parallel coordinates plot from the coorddata columns in the matrix data.

example

p = parallelplot(___,'GroupData',grpdata) uses the data in grpdata to group the lines in the plot. Specify this option after any of the previous input argument combinations for numeric matrix data.

example

p = parallelplot(___,Name,Value) specifies additional options using one or more name-value pair arguments. For example, you can specify the data normalization method for coordinates with numeric values. For a list of properties, see ParallelCoordinatesPlot Properties.

p = parallelplot(parent,___) creates the parallel coordinates plot in the figure, panel, or tab specified by parent.

Examples

collapse all

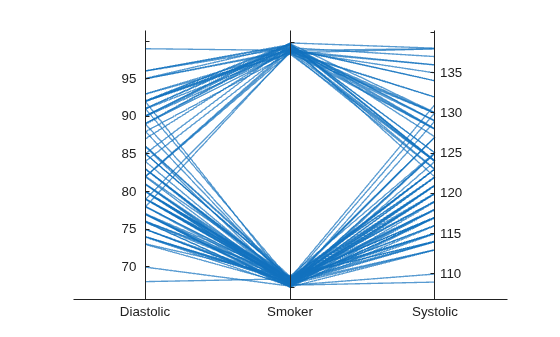

Create a parallel coordinates plot from a table of medical patient data.

Load the patients data set, and create a table from a subset of the variables loaded into the workspace. Create a parallel coordinates plot using the table. The lines in the plot correspond to individual patients. Use the plot to observe trends in the data. For example, the plot indicates that smokers tend to have higher blood pressure values (both diastolic and systolic).

load patients
tbl = table(Diastolic,Smoker,Systolic);
p = parallelplot(tbl)

p =
  ParallelCoordinatesPlot with properties:

            SourceTable: [100×3 table]
    CoordinateVariables: {'Diastolic'  'Smoker'  'Systolic'}
          GroupVariable: ''

  Show all properties

By default, the software randomly jitters plot lines so that they are unlikely to overlap perfectly along coordinate rulers. This jittering is particularly helpful for visualizing categorical data because it enables you to distinguish between plot lines more easily. For example, observe the plot lines along the Smoker coordinate ruler; the plot lines are not flush with either the true or false tick marks.

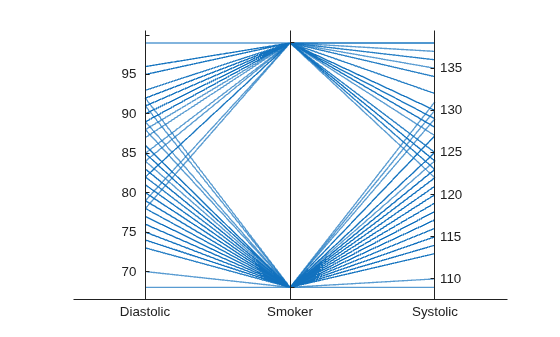

To disable the default jittering, set the Jitter property to 0.

p.Jitter = 0;

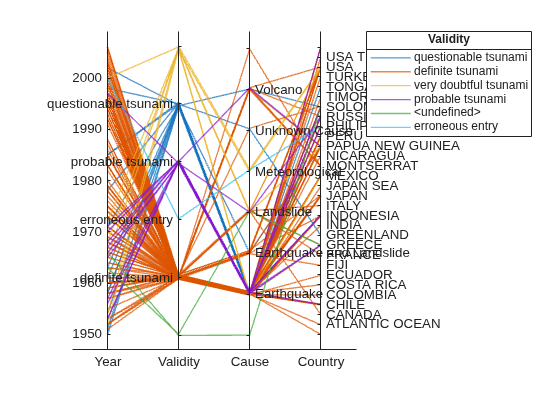

Create a parallel coordinates plot from a table of tsunami data. Specify the table variables to display and their order, and group the lines in the plot according to one of the variables.

Read the tsunami data into the workspace as a table.

tsunamis = readtable('tsunamis.xlsx');

Create a parallel coordinates plot using a subset of the variables in the table. First, increase the figure window size to prevent overcrowding in the plot. Then, to specify the variables and their order, use the 'CoordinateVariables' name-value pair argument. To group occurrences according to their validity, set the 'GroupVariable' name-value pair argument to 'Validity'. The lines in the plot correspond to individual tsunami occurrences. The plot indicates that most of the occurrences in the data set that have a Validity value are considered definite tsunamis.

figure('Units','normalized','Position',[0.3 0.3 0.45 0.4])
coordvars = {'Year','Validity','Cause','Country'};
p = parallelplot(tsunamis,'CoordinateVariables',coordvars,'GroupVariable','Validity');

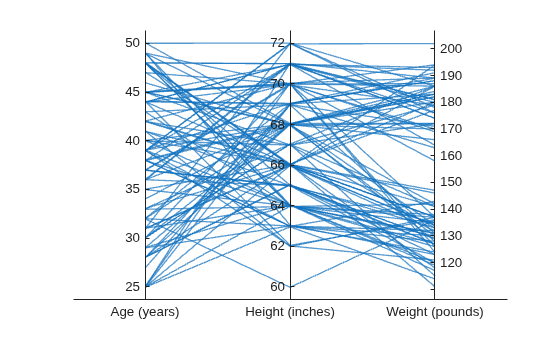

Create a parallel coordinates plot from a matrix containing medical patient data. Bin the values in one of the columns in the matrix, and group the lines in the plot using the binned values.

Load the patients data set, and create a matrix from the Age, Height, and Weight values. Create a parallel coordinates plot using the matrix data. Label the coordinate variables in the plot. The lines in the plot correspond to individual patients.

load patients
X = [Age Height Weight];
p = parallelplot(X)
p =
  ParallelCoordinatesPlot with properties:

              Data: [100×3 double]
    CoordinateData: [1 2 3]
         GroupData: []

  Show all properties

p.CoordinateTickLabels = {'Age (years)','Height (inches)','Weight (pounds)'};

Create a new categorical variable that groups each patient into one of three categories: short, average, or tall. Set the bin edges such that they include the minimum and maximum Height values.

min(Height)
ans = 60
max(Height)
ans = 72
binEdges = [60 64 68 72];
bins = {'short','average','tall'};
groupHeight = discretize(Height,binEdges,'categorical',bins);

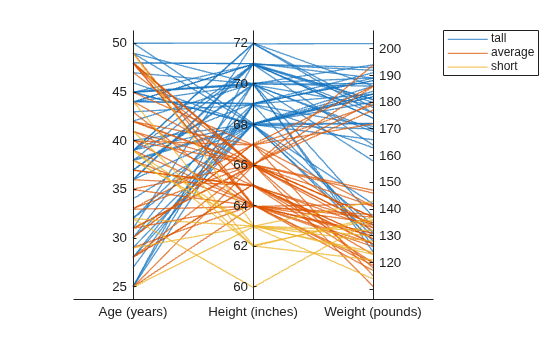

Now use the groupHeight values to group the lines in the parallel coordinates plot. The plot indicates that short patients tend to weigh less than tall patients.

p.GroupData = groupHeight;

Create parallel coordinates plots from a matrix containing medical patient data. For each plot, specify the columns of the matrix to display, and group the lines in the plot according to a separate variable.

Load the patients data set, and create a matrix from some of the variables loaded into the workspace.

load patients
X = [Age Height Weight];

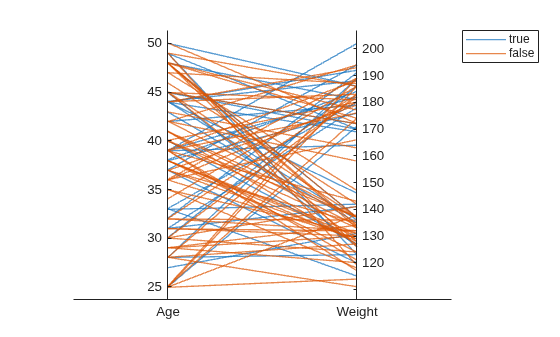

Create a parallel coordinates plot using a subset of the columns in the matrix X. To specify the columns and their order, use the 'CoordinateData' name-value pair argument. Group patients according to their smoker status by passing the Smoker values to the 'GroupData' name-value pair argument. The lines in the plot correspond to individual patients. The plot indicates that no clear relationship exists between smoker status and either age or weight.

coorddata = [1 3];
p = parallelplot(X,'CoordinateData',coorddata,'GroupData',Smoker)
p =
  ParallelCoordinatesPlot with properties:

              Data: [100×3 double]
    CoordinateData: [1 3]
         GroupData: [100×1 logical]

  Show all properties

p.CoordinateTickLabels = {'Age','Weight'};

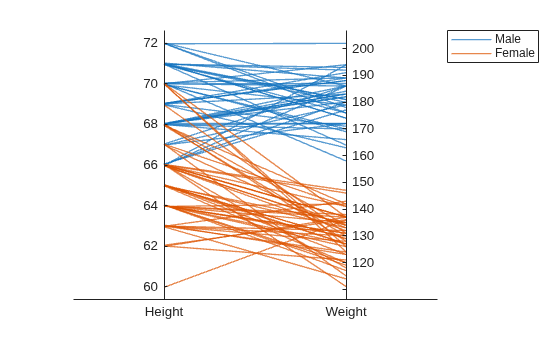

Create another parallel coordinates plot using a different subset of the columns in X. Group the patients according to their gender. The plot indicates that the men are taller and weigh more than the women.

coorddata2 = [2 3];
p2 = parallelplot(X,'CoordinateData',coorddata2,'GroupData',Gender)
p2 =
  ParallelCoordinatesPlot with properties:

              Data: [100×3 double]
    CoordinateData: [2 3]
         GroupData: {100×1 cell}

  Show all properties

p2.CoordinateTickLabels = {'Height','Weight'};

Create a parallel coordinates plot from a table of power outage data. Change the normalization method for the numeric coordinate variables.

Read the power outage data into the workspace as a table. Display the first few rows of the table.

outages = readtable('outages.csv');
head(outages)
ans=8×6 table
      Region          OutageTime        Loss     Customers     RestorationTime           Cause
    ___________    ________________    ______    __________    ________________    _________________

    'SouthWest'    2002-02-01 12:18    458.98    1.8202e+06    2002-02-07 16:50    'winter storm'
    'SouthEast'    2003-01-23 00:49    530.14    2.1204e+05                 NaT    'winter storm'
    'SouthEast'    2003-02-07 21:15     289.4    1.4294e+05    2003-02-17 08:14    'winter storm'
    'West'         2004-04-06 05:44    434.81    3.4037e+05    2004-04-06 06:10    'equipment fault'
    'MidWest'      2002-03-16 06:18    186.44    2.1275e+05    2002-03-18 23:23    'severe storm'
    'West'         2003-06-18 02:49         0             0    2003-06-18 10:54    'attack'
    'West'         2004-06-20 14:39    231.29           NaN    2004-06-20 19:16    'equipment fault'
    'West'         2002-06-06 19:28    311.86           NaN    2002-06-07 00:51    'equipment fault'

Create a new variable called OutageDuration that indicates how long each power outage lasted. Convert OutageDuration to the number of days each power outage lasted. Add the new variable to the outages table, and call it OutageDays.

OutageDuration = outages.RestorationTime - outages.OutageTime;
outages.OutageDays = days(OutageDuration);

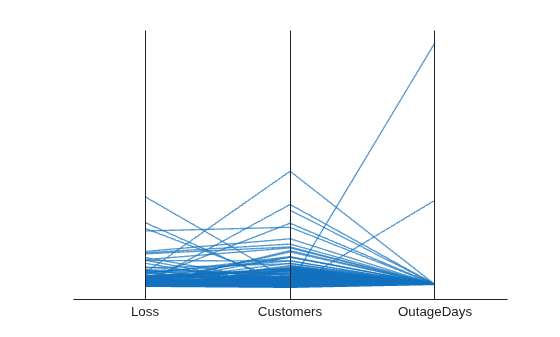

Create a parallel coordinates plot using the Loss, Customers, and OutageDays variables. Because the coordinate variables are numeric, display the values in the plot as z-scores, without any jittering, using the 'DataNormalization' and 'Jitter' name-value pair arguments.

coordvars = {'Loss','Customers','OutageDays'};
p = parallelplot(outages,'CoordinateVariables',coordvars,'DataNormalization','zscore','Jitter',0);

The OutageDays variable contains one value that is more than 30 standard deviations away from the mean OutageDays value and another value that is more than 10 standard deviations away from the mean. Hover over the values in the plot to display data tips. Each data tip indicates the row in the table corresponding to the line in the plot.

Find the rows in the outages table that have the identified extreme OutageDays values. Notice that the RestorationTime values for these two power outages are suspicious.

outliers = outages([1011 269],:)
outliers=2×7 table
      Region          OutageTime        Loss     Customers     RestorationTime           Cause           OutageDays
    ___________    ________________    ______    __________    ________________    __________________    __________

    'NorthEast'    2009-08-20 02:46       NaN    1.7355e+05    2042-09-18 23:31    'severe storm'           12083
    'MidWest'      2008-02-07 06:18    2378.7             0    2019-08-14 16:16    'energy emergency'      4206.4

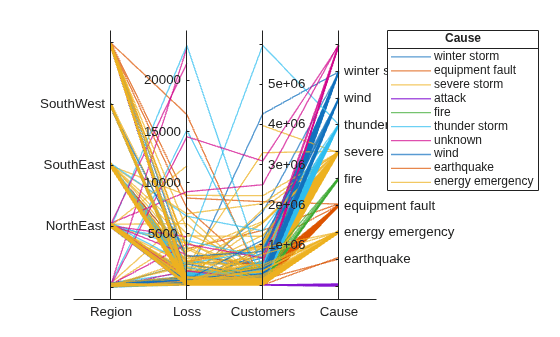

Create a parallel coordinates plot. Reorder the categories of one of the coordinate variables.

Read data on power outages into the workspace as a table.

outages = readtable('outages.csv');

Create a parallel coordinates plot using a subset of the columns in the table. Group the lines in the plot according to the event that caused the power outage.

coordvars = [1 3 4 6];
p = parallelplot(outages,'CoordinateVariables',coordvars,'GroupVariable','Cause');

Change the order of the events in Cause by updating the source table. First, convert Cause to a categorical variable, specify the new order of the events, and use the reordercats function to create a new variable called orderCause. Then, replace the original Cause variable with the new orderCause variable in the source table of the plot.

categoricalCause = categorical(p.SourceTable.Cause);
newOrder = {'attack','earthquake','energy emergency','equipment fault', ...
    'fire','severe storm','thunder storm','wind','winter storm','unknown'};
orderCause = reordercats(categoricalCause,newOrder);
p.SourceTable.Cause = orderCause;

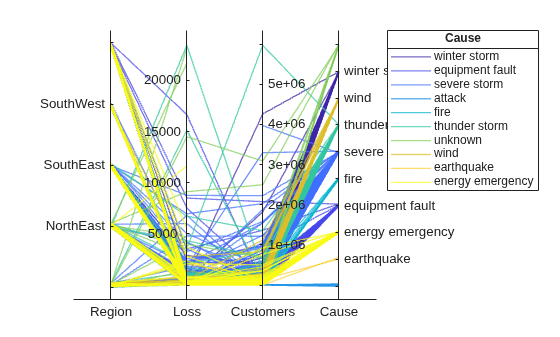

Because the Cause variable contains more than seven categories, some of the groups have the same color in the plot. Assign distinct colors to every group by changing the Color property of p.

p.Color = parula(10);

Input Arguments

collapse all

Source table, specified as a table.

You can create a table from workspace variables using the table function, or you can import data as a table using the readtable function.

The SourceTable property of the ParallelCoordinatesPlot object stores the source table.

Table variables to display as coordinates, specified in one of these forms:

  • Numeric vector — Indicating the indices of the table variables. For example, parallelplot(tbl,'CoordinateVariables',[1 5:7]) selects the first, fifth, sixth, and seventh variables in the table to display as coordinates.

  • String array or cell array of character vectors — Indicating the names of the table variables. For example, parallelplot(tbl,'CoordinateVariables',{'Age','Weight','Height'}) selects the variables named 'Age', 'Weight', and 'Height' to display as coordinates.

  • Logical vector — Containing true elements for the selected table variables.

The CoordinateVariables property of the ParallelCoordinatesPlot object stores the coordvars value. The CoordinateTickLabels property stores the selected variable names.

Table variable for grouping data, specified in one of these forms:

  • Character vector or string scalar — Indicating one of the table variable names

  • Numeric scalar — Indicating the table variable index

  • Logical vector — Containing one true element for the table variable

The values associated with your table variable must form a numeric vector, logical vector, categorical array, string array, or cell array of character vectors.

grpvar splits the rows in tbl into unique groups. By default, the software colors the associated plot lines according to their group value. Plot lines corresponding to the same group have the same color. However, parallelplot assigns a maximum of seven unique group colors. When the total number of groups exceeds the number of specified colors, parallelplot cycles through the specified colors.

In the legend, parallelplot displays the group names in order of their first appearance in the GroupData property of ParallelCoordinatesPlot.

Example: 'Smoker'

Example: 3

Input data, specified as a numeric matrix.

The Data property of the ParallelCoordinatesPlot object stores the data values.

Matrix columns to display as coordinates, specified in one of these forms:

  • Numeric vector — Indicating the columns of the input data matrix. For example, parallelplot(data,'CoordinateData',[1 5:7]) selects the first, fifth, sixth, and seventh columns in data to display as coordinates.

  • Logical vector — Containing true elements for the selected columns of the input data matrix.

The CoordinateData property of the ParallelCoordinatesPlot object stores the coorddata value.

Values for grouping matrix data, specified as a numeric vector, logical vector, categorical array, string array, or cell array of character vectors.

grpdata splits the rows in data into unique groups. By default, the software colors the associated plot lines according to their group value. Plot lines corresponding to the same group have the same color. However, parallelplot assigns a maximum of seven unique group colors. When the total number of groups exceeds the number of specified colors, parallelplot cycles through the specified colors.

In the legend, parallelplot displays the group names in order of their first appearance in the GroupData property of ParallelCoordinatesPlot.

Example: [1 2 1 3 2 1 3 3 2 3]

Example: categorical({'blue','red','yellow','blue','yellow','red','red','yellow','blue','red'})

Parent container in which to plot, specified as a Figure, Panel, or Tab object.

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: parallelplot(data,'GroupData',grpdata,'DataNormalization','zscore','Jitter',0) specifies to group the numeric data in data by using grpdata and to display the data as z-scores, without any jittering.

Plot title, specified as a character vector or string scalar. By default, the plot has no title.

Example: p = parallelplot(__,'Title','My Title Text')

Example: p.Title = 'My Title Text'

Normalization method for coordinates with numeric values, specified as one of the following options.

MethodDescription
'range'Display raw data along coordinate rulers that have independent minimum and maximum limits
'none'Display raw data along coordinate rulers that have the same minimum and maximum limits
'zscore'Display z-scores (with a mean of 0 and a standard deviation of 1) along each coordinate ruler
'scale'Display values scaled by standard deviation along each coordinate ruler
'center'Display data centered to have a mean of 0 along each coordinate ruler
'norm'Display 2-norm values along each coordinate ruler

For more information about these methods, see normalize.

For a coordinate variable that is a logical vector, datetime array, duration array, categorical array, string array, or cell array of character vectors, parallelplot evenly distributes the unique possible values along the coordinate ruler, regardless of the normalization method.

Example: p = parallelplot(__,'DataNormalization','none')

Example: p.DataNormalization = 'zscore'

Data displacement distance along the coordinate rulers, specified as a numeric scalar in the interval [0,1]. The Jitter value determines the maximum distance to displace plot lines from their true value along the coordinate rulers, where the displacement is a uniform random amount. If you set the Jitter property to 1, then adjacent jitter regions just touch. Set the Jitter property to 0 to display the true data values.

Some amount of jitter is particularly helpful for visualizing categorical data because the jittering enables you to distinguish between plot lines more easily. However, the Jitter value affects all coordinate variables, including numeric variables.

Example: p = parallelplot(__,'Jitter',0.5)

Example: p.Jitter = 0.2

Group color, specified in one of these forms:

  • Character vector designating a color name, short name, or hexadecimal color code. A hexadecimal color code starts with a hash symbol (#) and is followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Thus, the color codes '#FF8800', '#ff8800', '#F80', and '#f80' are equivalent.

  • String array or cell array of character vectors designating one or more color names, short names, or hexadecimal color codes.

  • Three-column matrix of RGB values in the range [0,1]. The three columns represent the R value, G value, and B value.

Choose among these predefined colors, their equivalent RGB triplets, and their hexadecimal color codes.

Color NameShort NameRGB TripletHexadecimal Color CodeAppearance
'red''r'[1 0 0]'#FF0000'

'green''g'[0 1 0]'#00FF00'

'blue''b'[0 0 1]'#0000FF'

'cyan' 'c'[0 1 1]'#00FFFF'

'magenta''m'[1 0 1]'#FF00FF'

'yellow''y'[1 1 0]'#FFFF00'

'black''k'[0 0 0]'#000000'

'white''w'[1 1 1]'#FFFFFF'

Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB® uses in many types of plots.

RGB TripletHexadecimal Color CodeAppearance
[0 0.4470 0.7410]'#0072BD'

[0.8500 0.3250 0.0980]'#D95319'

[0.9290 0.6940 0.1250]'#EDB120'

[0.4940 0.1840 0.5560]'#7E2F8E'

[0.4660 0.6740 0.1880]'#77AC30'

[0.3010 0.7450 0.9330]'#4DBEEE'

[0.6350 0.0780 0.1840]'#A2142F'

By default, parallelplot assigns a maximum of seven unique group colors. When the total number of groups exceeds the number of specified colors, parallelplot cycles through the specified colors.

Example: p = parallelplot(__,'Color',{'blue','black','green'})

Example: p.Color = [0 0 1; 0 0.5 0.5; 0.5 0.5 0.5]

Example: p.Color = {'#EDB120','#77AC30','#7E2F8E'}

Tips

  • Use data tips to explore the data in your ParallelCoordinatesPlot object. Hover over the parallel coordinates plot to display a data tip. The software highlights the corresponding line in the plot. For an example, see Change Data Normalization in Plot.

Introduced in R2019a
