Set color shading properties
shading function controls the color shading
of surface and patch graphics objects.
shading flat each mesh
line segment and face has a constant color determined by the color
value at the endpoint of the segment or the corner of the face that
has the smallest index or indices.
shading faceted flat
shading with superimposed black mesh lines. This is the default shading
shading interp varies
the color in each line segment and face by interpolating the colormap
index or true color value across the line or face.
the shading type to the objects in the axes specified by
instead of the current axes. Use single quotes when using a function
form. For example:

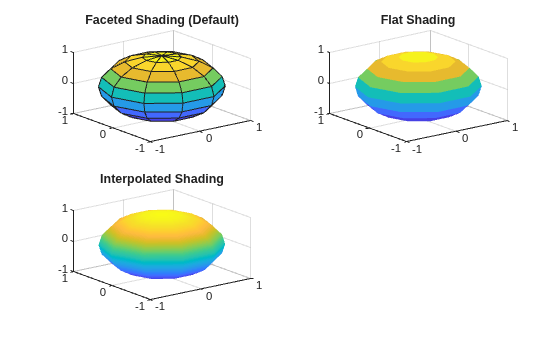

Display Sphere with Different Types of Shading
Starting in R2019b, you can display a tiling of plots using the
nexttile functions. Call the
tiledlayout function to create a 2-by-2 tiled chart layout. Call the
nexttile function to create the axes. Then display three different spheres using different types of shading.
tiledlayout(2,2) nexttile sphere(16) title('Faceted Shading (Default)') nexttile sphere(16) shading flat title('Flat Shading') nexttile sphere(16) shading interp title('Interpolated Shading')
shading sets the
of all surface and patch graphics objects in the current axes.
the appropriate values, depending on whether the surface or patch
objects represent meshes or solid surfaces.
