jitterIntensity
Description
You can use data augmentation to increase the variety and quantity of training
data in deep learning applications, especially when available training data is limited, as is
typical in medical imaging. Data augmentation can be intensity augmentation, geometric
augmentation, or color augmentation. The jitterIntensity
function performs
intensity augmentation of grayscale images and intensity volumes by randomly augmenting their
brightness, contrast, and gamma correction.
jitters the intensity of grayscale image or intensity volume J
= jitterIntensity(I
,Name=Value
)I
by
randomly selecting brightness (shifting of intensity), contrast (scaling of intensity), and
gamma correction values. To specify ranges for these values, use the corresponding
name-value arguments.
Examples
Jitter Intensity of 2-D Computed Tomography (CT) Image
Import a grayscale CT image into the workspace. Crop the image to retain only the object of interest.
I = dicomread("CT-MONO2-16-ankle.dcm");
I = imcrop(I,[101 51 290 420]);
Randomly shift the intensity of the image I
multiple times.
J1 = jitterIntensity(im2single(I),Brightness=0.75); J2 = jitterIntensity(im2single(I),Brightness=0.75); J3 = jitterIntensity(im2single(I),Brightness=0.75);

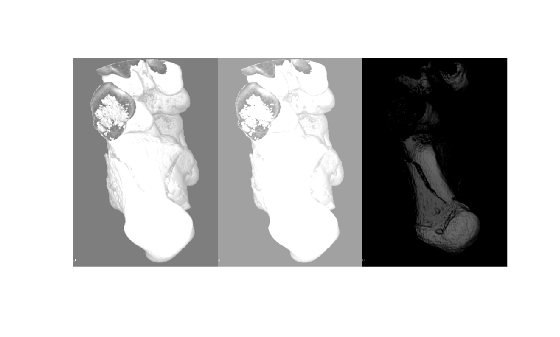

Visualize the augmented CT images to observe the impact of the randomly selected brightness value.
figure montage({J1 J2 J3})
Jitter Intensity of 3-D Magnetic Resonance Imaging (MRI) Volume
Load an MRI intensity volume into the workspace.
load("mristack.mat","mristack"); V = mristack;

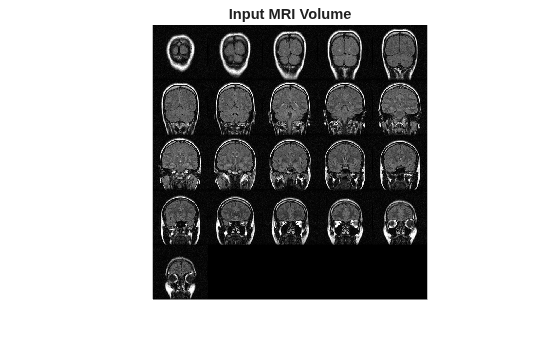

Visualize the MRI volume.
figure
montage(V)
title("Input MRI Volume")
Randomly shift and scale the intensity of the volume V
.
jitterV = jitterIntensity(V,Brightness=[-0.1 0.2],Contrast=3);

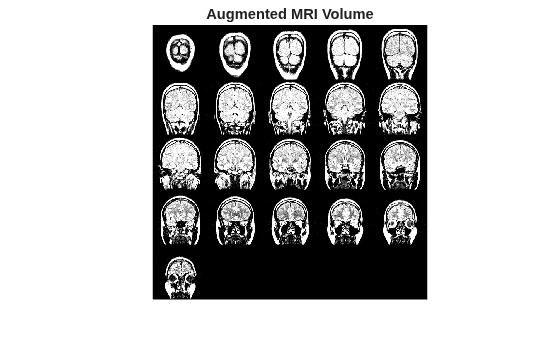

Visualize the augmented MRI volume.
figure
montage(jitterV)
title("Augmented MRI Volume")
Augment Datastore for Deep Learning
Specify the location of a directory containing DICOM image files. Create a datastore for deep learning from the DICOM files.
dicomDir = "dog"; dicomds = imageDatastore(dicomDir,FileExtensions=".dcm",ReadFcn=@(x)dicomread(x));
Transform the datastore by gamma-correcting the intensity of the images with a random gamma value.
jitterds = transform(dicomds,@(x)jitterIntensity(im2single(x),Gamma=[2 3]));

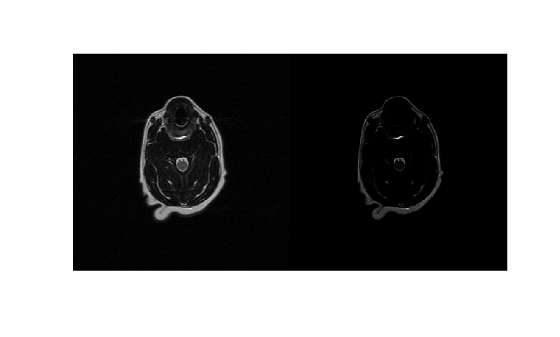

Visualize the original and augmented datastore images.
dicomImage = read(dicomds);
jitterImage = read(jitterds);
figure
imshowpair(dicomImage,jitterImage,"montage")
Input Arguments
I
— Grayscale image or intensity volume
2-D numeric matrix | 3-D numeric array
Grayscale image or intensity volume, specified as a 2-D numeric matrix or 3-D numeric array, respectively.
The function does not support 3-D RGB images and 4-D RGB volumes. For color
augmentation of 3-D RGB images, see jitterColorHSV
.
Data Types: single
| double
| int16
| uint8
| uint16
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: J = jitterIntensity(I,Brightness=0.75,Contrast=3,Gamma=[2 3])
augments the intensity of I
by randomly selecting parameters from the
ranges specified in the name-value arguments, and returns the augmented image
J
.
Brightness
— Brightness range
0
(default) | scalar in the range [0,1] | two-element vector in the range [–1, 1]
Brightness range, specified as a scalar in the range [0,1] or a two-element vector
with elements in the range [–1, 1]. If you specify this value as a scalar,
b, jitterIntensity
shifts the intensity of the
image or volume by a randomly selected value from the range [–b,
b]. If you specify this value as a vector,
[b1 b2],
jitterIntensity
shifts the intensity of the image or volume by a
randomly selected value from the range [b1,
b2]. You must specify values for
b1 and
b2 such that
b2 ≥
b1.
Example: Brightness=0.75
shifts the intensity by a randomly
selected value from the range [–0.75, 0.75].
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Contrast
— Contrast range
0
(default) | nonnegative scalar | two-element nonnegative vector
Contrast range, specified as a nonnegative scalar or two-element nonnegative
vector. If you specify this value as a scalar, c,
jitterIntensity
scales the intensity of the image or volume by a
randomly selected value from the range [min,
1+c], where min is the higher of
1–c and 0. If you specify the value as a vector,
[c1 c2],
jitterIntensity
scales the intensity of the image or volume by a
randomly selected value from the range [c1,
c2].
Example: Contrast=3
scales the intensity by a randomly selected
value from the range [0, 4].
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Gamma
— Gamma range
0
(default) | nonnegative scalar | two-element nonnegative vector
Gamma range, specified as a nonnegative scalar or two-element nonnegative vector.
If you specify the value as a scalar, g,
jitterIntensity
gamma-corrects the intensity of the image or
volume with a randomly selected gamma value from the range [min,
1+g], where min is the higher of
1-g and 0. If you specify the value as a vector,
[g1 g2],
jitterIntensity
gamma-corrects the intensity of the image or
volume with a randomly selected gamma value from the range
[g1,
g2].
Example: Gamma=[2 3]
gamma-corrects the intensity with a
randomly selected gamma value from the range [2, 3].
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Output Arguments
J
— Jittered image or volume
2-D numeric matrix | 3-D numeric array
Jittered image or volume, returned as a numeric matrix or array of the same size and
data type as the input image or volume I
. If the input image or
volume I
is of the data type single or double, the function rescales
the intensities in J
to the range [0, 1].
Version History
Introduced in R2022b
