getOccupancy

Get occupancy probability of locations

Syntax

occval = getOccupancy(map3D,xyz)

Description

occval = getOccupancy(map3D,xyz) returns an array of probability occupancy values at the specified xyz locations in the occupancyMap3D object. Values close to 1 represent a high certainty that the cell contains an obstacle. Values close to 0 represent certainty that the cell is not occupied and obstacle-free.

Examples

Check Occupancy Status and Get Occupancy Values in 3-D Occupancy Map

Import a 3-D occupancy map.

map3D = importOccupancyMap3D("citymap.ot")

map3D =
  occupancyMap3D with properties:

    ProbabilitySaturation: [1.0000e-03 0.9990]
               Resolution: 1
        OccupiedThreshold: 0.6500
            FreeThreshold: 0.2000

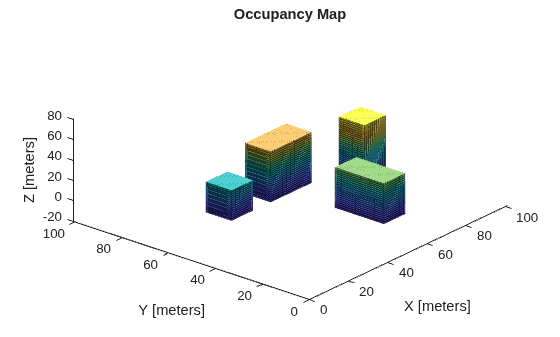

Display the map.

show(map3D)

Check the occupancy statuses of different locations and get their occupancy values.

iOccVal1 = checkOccupancy(map3D,[50 15 0])

iOccVal1 =
0

OccVal1 = getOccupancy(map3D,[50 15 0])

OccVal1 =
0.0019

iOccVal2 = checkOccupancy(map3D,[50 15 15])

iOccVal2 =
1

OccVal2 = getOccupancy(map3D,[50 15 15])

OccVal2 =
0.6500

iOccVal3 = checkOccupancy(map3D,[50 15 45])

iOccVal3 =
-1

OccVal3 = getOccupancy(map3D,[50 15 45])

OccVal3 =
0.5000

Input Arguments

map3D — 3-D occupancy map

occupancyMap3D object

3-D occupancy map, specified as an occupancyMap3D object.

xyz — World coordinates

n-by-3 matrix

World coordinates, specified as an n-by-3 matrix of [x y z] points, where n is the number of world coordinates.

Output Arguments

occval — Probability occupancy values

column vector

Probability occupancy values, returned as a column vector with the same length as xyz.

Values close to 0 represent certainty that the cell is not occupied and obstacle-free.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

getOccupancy does not support code generation using the packNGo (MATLAB Coder) function if you set the packType argument to "flat".

Version History

Introduced in R2019b
