cellLoad

Load on geometry cell

Since R2023a

Description

A cellLoad object contains a description of a load on a cell of a geometry. An femodel object contains an array of cellLoad objects in its CellLoad property.

Creation

Syntax

model.CellLoad(CellID) = cellLoad(Name=Value)

model.CellLoad = cellLoad(Name=Value)

Description

model.CellLoad(CellID) = cellLoad(Name=Value) creates a cellLoad object and sets properties using one or more name-value arguments. This syntax assigns the specified structural, thermal, or electromagnetic load to the specified cells of the geometry stored in the femodel object model. For example, model.CellLoad(1) = cellLoad(Heat=10) specifies that cell 1 is an internal heat source.

Note

Acceleration due to gravity specified on any cell automatically extends to the entire geometry.

model.CellLoad = cellLoad(Name=Value) assigns the specified load to the entire geometry. For example, model.CellLoad = cellLoad(Gravity=[0 0 -9.8]) specifies the gravity load on all cells of the geometry.

Input Arguments

CellID — Cell IDs

vector of positive integers

Cell IDs, specified as a vector of positive integers. Find the cell IDs using pdegplot with the CellLabels value set to "on".

Data Types: double

Properties

Gravity — Acceleration due to gravity

vector

Acceleration due to gravity, specified as a vector of three elements for a 3-D model. Acceleration due to gravity is always a global assignment applied to the entire geometry.

Data Types: double

Temperature — Thermal load

real number | SteadyStateThermalResults object | TransientThermalResults object

Thermal load, specified as a real number, SteadyStateThermalResults object, or TransientThermalResults object. This property must be specified in units consistent with those of the geometry and material properties. For TransientThermalResults, you can access results for a particular time-step by using the filterByIndex function.

Tip

If you specify a thermal load, you must also specify a reference temperature using model.ReferenceTemperature. For details, see the description of the ReferenceTemperature property in femodel.

Heat — Heat source

real number | function handle

Heat source, specified as a real number or function handle. Use a function handle to specify an internal heat source that depends on space, time, or temperature. For details, see Nonconstant Parameters of Finite Element Model.

The Heat argument of cellLoad specifies a cell of a 3-D geometry to be an internal heat generator (heat source). You can specify multiple cells or the entire 3-D geometry to be an internal heat source.

Data Types: double | function_handle

ChargeDensity — Charge density

real number | function handle

Charge density, specified as a real number or function handle. Use a function handle to specify a charge density that depends on the coordinates. For details, see Nonconstant Parameters of Finite Element Model.

Data Types: double | function_handle

CurrentDensity — Current density

real number | vector | function handle | ConductionResults object

Current density, specified as a real number, vector, function handle, or a ConductionResults object. Use a function handle to specify a nonconstant current density. For details, see Nonconstant Parameters of Finite Element Model.

For magnetostatic analysis, the current density must be a vector of three elements, a ConductionResults object, or a function handle.

For harmonic analysis with an electric field type, the toolbox multiplies the specified current density by -i and by frequency. The current density must be a vector of three elements or a function handle that depends on the coordinates.

For harmonic analysis with a magnetic field type, the toolbox uses the curl of the specified current density. The current density must be a vector of three elements or a function handle that depends on the coordinates for a 3-D model.

Data Types: double | function_handle

Magnetization — Magnetization

vector | function handle

Magnetization, specified as a vector of three elements or a function handle. Use a function handle to specify a magnetization that depends on the coordinates. For details, see Nonconstant Parameters of Finite Element Model.

Data Types: double | function_handle

Examples

Magnetization on Cell

Specify magnetization on a cell for an femodel object representing a magnetostatic problem.

Create and plot a geometry that consists of two nested cylinders.

gm = multicylinder([0.01,0.015],0.05);

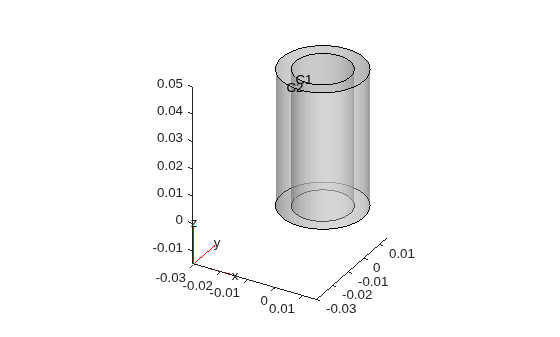

pdegplot(gm,CellLabels="on",FaceAlpha=0.4);

Create an femodel object for solving a magnetostatic problem, and assign the geometry to the model.

model = femodel(AnalysisType="magnetostatic", ...
                Geometry=gm);

To make the inner cylinder represent a permanent magnet, specify the uniform magnetization in the positive x-direction.

model.CellLoad(1) = cellLoad(Magnetization=[1 0 0]);
model.CellLoad

ans =
  1×2 cellLoad array

Properties for analysis type: magnetostatic

Index    CurrentDensity    Magnetization
  1            []             [1 0 0]
  2            []               []

  Show all properties

Gravity Load on Bimetallic Beam

Specify the gravity load for an femodel object representing a static structural problem.

Create and plot a bimetallic beam geometry.

L = 0.5;
W = 0.1;
H = 0.1;
gm = multicuboid(L,W,[H,H],Zoffset=[0,H]);

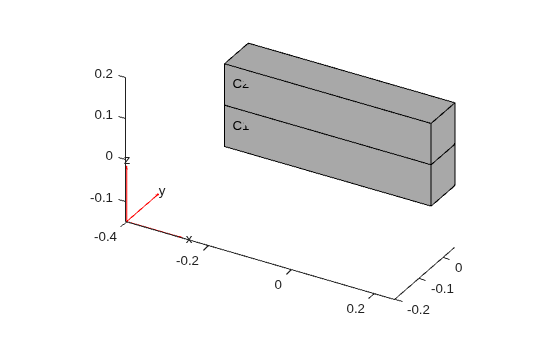

pdegplot(gm,CellLabels="on");

Create an femodel object for solving a static structural problem, and assign the geometry to the model.

model = femodel(AnalysisType="structuralStatic", ...
                Geometry=gm);

Specify the gravity load on the entire beam.

model.CellLoad = cellLoad(Gravity=[0 0 -9.8]);
model.CellLoad

ans =
  1×2 cellLoad array

Properties for analysis type: structuralStatic

Index       Gravity       AngularVelocity    Temperature
  1      [0 0 -9.8000]          []               []
  2      [0 0 -9.8000]          []               []

  Show all properties

Version History

Introduced in R2023a
