evaluateHeatRate

Evaluate integrated heat flow rate normal to specified boundary

Syntax

Qn = evaluateHeatRate(thermalresults,RegionType,RegionID)

Description

Qn = evaluateHeatRate(thermalresults,RegionType,RegionID) returns the integrated heat flow rate normal to the boundary specified by RegionType and RegionID.

Examples

Heat Flow from Face of Block

Compute the heat flow rate across a face of the block geometry.

Create an femodel object for steady-state thermal analysis and include a block geometry into the model.

model = femodel(AnalysisType="thermalSteady", ...
                Geometry="Block.stl");

Plot the geometry.

pdegplot(model.Geometry,FaceLabels="on",FaceAlpha=0.5)

Specify the thermal conductivity of the block.

model.MaterialProperties = ...
    materialProperties(ThermalConductivity=80);

Apply constant temperatures on the opposite ends of the block. All other faces are insulated by default.

model.FaceBC(1) = faceBC(Temperature=100);
model.FaceBC(3) = faceBC(Temperature=50);

Generate a mesh.

model = generateMesh(model);

Solve the thermal problem.

R = solve(model);

Compute the heat flow rate across face 3 of the block.

Qn = evaluateHeatRate(R,Face=3)

Qn =
4.0000e+04

Convection Cooling of Sphere

Compute the heat flow rate across the surface of the cooling sphere.

Create an femodel object for transient thermal analysis and include a unit sphere into the model.

model = femodel(AnalysisType="thermalTransient", ...
                Geometry=multisphere(1));

Generate a mesh.

model = generateMesh(model,GeometricOrder="linear");

Specify thermal properties of the sphere.

model.MaterialProperties = ...
    materialProperties(ThermalConductivity=80, ...
                       SpecificHeat=460, ...
                       MassDensity=7800);

Apply a convection boundary condition on the surface of the sphere.

model.FaceLoad(1) = ...
    faceLoad(ConvectionCoefficient=500,...
             AmbientTemperature=30);

Set the initial temperature.

model.CellIC = cellIC(Temperature=800);

Solve the thermal problem.

tlist = 0:100:2000;
R = solve(model,tlist);

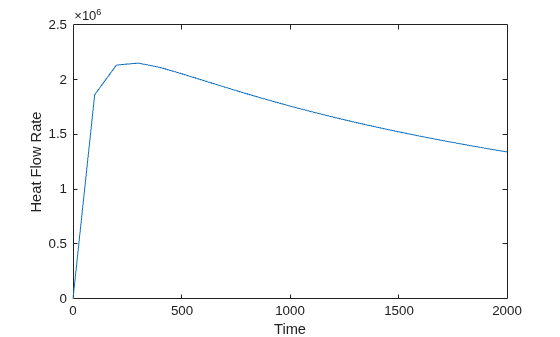

Compute the heat flow rate across the surface of the sphere over time.

Qn = evaluateHeatRate(R,Face=1);
plot(tlist,Qn)
xlabel("Time")
ylabel("Heat Flow Rate")

Input Arguments

thermalresults — Solution of thermal problem

SteadyStateThermalResults object

Solution of a thermal problem, specified as a SteadyStateThermalResults object. Create thermalresults using the solve function.

RegionType — Geometric region type

"Face" for 3-D geometry | "Edge" for 2-D geometry

Geometric region type, specified as Face for 3-D geometry or Edge for 2-D geometry.

Example: Qn = evaluateHeatRate(thermalresults,Face=3)

Data Types: char | string

RegionID — Geometric region ID

positive integer

Geometric region ID, specified as a positive integer. Find the region IDs using the pdegplot function with the FaceLabels (3-D) or EdgeLabels (2-D) value set to "on".

Example: Qn = evaluateHeatRate(thermalresults,Face=3)

Data Types: double

Output Arguments

Qn — Heat flow rate

real number | vector of real numbers

Heat flow rate, returned as a real number or, for time-dependent results, a vector of real numbers. This value represents the integrated heat flow rate, measured in energy per unit time, flowing in the direction normal to the boundary. Qn is positive if the heat flows out of the domain, and negative if the heat flows into the domain.

Version History

Introduced in R2017a
