interpolateTemperature
Interpolate temperature in thermal result at arbitrary spatial locations
Syntax
Description
returns the interpolated temperature values at the 2-D points specified in
Tintrp
= interpolateTemperature(thermalresults
,xq
,yq
)xq
and yq
. This syntax is valid for both
the steady-state and transient thermal models.
returns the interpolated temperature values at the 3-D points specified in
Tintrp
= interpolateTemperature(thermalresults
,xq
,yq
,zq
)xq
, yq
, and zq
. This
syntax is valid for both the steady-state and transient thermal models.
returns the interpolated temperature values at the points in
Tintrp
= interpolateTemperature(thermalresults
,querypoints
)querypoints
. This syntax is valid for both the steady-state
and transient thermal models.
Examples
Interpolate Temperatures in 2-D Steady-State Thermal Model
Create a thermal model for steady-state analysis.
thermalmodel = createpde("thermal");
Create the geometry and include it in the model.
R1 = [3,4,-1,1,1,-1,1,1,-1,-1]'; g = decsg(R1, 'R1', ('R1')'); geometryFromEdges(thermalmodel,g); pdegplot(thermalmodel,"EdgeLabels","on") xlim([-1.5,1.5]) axis equal
Assuming that this is an iron plate, assign a thermal conductivity of 79.5 W/(m*K). Because this is a steady-state model, you do not need to assign mass density or specific heat values.
thermalProperties(thermalmodel,"ThermalConductivity",79.5,"Face",1);
Apply a constant temperature of 300 K to the bottom of the plate (edge 3). Also, assume that the top of the plate (edge 1) is insulated, and apply convection on the two sides of the plate (edges 2 and 4).
thermalBC(thermalmodel,"Edge",3,"Temperature",300); thermalBC(thermalmodel,"Edge",1,"HeatFlux",0); thermalBC(thermalmodel,"Edge",[2,4],... "ConvectionCoefficient",25,... "AmbientTemperature",50);
Mesh the geometry and solve the problem.
generateMesh(thermalmodel); results = solve(thermalmodel)
results = SteadyStateThermalResults with properties: Temperature: [1541x1 double] XGradients: [1541x1 double] YGradients: [1541x1 double] ZGradients: [] Mesh: [1x1 FEMesh]
The solver finds the values of temperatures and temperature gradients at the nodal locations. To access these values, use results.Temperature
, results.XGradients

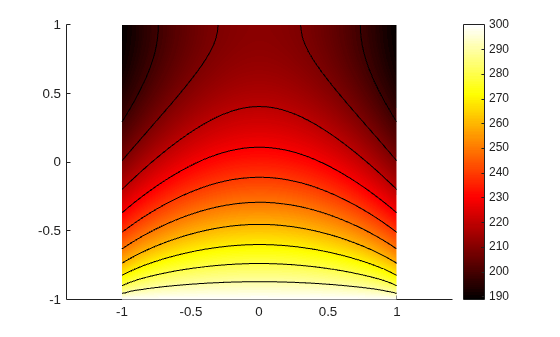

, and so on. For example, plot the temperatures at nodal locations.
figure; pdeplot(thermalmodel,"XYData",results.Temperature,... "Contour","on","ColorMap","hot");
Interpolate the resulting temperatures to a grid covering the central portion of the geometry, for x
and y
from -0.5
to 0.5
.
v = linspace(-0.5,0.5,11); [X,Y] = meshgrid(v); Tintrp = interpolateTemperature(results,X,Y);

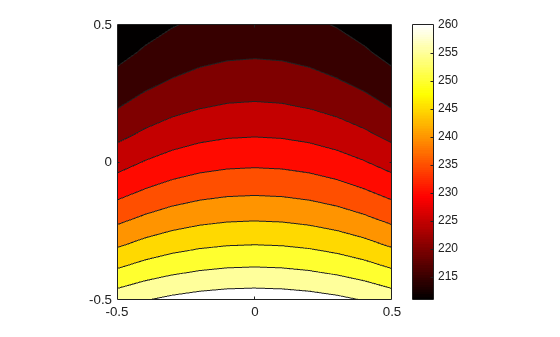

Reshape the Tintrp
vector and plot the resulting temperatures.
Tintrp = reshape(Tintrp,size(X)); figure contourf(X,Y,Tintrp) colormap(hot) colorbar
Alternatively, you can specify the grid by using a matrix of query points.
querypoints = [X(:),Y(:)]'; Tintrp = interpolateTemperature(results,querypoints);
Interpolate Temperature for a 3-D Steady-State Thermal Model
Create a thermal model for steady-state analysis.
thermalmodel = createpde("thermal");

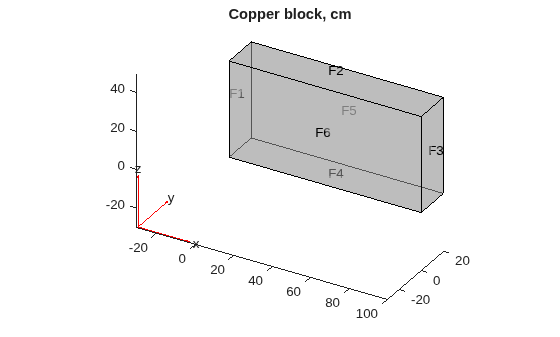

Create the following 3-D geometry and include it in the model.
importGeometry(thermalmodel,"Block.stl"); pdegplot(thermalmodel,"FaceLabels","on","FaceAlpha",0.5) title("Copper block, cm") axis equal
Assuming that this is a copper block, the thermal conductivity of the block is approximately 4 W/(cm*K).
thermalProperties(thermalmodel,"ThermalConductivity",4);
Apply a constant temperature of 373 K to the left side of the block (edge 1) and a constant temperature of 573 K at the right side of the block.
thermalBC(thermalmodel,"Face",1,"Temperature",373); thermalBC(thermalmodel,"Face",3,"Temperature",573);
Apply a heat flux boundary condition to the bottom of the block.
thermalBC(thermalmodel,"Face",4,"HeatFlux",-20);
Mesh the geometry and solve the problem.
generateMesh(thermalmodel); thermalresults = solve(thermalmodel)
thermalresults = SteadyStateThermalResults with properties: Temperature: [12691x1 double] XGradients: [12691x1 double] YGradients: [12691x1 double] ZGradients: [12691x1 double] Mesh: [1x1 FEMesh]
The solver finds the values of temperatures and temperature gradients at the nodal locations. To access these values, use results.Temperature
, results.XGradients

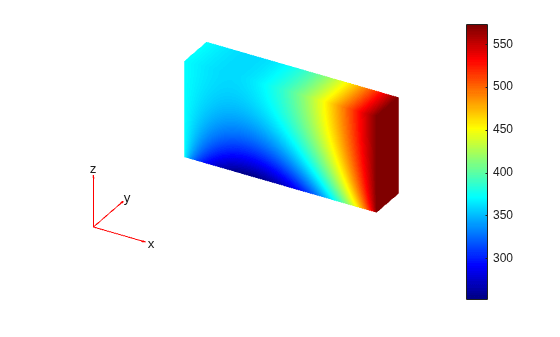

, and so on. For example, plot temperatures at nodal locations.
figure;
pdeplot3D(thermalmodel,"ColorMapData",thermalresults.Temperature)
Create a grid specified by x
, y
, and z
coordinates and interpolate temperatures to the grid.
[X,Y,Z] = meshgrid(1:16:100,1:6:20,1:7:50); Tintrp = interpolateTemperature(thermalresults,X,Y,Z);

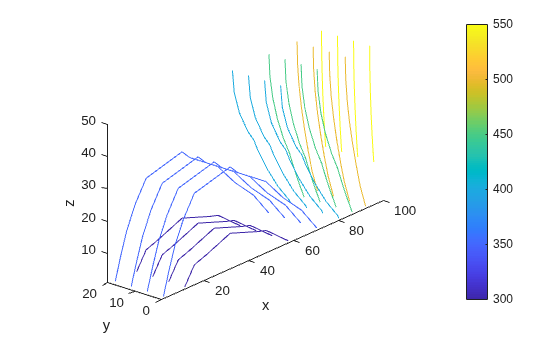

Create a contour slice plot for fixed values of the y
coordinate.
figure Tintrp = reshape(Tintrp,size(X)); contourslice(X,Y,Z,Tintrp,[],1:6:20,[]) xlabel("x") ylabel("y") zlabel("z") xlim([1,100]) ylim([1,20]) zlim([1,50]) axis equal view(-50,22) colorbar
Alternatively, you can specify the grid by using a matrix of query points.
querypoints = [X(:),Y(:),Z(:)]'; Tintrp = interpolateTemperature(thermalresults,querypoints);

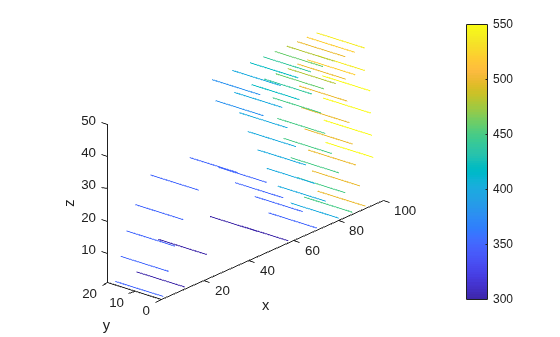

Create a contour slice plot for four fixed values of the z
coordinate.
figure Tintrp = reshape(Tintrp,size(X)); contourslice(X,Y,Z,Tintrp,[],[],1:7:50) xlabel("x") ylabel("y") zlabel("z") xlim([1,100]) ylim([1,20]) zlim([1,50]) axis equal view(-50,22) colorbar
Temperatures for a Transient Thermal Model on a Square
Solve a 2-D transient heat transfer problem on a square domain and compute temperatures at the convective boundary.
Create a transient thermal model for this problem.
thermalmodel = createpde("thermal","transient");

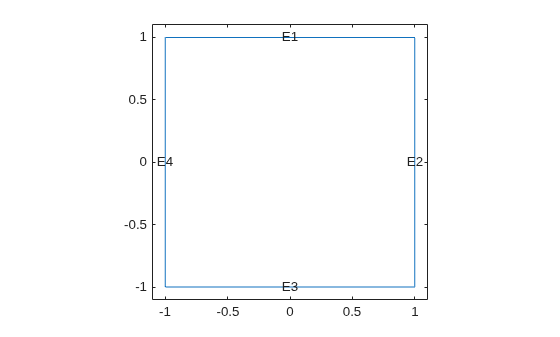

Create the geometry and include it in the model.
g = @squareg; geometryFromEdges(thermalmodel,g); pdegplot(thermalmodel,"EdgeLabels","on") xlim([-1.2,1.2]) ylim([-1.2,1.2]) axis equal
Assign the following thermal properties:
Thermal conductivity is 100 W/(m*C)
Mass density is 7800 kg/m^3
Specific heat is 500 J/(kg*C)
thermalProperties(thermalmodel,"ThermalConductivity",100,... "MassDensity",7800,... "SpecificHeat",500);
Apply insulated boundary conditions on three edges and the free convection boundary condition on the right edge.
thermalBC(thermalmodel,"Edge",[1,3,4],"HeatFlux",0); thermalBC(thermalmodel,"Edge",2,... "ConvectionCoefficient",5000,... "AmbientTemperature",25);
Set the initial conditions: uniform room temperature across domain and higher temperature on the left edge.
thermalIC(thermalmodel,25);
thermalIC(thermalmodel,100,"Edge",4);
Generate a mesh and solve the problem using 0:1000:200000
as a vector of times.
generateMesh(thermalmodel); tlist = 0:1000:200000; thermalresults = solve(thermalmodel,tlist);
Define a line at convection boundary and compute temperature gradients across that line.
X = -1:0.1:1; Y = ones(size(X)); Tintrp = interpolateTemperature(thermalresults,X,Y,1:length(tlist));

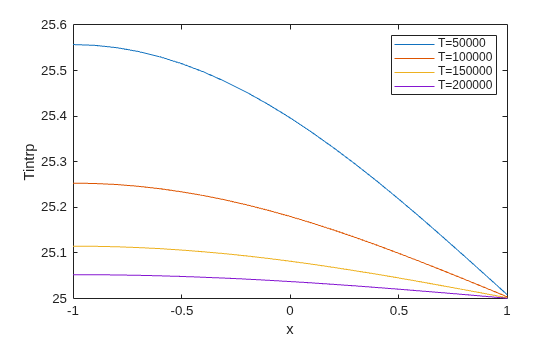

Plot the interpolated temperature Tintrp
along the x
axis for the following values from the time interval tlist
.
figure t = [51:50:201]; for i = t p(i) = plot(X,Tintrp(:,i),"DisplayName", ... strcat("t=",num2str(tlist(i)))); hold on end legend(p(t)) xlabel("x") ylabel("Tintrp")
Input Arguments
thermalresults
— Solution of thermal problem
SteadyStateThermalResults
object | TransientThermalResults
object
Solution of thermal problem, specified as a SteadyStateThermalResults
object or
a TransientThermalResults
object.
Create thermalresults
using
solve
.
Example: thermalresults =
solve(thermalmodel)
xq
— x-coordinate query points
real array
x-coordinate query points, specified as a real array.
interpolateTemperature
evaluates temperatures at
the 2-D coordinate points [xq(i),yq(i)]
or at the 3-D
coordinate points [xq(i),yq(i),zq(i)]
. So
xq
, yq
, and (if present)
zq
must have the same number of entries.
interpolateTemperature
converts query points to
column vectors xq(:)
, yq(:)
, and (if
present) zq(:)
. It returns temperatures in the form of a
column vector of the same size. To ensure that the dimensions of the
returned solution is consistent with the dimensions of the original query
points, use reshape
. For example, use Tintrp =
reshape(Tintrp,size(xq))
.
Data Types: double
yq
— y-coordinate query points
real array
y-coordinate query points, specified as a real array.
interpolateTemperature
evaluates temperatures at
the 2-D coordinate points [xq(i),yq(i)]
or at the 3-D
coordinate points [xq(i),yq(i),zq(i)]
. So
xq
, yq
, and (if present)
zq
must have the same number of entries.
Internally, interpolateTemperature
converts query
points to the column vector yq(:)
.
Data Types: double
zq
— z-coordinate query points
real array
z-coordinate query points, specified as a real array.
interpolateTemperature
evaluates temperatures at
the 3-D coordinate points [xq(i),yq(i),zq(i)]
. So
xq
, yq
, and
zq
must have the same number of entries. Internally,
interpolateTemperature
converts query points to the
column vector zq(:)
.
Data Types: double
querypoints
— Query points
real matrix
Query points, specified as a real matrix with either two rows for 2-D
geometry, or three rows for 3-D geometry. interpolateTemperature
evaluates temperatures at the
coordinate points querypoints(:,i)
, so each column of
querypoints
contains exactly one 2-D or 3-D query
point.
Example: For 2-D geometry, querypoints = [0.5,0.5,0.75,0.75;
1,2,0,0.5]
Data Types: double
iT
— Time indices
vector of positive integers
Time indices, specified as a vector of positive integers. Each
entry in iT
specifies a time index.
Example: iT = 1:5:21
specifies every fifth
time-step up to 21.
Data Types: double
Output Arguments
Tintrp
— Temperatures at query points
array
Temperatures at query points, returned as an array. For query points that
are outside the geometry, Tintrp
=
NaN
.
Version History
Introduced in R2017a
