showSpan

Show or hide angle span between two markers

collapse all in page

Syntax

showSpan(p,id1,id2)
showSpan(p,id1,id2,true)
showSpan(p,vis)
showSpan(p)
d = showSpan(___)

Description

showSpan(p,id1,id2) displays the angle span between two angle markers, id1 and id2. The angle span is calculated counterclockwise.

example

showSpan(p,id1,id2,true) automatically reorders the angle markers such that the initial angle span is less than or equal to 180° counterclockwise.

showSpan(p,vis) sets angle span visibility by setting vis to true or false.

showSpan(p) toggles the angle span display on and off.

d = showSpan(___) returns angle span details in a structure, d using any of the previous syntaxes.

Examples

collapse all

Open Live Script

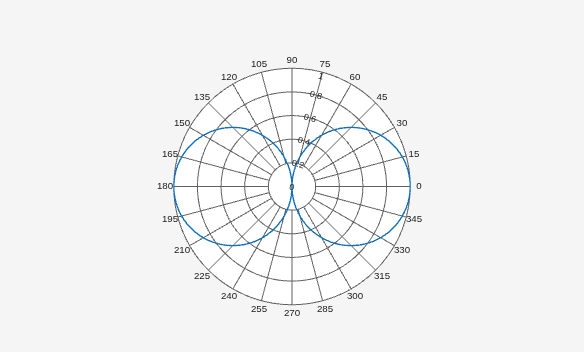

Create a short-dipole antenna element and plot the field values at 250 MHz.

antenna = phased.ShortDipoleAntennaElement('FrequencyRange',[100,900]*1e6,...
    'AxisDirection','Y');
angs = [-180:1:180];
fc = 250.0e6;
p = pattern(antenna,250.0e6,angs,0,'CoordinateSystem','polar','Type',...
    'efield','Polarization','H');
P = polarpattern(angs,abs(p));

Figure Polar Measurement contains an axes object. The hidden axes object contains an object of type line.

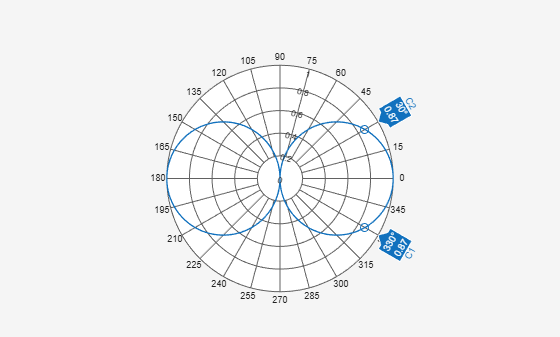

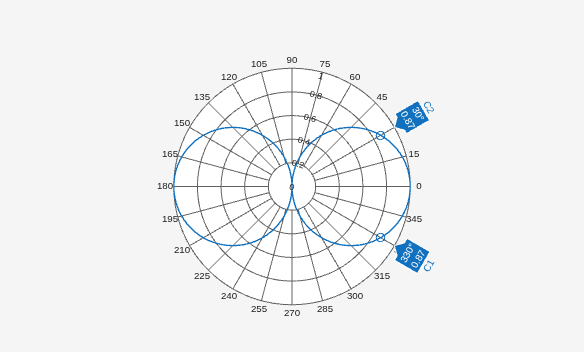

Add cursors to the polar plot at -30° and 30°.

addCursor(P,[-30 30]);

Figure Polar Measurement contains an axes object. The hidden axes object contains an object of type line.

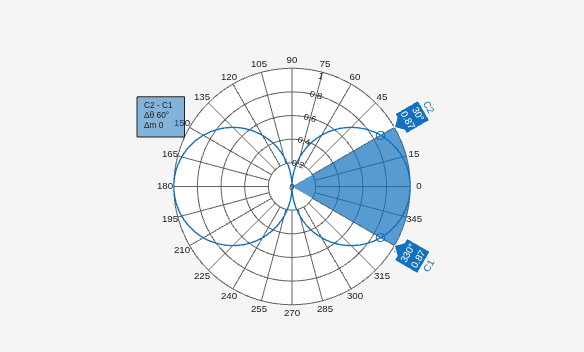

Show the angle span between the two angles.

showSpan(P,'C1','C2');

Figure Polar Measurement contains an axes object. The hidden axes object contains 2 objects of type patch, line.

Input Arguments

collapse all

Polar plot, specified as a polarpattern object.

Example: polarpattern

Cursor or peak marker identifiers, specified as character vector. Adding cursors to the polar plot creates cursor marker identifiers. Adding peaks to the polar plot creates peak marker identifiers.

Example: showspan(p,'C1','C2'). Displays the angle span between cursors, C1 and C2 in polar plot, p.

Version History

Introduced in R2016a
