gpsSensor
Description
The gpsSensor
System object™ models data output from a Global Positioning System (GPS) receiver. The object
models the position noise as a first order Gauss Markov process, in which the sigma values are
specified in the HorizontalPositionAccuracy
and the
VerticalPositionAccuracy
properties. The object models the velocity
noise as Gaussian noise with its sigma value specified in the
VelocityAccuracy
property.
To model a GPS receiver:
Create the
gpsSensor
object and set its properties.Call the object with arguments, as if it were a function.
To learn more about how System objects work, see What Are System Objects?
Creation
Description
returns a
GPS
= gpsSensorgpsSensor
System object that computes a Global Positioning System receiver reading based on a local
position and velocity input signal. The default reference position in geodetic coordinates is
latitude: 0o N
longitude: 0o E
altitude: 0 m
returns a GPS
= gpsSensor('ReferenceFrame',RF
)gpsSensor
System object that computes a global positioning system receiver reading relative to the
reference frame RF
.
GPS = gpsSensor(___,
sets one or more properties using name-value arguments in addition to any of the previous
input arguments.Name=Value
)
Input Arguments
RF
— Reference frame of sensor inputs
'NED'
(default) | 'ENU'
Reference frame of the sensor inputs, specified as either 'NED'
(North-East-Down) or 'ENU'
(East-North-Up).
Data Types: char
| string
Properties
Unless otherwise indicated, properties are nontunable, which means you cannot change their
values after calling the object. Objects lock when you call them, and the
release
function unlocks them.
If a property is tunable, you can change its value at any time.
For more information on changing property values, see System Design in MATLAB Using System Objects.
SampleRate
— Update rate of receiver (Hz)
1
(default) | positive real scalar
Update rate of the receiver in Hz, specified as a positive real scalar.
Data Types: single
| double
ReferenceLocation
— Origin of local navigation reference frame
[0 0 0]
(default) | [latitude longitude altitude]
Reference location, specified as a 3-element row vector in geodetic coordinates
(latitude, longitude, and altitude). Altitude is the height above the reference
ellipsoid model, WGS84. The reference location is in [degrees degrees
meters]
. The degree format is decimal degrees (DD).
Data Types: single
| double
PositionInputFormat
— Position coordinate input format
'Local'
(default) | 'Geodetic'
Position coordinate input format, specified as 'Local'
or
'Geodetic'
.
If you set the property as
'Local'
, then you need to specify thetruePosition
input as Cartesian coordinates with respect to the local navigation frame whose origin is fixed and defined by theReferenceLcation
property. Additionally, when you specify thetrueVelocity
input, you need to specify it with respect to this local navigation frame.If you set the property as
'Geodetic'
, then you need to specify thetruePosition
input as geodetic coordinates in latitude, longitude, and altitude. Additionally, when you specify thetrueVelocity
input, you need to specify it with respect to the navigation frame (NED or ENU) whose origin corresponds to thetruePosition
input. When setting the property as'Geodetic'
, thegpsSensor
object neglects theReferenceLocation
property.
Data Types: character vector
HorizontalPositionAccuracy
— Horizontal position accuracy (m)
1.6
(default) | nonnegative real scalar
Horizontal position accuracy in meters, specified as a nonnegative real scalar. The horizontal position accuracy specifies the standard deviation of the noise in the horizontal position measurement.
Tunable: Yes
Data Types: single
| double
VerticalPositionAccuracy
— Vertical position accuracy (m)
3
(default) | nonnegative real scalar
Vertical position accuracy in meters, specified as a nonnegative real scalar. The vertical position accuracy specifies the standard deviation of the noise in the vertical position measurement.
Tunable: Yes
Data Types: single
| double
VelocityAccuracy
— Velocity accuracy (m/s)
0.1
(default) | nonnegative real scalar
Velocity accuracy in meters per second, specified as a nonnegative real scalar. The velocity accuracy specifies the standard deviation of the noise in the velocity measurement.
Tunable: Yes
Data Types: single
| double
DecayFactor
— Global position noise decay factor
0.999
(default) | scalar in the range [0,1]
Global position noise decay factor, specified as a scalar in the range [0,1].
A decay factor of 0 models the global position noise as a white noise process. A decay factor of 1 models the global position noise as a random walk process.
Tunable: Yes
Data Types: single
| double
RandomStream
— Random number source
'Global stream'
(default) | 'mt19937ar with seed'
Random number source, specified as a character vector or string:
'Global stream'
–– Random numbers are generated using the current global random number stream.'mt19937ar with seed'
–– Random numbers are generated using the mt19937ar algorithm with the seed specified by theSeed
property.
Data Types: char
| string
Seed
— Initial seed
67
(default) | nonnegative integer scalar
Initial seed of an mt19937ar random number generator algorithm, specified as a nonnegative integer scalar.
Dependencies
To enable this property, set RandomStream
to
'mt19937ar with seed'
.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Usage
Description
[
computes global navigation satellite system receiver readings from the position and
velocity inputs.position
,velocity
,groundspeed
,course
] = GPS(truePosition
,trueVelocity
)
Input Arguments
truePosition
— Position of GPS receiver in navigation coordinate system
N-by-3 matrix
Position of the GPS receiver in the navigation coordinate system, specified as a real finite N-by-3 matrix. N is the number of samples in the current frame.
When the
PositionInputFormat
property is specified as'Local'
, specifytruePosition
as Cartesian coordinates with respect to the local navigation frame whose origin is fixed atReferenceLocation
.When the
PositionInputFormat
property is specified as'Geodetic'
, specifytruePosition
as geodetic coordinates in[latitude longitude altitude]
.latitude
andlongitude
are in degrees.altitude
is the height above the WGS84 ellipsoid model in meters.
Data Types: single
| double
trueVelocity
— Velocity of GPS receiver in navigation coordinate system (m/s)
N-by-3 matrix
Velocity of GPS receiver in the navigation coordinate system in meters per second, specified as a real finite N-by-3 matrix. N is the number of samples in the current frame.
When the
PositionInputFormat
property is specified as'Local'
, specifytrueVelocity
with respect to the local navigation frame (NED or ENU) whose origin is fixed atReferenceLocation
.When the
PositionInputFormat
property is specified as'Geodetic'
, specifytrueVelocity
with respect to the navigation frame (NED or ENU) whose origin corresponds to thetruePosition
input.
Data Types: single
| double
Output Arguments
position
— Position in LLA coordinate system
N-by-3 matrix
Position of the GPS receiver in the geodetic latitude, longitude, and altitude (LLA) coordinate system, returned as a real finite N-by-3 array. Latitude and longitude are in degrees with North and East being positive. Altitude is in meters.
N is the number of samples in the current frame.
Data Types: single
| double
velocity
— Velocity in local navigation coordinate system (m/s)
N-by-3 matrix
Velocity of the GPS receiver in the local navigation coordinate system in meters per second, returned as a real finite N-by-3 array. N is the number of samples in the current frame.
When the
PositionInputFormat
property is specified as'Local'
, the returned velocity is with respect to the local navigation frame whose origin is fixed atReferenceLocation
.When the
PositionInputFormat
property is specified as'Geodetic'
, the returned velocity is with respect to the navigation frame (NED or ENU) whose origin corresponds to theposition
output.
Data Types: single
| double
groundspeed
— Magnitude of horizontal velocity in local navigation coordinate system (m/s)
N-by-1 column vector
Magnitude of the horizontal velocity of the GPS receiver in the local navigation coordinate system in meters per second, returned as a real finite N-by-1 column vector.
N is the number of samples in the current frame.
Data Types: single
| double
course
— Direction of horizontal velocity in local navigation coordinate system (°)
N-by-1 column vector
Direction of the horizontal velocity of the GPS receiver in the local navigation coordinate system in degrees, returned as a real finite N-by-1 column vector of values between 0 and 360. North corresponds to 360 degrees and East corresponds to 90 degrees.
N is the number of samples in the current frame.
Data Types: single
| double
Object Functions
To use an object function, specify the
System object as the first input argument. For
example, to release system resources of a System object named obj
, use
this syntax:
release(obj)
Examples
Generate GPS Position Measurements From Stationary Input
Create a gpsSensor
System object™ to model GPS receiver data. Assume a typical one Hz sample rate and a 1000-second simulation time. Define the reference location in terms of latitude, longitude, and altitude (LLA) of Natick, MA (USA). Define the sensor as stationary by specifying the true position and velocity with zeros.
fs = 1; duration = 1000; numSamples = duration*fs; refLoc = [42.2825 -71.343 53.0352]; truePosition = zeros(numSamples,3); trueVelocity = zeros(numSamples,3); gps = gpsSensor('SampleRate',fs,'ReferenceLocation',refLoc);
Call gps
with the specified truePosition
and trueVelocity
to simulate receiving GPS data for a stationary platform.
position = gps(truePosition,trueVelocity);
Plot the true position and the GPS sensor readings for position.
t = (0:(numSamples-1))/fs; subplot(3, 1, 1) plot(t, position(:,1), ... t, ones(numSamples)*refLoc(1)) title('GPS Sensor Readings') ylabel('Latitude (degrees)') subplot(3, 1, 2) plot(t, position(:,2), ... t, ones(numSamples)*refLoc(2)) ylabel('Longitude (degrees)') subplot(3, 1, 3) plot(t, position(:,3), ... t, ones(numSamples)*refLoc(3)) ylabel('Altitude (m)') xlabel('Time (s)')
The position readings have noise controlled by HorizontalPositionAccuracy
, VerticalPositionAccuracy
, VelocityAccuracy
, and DecayFactor
. The DecayFactor
property controls the drift in the noise model. By default, DecayFactor
is set to 0.999
, which approaches a random walk process. To observe the effect of the DecayFactor
property:
Reset the
gps
object.Set
DecayFactor
to0.5
.Call
gps
with variables specifying a stationary position.Plot the results.

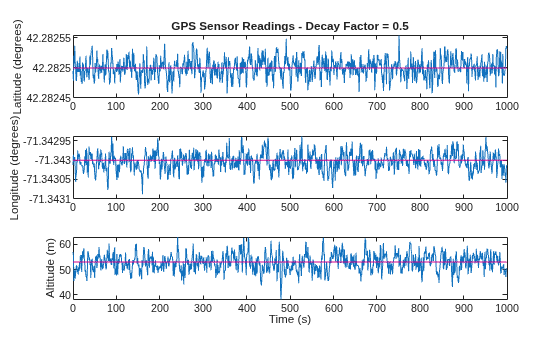

The GPS
position readings now oscillate around the true position.
reset(gps) gps.DecayFactor = 0.5; position = gps(truePosition,trueVelocity); subplot(3, 1, 1) plot(t, position(:,1), ... t, ones(numSamples)*refLoc(1)) title('GPS Sensor Readings - Decay Factor = 0.5') ylabel('Latitude (degrees)') subplot(3, 1, 2) plot(t, position(:,2), ... t, ones(numSamples)*refLoc(2)) ylabel('Longitude (degrees)') subplot(3, 1, 3) plot(t, position(:,3), ... t, ones(numSamples)*refLoc(3)) ylabel('Altitude (m)') xlabel('Time (s)')
Relationship Between Groundspeed and Course Accuracy
GPS receivers achieve greater course accuracy as groundspeed increases. In this example, you create a GPS receiver simulation object and simulate the data received from a platform that is accelerating from a stationary position.
Create a default gpsSensor
System object™ to model data returned by a GPS receiver.
GPS = gpsSensor
GPS = gpsSensor with properties: SampleRate: 1 Hz PositionInputFormat: 'Local' ReferenceLocation: [0 0 0] [deg deg m] HorizontalPositionAccuracy: 1.6 m VerticalPositionAccuracy: 3 m VelocityAccuracy: 0.1 m/s RandomStream: 'Global stream' DecayFactor: 0.999
Create matrices to describe the position and velocity of a platform in the NED coordinate system. The platform begins from a stationary position and accelerates to 60 m/s North-East over 60 seconds, then has a vertical acceleration to 2 m/s over 2 seconds, followed by a 2 m/s rate of climb for another 8 seconds. Assume a constant velocity, such that the velocity is the simple derivative of the position.
duration = 70; numSamples = duration*GPS.SampleRate; course = 45*ones(duration,1); groundspeed = [(1:60)';60*ones(10,1)]; Nvelocity = groundspeed.*sind(course); Evelocity = groundspeed.*cosd(course); Dvelocity = [zeros(60,1);-1;-2*ones(9,1)]; NEDvelocity = [Nvelocity,Evelocity,Dvelocity]; Ndistance = cumsum(Nvelocity); Edistance = cumsum(Evelocity); Ddistance = cumsum(Dvelocity); NEDposition = [Ndistance,Edistance,Ddistance];
Model GPS measurement data by calling the GPS
object with your velocity and position matrices.
[~,~,groundspeedMeasurement,courseMeasurement] = GPS(NEDposition,NEDvelocity);

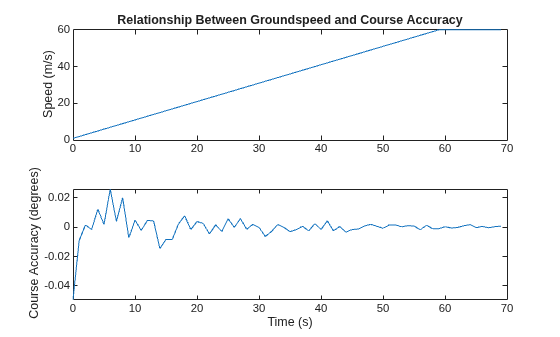

Plot the groundspeed and the difference between the true course and the course returned by the GPS simulator.
As groundspeed increases, the accuracy of the course increases. Note that the velocity increase during the last ten seconds has no effect, because the additional velocity is not in the ground plane.
t = (0:numSamples-1)/GPS.SampleRate; subplot(2,1,1) plot(t,groundspeed); ylabel('Speed (m/s)') title('Relationship Between Groundspeed and Course Accuracy') subplot(2,1,2) courseAccuracy = courseMeasurement - course; plot(t,courseAccuracy) xlabel('Time (s)'); ylabel('Course Accuracy (degrees)')
Model GPS Receiver Data
Simulate GPS data received during a trajectory from the city of Natick, MA, to Boston, MA.
Define the decimal degree latitude and longitude for the city of Natick, MA USA, and Boston, MA USA. For simplicity, set the altitude for both locations to zero.
NatickLLA = [42.27752809999999, -71.34680909999997, 0]; BostonLLA = [42.3600825, -71.05888010000001, 0];
Define a motion that can take a platform from Natick to Boston in 20 minutes. Set the origin of the local NED coordinate system as Natick. Create a waypointTrajectory
object to output the trajectory 10 samples at a time.
fs = 1; duration = 60*20; bearing = 68; % degrees distance = 25.39e3; % meters distanceEast = distance*sind(bearing); distanceNorth = distance*cosd(bearing); NatickNED = [0,0,0]; BostonNED = [distanceNorth,distanceEast,0]; trajectory = waypointTrajectory( ... 'Waypoints', [NatickNED;BostonNED], ... 'TimeOfArrival',[0;duration], ... 'SamplesPerFrame',10, ... 'SampleRate',fs);
Create a gpsSensor
object to model receiving GPS data for the platform. Set the HorizontalPositionalAccuracy
to 25
and the DecayFactor
to 0.25
to emphasize the noise. Set the ReferenceLocation
to the Natick coordinates in LLA.
GPS = gpsSensor( ... 'HorizontalPositionAccuracy',25, ... 'DecayFactor',0.25, ... 'SampleRate',fs, ... 'ReferenceLocation',NatickLLA);

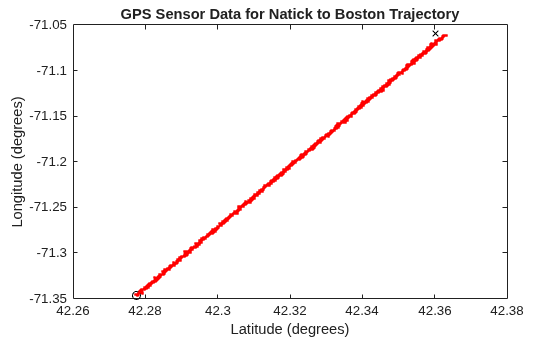

Open a figure and plot the position of Natick and Boston in LLA. Ignore altitude for simplicity.
In a loop, call the gpsSensor
object with the ground-truth trajectory to simulate the received GPS data. Plot the ground-truth trajectory and the model of received GPS data.
figure(1) plot(NatickLLA(1),NatickLLA(2),'ko', ... BostonLLA(1),BostonLLA(2),'kx') xlabel('Latitude (degrees)') ylabel('Longitude (degrees)') title('GPS Sensor Data for Natick to Boston Trajectory') hold on while ~isDone(trajectory) [truePositionNED,~,trueVelocityNED] = trajectory(); reportedPositionLLA = GPS(truePositionNED,trueVelocityNED); figure(1) plot(reportedPositionLLA(:,1),reportedPositionLLA(:,2),'r.') end
As a best practice, release System objects when complete.
release(GPS) release(trajectory)
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
See System Objects in MATLAB Code Generation (MATLAB Coder).
Version History
Introduced in R2022a
Comando MATLAB
Hai fatto clic su un collegamento che corrisponde a questo comando MATLAB:
Esegui il comando inserendolo nella finestra di comando MATLAB. I browser web non supportano i comandi MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
