## Mixed-Sensitivity Loop Shaping

Mixed-sensitivity loop shaping lets you design an
*H*_{∞} controller by simultaneously shaping the frequency
responses for tracking and disturbance rejection, noise reduction and robustness, and controller
effort. This technique is a useful way to balance the necessary tradeoff between performance and
robustness (see Loop Shaping for Performance and Robustness). To use this technique, you
convert your desired responses into up to three weighting functions that the `mixsyn`

command uses to synthesize the controller.

### Problem Setup

`mixsyn`

designs a controller *K* for your plant
*G*, assuming the standard control configuration of the following
diagram.

To do so, the function appends the weighting functions you provide,
*W*_{1}(*s*),
*W*_{2}(*s*), and
*W*_{3}(*s*), to the control system, as
shown in the following diagram.

`mixsyn`

treats the problem as an
*H*_{∞} synthesis problem (see `hinfsyn`

). It analyzes the weighted control system as
*LFT*(*P*,*K*), where *P*
is an augmented plant *P* such that {*z*;*e*} =
*P*{*w*;*u*}, as shown in the following diagram.

The transfer function from *w* to *z* can be expressed
as

$$M\left(s\right)=\left[\begin{array}{c}{W}_{1}S\\ {W}_{2}KS\\ {W}_{3}T\end{array}\right],$$

where

*S*= (*I*+*GK*)^{–1}is the sensitivity function.*KS*is the transfer function from*w*to*u*(the control effort).*T*= (*I*–*S*) =*GK*(*I*+*GK*)^{–1}is the complementary sensitivity function.

`mixsyn`

seeks a controller *K* that minimizes
||*M*(*s*)||_{∞}, the
*H*_{∞} norm (peak gain) of *M*. To do
so, it invokes `hinfsyn`

on the augmented plant ```
P =
augw(G,W1,W2,W3)
```

.

### Choose Weighting Functions

For loop gain *L* = *GK*, to achieve good reference
tracking and disturbance rejection, you typically want high loop gain at low frequency. To
achieve robustness and attenuation of measurement noise, you typically want *L*
to roll off at high frequency. This loop shape is equivalent to small *S* at
low frequency and small *T* at high frequency.

For mixed-sensitivity loop shaping, you choose weighting functions to specify those target
shapes for *S* and *T* as well as the control effort
*KS*. The *H*_{∞} design
constraint,

$${\Vert M\left(s\right)\Vert}_{\infty}={\Vert \left[\begin{array}{c}{W}_{1}S\\ {W}_{2}KS\\ {W}_{3}T\end{array}\right]\Vert}_{\infty}\le \text{\hspace{0.17em}}\text{\hspace{0.17em}}1,$$

means that

$$\begin{array}{c}{\Vert S\Vert}_{\infty}\le \left|{W}_{1}^{-1}\right|\\ {\Vert KS\Vert}_{\infty}\le \left|{W}_{2}^{-1}\right|\\ {\Vert T\Vert}_{\infty}\le \left|{W}_{3}^{-1}\right|.\end{array}$$

Therefore, you set the weights equal to the reciprocals of the desired shapes for
*S*, *KS*, and *T*. In particular,

For good reference-tracking and disturbance-rejection performance, choose

*W*_{1}large inside the control bandwidth to obtain small*S*.For robustness and noise attenuation, choose

*W*_{3}large outside the control bandwidth to obtain small*T*.To limit control effort in a particular frequency band, increase the magnitude of

*W*_{2}in this frequency band to obtain small*KS*.

`mixsyn`

returns the minimum
||*M*(*s*)||_{∞} in the output argument
`gamma`

. For the returned controller *K*, then,

$$\begin{array}{c}{\Vert S\Vert}_{\infty}\le \gamma \left|{W}_{1}^{-1}\right|\\ {\Vert KS\Vert}_{\infty}\le \gamma \left|{W}_{2}^{-1}\right|\\ {\Vert T\Vert}_{\infty}\le \gamma \left|{W}_{3}^{-1}\right|.\end{array}$$

If you do not want to restrict control effort, you can omit
*W*_{2}. In that case, `mixsyn`

minimizes the *H*_{∞} norm of

$$M\left(s\right)=\left[\begin{array}{c}{W}_{1}S\\ {W}_{3}T\end{array}\right].$$

You can use `makeweight`

to create weighting functions with the
desired gain profiles. The following example illustrates how to choose and create weighting
functions for controller design with `mixsyn`

.

#### Numeric Considerations

Do not choose weighting functions with poles very close to *s* = 0
(*z* = 1 for discrete-time systems). For instance, although it might seem
sensible to choose *W*_{1} = 1/*s* to
enforce zero steady-state error, doing so introduces an unstable pole that cannot be
stabilized, causing synthesis to fail. Instead, choose *W*_{1} = 1/(*s* +
*δ*). The value *δ* must be small but not very small compared to
system dynamics. For instance, for best numeric results, if your target crossover frequency is
around 1 rad/s, choose *δ* = 0.0001 or 0.001. Similarly, in discrete time,
choose sample times such that system and weighting dynamics are not more than a decade or two
below the Nyquist frequency.

### Mixed-Sensitivity Loop-Shaping Controller Design

Load a plant model for a mixed-sensitivity${\mathit{H}}_{\infty}$ controller design. This two-input, two-output, six-state model is described in the example Loop-Shaping Controller Design.

load mixsynExampleData G size(G)

State-space model with 2 outputs, 2 inputs, and 6 states.

To design a controller for performance and robustness, shape the sensitivity and complementary sensitivity functions. Choose weights that are the inverse of the desired shapes.

To achieve good reference-tracking and disturbance-rejection performance, shape *S* to be small inside the control bandwidth, which means choosing `W1`

large at low frequency, rolling off at high frequency. For this example, specify `W1`

with:

Low-frequency gain of about 30 dB (33 in absolute units)

High-frequency gain of about –6 dB (0.5 in absolute units)

0 dB crossover at about 5 rad/s.

W1 = makeweight(33,5,0.5);

For robustness and noise attenuation, shape `T`

to be small outside the control bandwidth, which means choosing `W3`

large at high frequency.

W3 = makeweight(0.5,20,20);

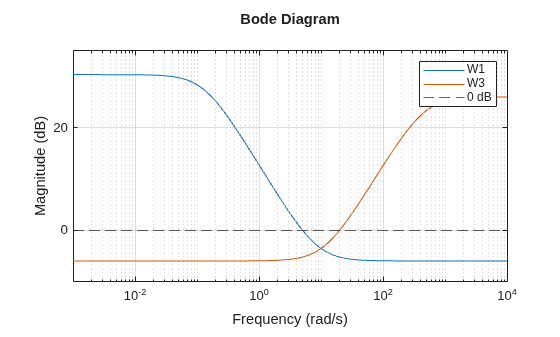

Examine both weighting functions. Their inverses are the target shapes for `S`

and `T`

.

bodemag(W1,W3) yline(0,'--'); legend('W1','W3','0 dB'); grid on

Because `S + T = I`

, `mixsyn`

cannot make both `S`

and `T`

small (less than 0 dB) in the same frequency range. Therefore, when you specify weights, there must be a frequency band in which both `W1`

and `W3`

are below 0 dB.

Use `mixsyn`

to compute the optimal mixed-sensitivity controller with these weights. For this example, impose no penalty on controller effort by setting `W2`

to `[]`

.

[K,CL,gamma] = mixsyn(G,W1,[],W3); gamma

gamma = 0.7331

The resulting `gamma`

, which is the peak singular value across all frequencies, is well below 1, indicating that the closed-loop system meets the design requirements. Examine the resulting system responses. First, compare the resulting sensitivity `S`

and complementary sensitivity `T`

to the corresponding weighting functions `W1`

and `W3`

.

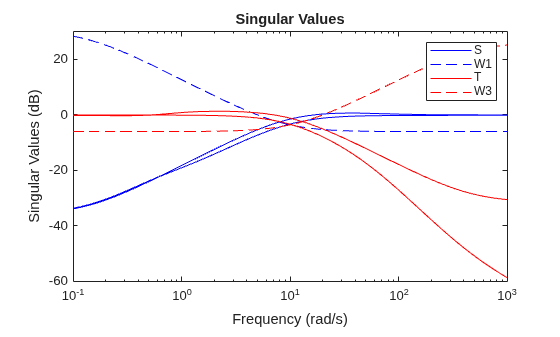

L = G*K; I = eye(size(L)); S = feedback(I,L); T= I-S; sigma(S,'b',W1,'b--',T,'r',W3,'r--',{0.1,1000}) legend('S','W1','T','W3');

The plot shows that `S`

and `T`

achieve the desired loop shape, where `S`

is large inside the control bandwidth and a is small outside the control bandwidth.

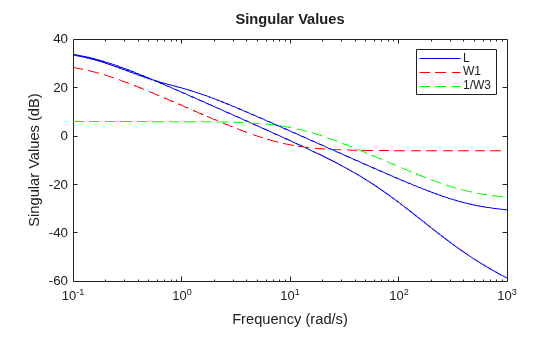

To see how mixed-sensitivity loop-shaping achieves the goals of classic loop shaping, compare the open-loop response `L`

to the weighting functions. `L ~ W1`

where `W1`

is large, and `L ~ 1/W3`

where `W3`

is large.

sigma(L,'b',W1,'r--',1/W3,'g--',{0.1,1000}) legend('L','W1','1/W3');
