Return transformation from ROS or ROS 2 `TransformStamped` message structure

Since R2023b

## Syntax

``T = rosReadTransform(tfmsg)``
``tform = rosReadTransform(tfmsg,OutputOption="single")``
``[trans,rotm] = rosReadTransform(tfmsg,OutputOption="pair")``

## Description

example

````T = rosReadTransform(tfmsg)` returns an SE(3) homogeneous transformation object `T` based on the input ROS or ROS 2 `geometry_msgs/TransformStamped` message structure `tfmsg`. This syntax is equivalent to specifying the name-value argument `OutputOption="se3"`.```
````tform = rosReadTransform(tfmsg,OutputOption="single")` returns a 4-by-4 homogeneous transformation matrix based on the input ROS or ROS 2 `geometry_msgs/TransformStamped` message structure `tfmsg`.```
````[trans,rotm] = rosReadTransform(tfmsg,OutputOption="pair")` returns a 3-by-1 translation vector `t`, and a 3-by-3 rotation matrix `r` based on the homogeneous transformation in the input ROS or ROS 2 `geometry_msgs/TransformStamped` message structure `tfmsg`.```

## Examples

collapse all

Load ROS 2 point cloud and transformation messages.

`load("ros2PtcloudMsgs.mat")`

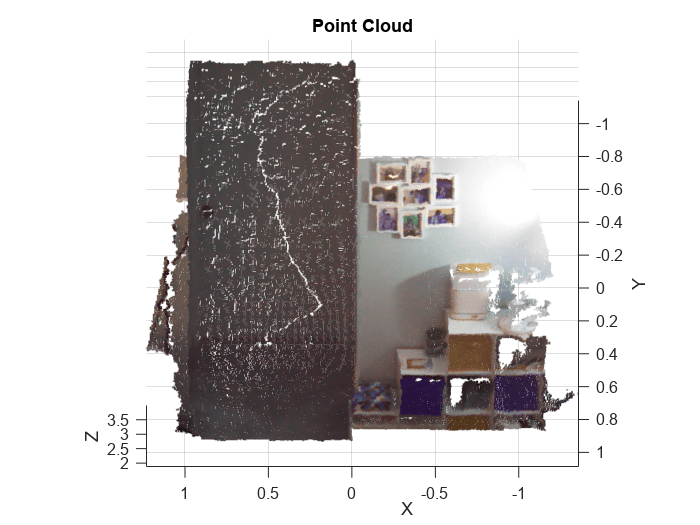

Visualize the point cloud message `ptcloudMsg1`.

```rosPlot(ptcloudMsg1) xlabel('X') ylabel('Y') zlabel('Z') view([-180 80])``` Note that the vertical direction in the point cloud is represented by the y-axis. You can transform the point cloud such that the z-axis represents the vertical direction. To accomplish this transformation, use the `geometry_msgs/TransformStamped` message, `tfMsg`, which contains a transform that rotates the points to a target frame that is `90` degrees in the clockwise direction along x-axis. Read the translation and rotation values from `tfMsg` using the `rosReadTransform` function.

`[trans,rot] = rosReadTransform(tfMsg,OutputOption="pair")`
```trans = 3×1 0 0 0 ```
```rot = 3×3 1.0000 0 0 0 0.0000 1.0000 0 -1.0000 0.0000 ```

Transform the point cloud to the target frame using the `rosApplyTransform` function.

`transformedPtcloudMsg = rosApplyTransform(tfMsg,ptcloudMsg1);`

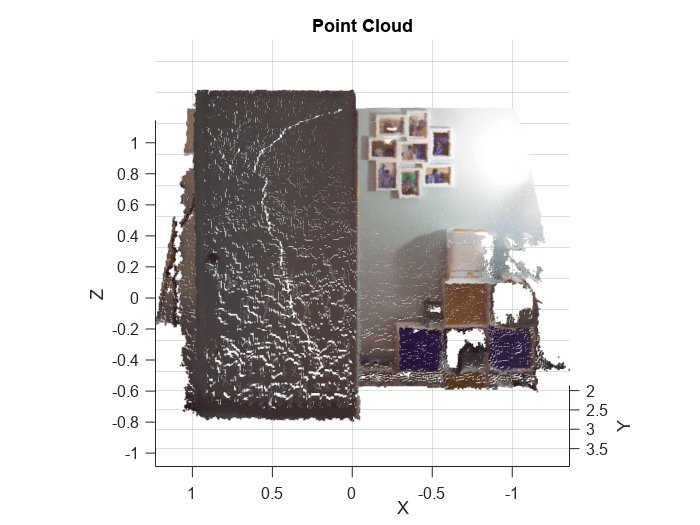

Visualize the transformed point cloud. Note that the vertical direction is now represented by the z-axis.

```rosPlot(transformedPtcloudMsg) view(-180,14)``` ## Input Arguments

collapse all

ROS or ROS 2 transformation message, specified as a `geometry_msgs/TransformStamped` message structure.

## Output Arguments

collapse all

SE(3) homogeneous transformation, returned as an `se3` object handle.

#### Dependencies

Specify no name-value argument or `OutputOption="se3"` when you call the `rosReadTransform` function.

Homogeneous transformation, returned as a 4-by-4 numeric matrix.

Specify `OutputOption="single"` name-value argument when you call the `rosReadTransform` function.

Amount of translation, returned as a 3-by-1 numeric vector.

#### Dependencies

Specify `OutputOption="pair"` name-value argument when you call the `rosReadTransform` function.

Rotation matrix, returned as a 3-by-3 numeric matrix.

#### Dependencies

Specify `OutputOption="pair"` name-value argument when you call the `rosReadTransform` function.

## Version History

Introduced in R2023b
