Data pattern waveform from pulse response

collapse all in page

Syntax

W = pulse2wave(P,D,N)

Description

W = pulse2wave(P,D,N) converts the pulse response P into a voltage waveform W, given the symbol pattern D and the number of samples per symbol N.

The function uses a circular convolution technique to project the pulse response onto the data pattern.

example

Examples

collapse all

Open Live Script

Load the pulse response column matrix from a file.

load('PulseResponseReflective100ps.mat');

Find the pulse response column vector.

P = pulse(:,1) - pulse(1,1);

Create the symbol pattern of PRBS order 5.

data = prbs(5,2^5-1)-0.5;

Calculate and plot the voltage waveform from the pulse response.

waveform = pulse2wave(P,data,SamplesPerSymbol);
t = dt*(0:length(waveform)-1);
figure
plot(t,waveform)
xlabel('Time (Seconds)')
ylabel('Voltage')

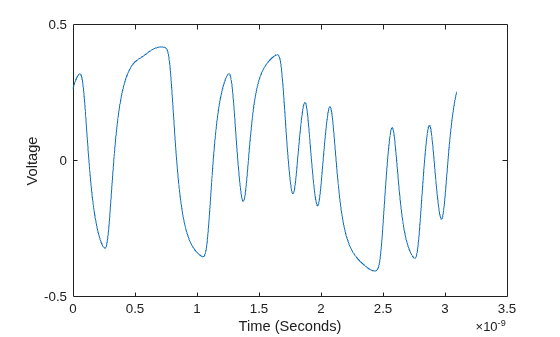

Figure contains an axes object. The axes object with xlabel Time (Seconds), ylabel Voltage contains an object of type line.

Input Arguments

collapse all

Input pulse response, specified as a column matrix. The first column contains the primary pulse response and the subsequent columns (if any) contain the crosstalk pulse responses.

Data Types: double

Symbol pattern, specified as a vector.

Data Types: double

Number of samples per symbol, specified as a positive integer scalar.

Data Types: double

Output Arguments

collapse all

Voltage waveform data pattern, returned as a column matrix.

Data Types: double

Extended Capabilities

expand all

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2020a
