# serdes.CTLE

## Description

The `serdes.CTLE`

System object™ applies a linear peaking filter to equalize a sample-by-sample input signal or
to analytically process an impulse response vector input signal. The equalization process
reduces distortions resulting from lossy channels. The filter is a real one-zero two-pole
(1z/2p) filter, unless you define the gain-pole-zero (GPZ) matrix.

To equalize the baseband signal using `serdes.CTLE`

:

Create the

`serdes.CTLE`

object and set its properties.Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

## Creation

### Description

returns a CTLE object
that modifies an input waveform according to the pole zero transfer function defined in
the object.`ctle`

= serdes.CTLE

sets properties using one or more name-value pairs. Enclose each property name in quotes.
Unspecified properties have default values.`ctle`

= serdes.CTLE(`Name`

,`Value`

)

**Example: **`ctle = serdes.CTLE('ACGain',5)`

returns a CTLE object with
gain at the peaking frequency set to 5 dB.

## Properties

Unless otherwise indicated, properties are *nontunable*, which means you cannot change their
values after calling the object. Objects lock when you call them, and the
`release`

function unlocks them.

If a property is *tunable*, you can change its value at
any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

### Main

`Mode`

— CTLE operating mode

`2`

(default) | `0`

| `1`

CTLE operating mode, specified as `0`

, `1`

, or
`2`

. `Mode`

determines whether the CTLE is
bypassed or not. If CTLE is not bypassed, then `Mode`

also
determines what transfer function is applied to the input waveform.

Mode Value | CTLE Mode | CTLE Operation |
---|---|---|

`0` | off | `serdes.CTLE` is bypassed and the input waveform remains
unchanged. |

`1` | fixed | `serdes.CTLE` applies the CTLE transfer function as
specified by `ConfigSelect` to the input
waveform. |

`2` | adapt | If `WaveType` is set to `'Impulse'`
or `'Waveform'` , then the Init subsystem calls to the
`serdes.CTLE` . The `serdes.CTLE` determines
the CTLE transfer function to maximize the performance metric as specified
by the `PerformanceCriteria` property and applies the
transfer function to the input waveform for time domain simulation. This
optimized transfer function is used by the CTLE for entire time domain
simulation. For more information about the Init subsystem, see Statistical Analysis in SerDes Systems |

If `WaveType` is selected as
`'Sample'` , then `serdes.CTLE` operates in
the fixed mode. |

**Data Types: **`double`

`SliceSelect`

— Select which corner of 3D GPZ matrix to use

`0`

(default) | nonegative scalar integer

Select which slice, family, or corner of a 3-D GPZ matrix to use during CTLE configuration.

You must set `Specification`

to `GPZ`

to
effectively use `SliceSelect`

. Depending on how many slices are
available in your GPZ matrix, you can then select the slice you are interested in from
a zero-based index.

You cannot use GPZ for a given slice and the peaking gain, DC gain, or AC gain for another slice.

**Data Types: **`double`

`ConfigSelect`

— Select which member of transfer function family to apply in fixed mode

`0`

(default) | real integer scalar

Select which member of the transfer function family to apply in fixed mode, specified as a real integer scalar.

**Example: **```
ctle = serdes.CTLE('ConfigSelect',5,'Specification','DC Gain and
Peaking Gain')
```

returns a CTLE object that selects the 6-th element of the
`DCGain`

and `PeakingGain`

vector to apply to the
filter transfer function.

**Data Types: **`double`

`Specification`

— Input specification for CTLE response

`'DC Gain and Peaking Gain'`

(default) | `'DC Gain and AC Gain'`

| `'AC Gain and Peaking Gain'`

| `'GPZ Matrix'`

Defines which inputs will be used for the CTLE transfer function family. There are
five inputs which can be used to define the CTLE transfer function family:
`DCGain`

, `PeakingGain`

,
`ACGain`

, `PeakingFrequency`

, and
`GPZ`

.

You can define the CTLE response from any two of the three gains and peaking frequency or you can define the GPZ matrix for the CTLE.

Select

`'DC Gain and Peaking Gain'`

to specify CTLE response from`DCGain`

,`PeakingGain`

, and`PeakingFrequency`

.`'DC Gain and AC Gain'`

to specify CTLE response from`DCGain`

,`ACGain`

, and`PeakingFrequency`

.`'AC Gain and Peaking Gain'`

to specify CTLE response from`ACGain`

,`PeakingGain`

, and`PeakingFrequency`

.`'GPZ Matrix'`

to specify CTLE response from`GPZ`

.

**Data Types: **`char`

`PeakingFrequency`

— Approximate frequency at which CTLE transfer function peaks

`5e9`

(default) | scalar | vector

Approximate frequency at which CTLE transfer function peaks in magnitude,
specified as a scalar or a vector in Hz. If specified as a scalar, it is converted to
match the length of `ACGain`

, `DCGain`

, and
`PeakingGain`

by scalar expansion. If specified as a vector, then
the vector length must be the same as the vectors in `ACGain`

,
`DCGain`

, and `PeakingGain`

.

**Data Types: **`double`

`DCGain`

— Gain at zero frequency

`[0 -1 -2 -3 -4 -5 -6 -7 -8]`

(default) | scalar | vector

Gain at zero frequency for the CTLE transfer function, specified as a scalar or a
vector in dB. If specified as a scalar, it is converted to match the length of
`PeakingFrequency`

, `ACGain`

, and
`PeakingGain`

by scalar expansion. If specified as a vector, then
the vector length must be the same as the vectors in
`PeakingFrequency`

, `ACGain`

, and
`PeakingGain`

.

**Data Types: **`double`

`PeakingGain`

— Difference between AC and DC gain

`[0 1 2 3 4 5 6 7 8]`

(default) | scalar | vector

Peaking gain, specified as a vector in dB. It is the difference between
`ACGain`

and `DCGain`

for the CTLE transfer
function. If specified as a scalar, it is converted to match the length of
`PeakingFrequency`

, `ACGain`

, and
`DCGain`

by scalar expansion. If specified as a vector, then the
vector length must be the same as the vectors in
`PeakingFrequency`

, `ACGain`

, and
`DCGain`

.

**Data Types: **`double`

`ACGain`

— Gain at the peaking frequency

`0`

| scalar | vector

Gain at the peaking frequency for the CTLE transfer function, specified as a
scalar or vector in dB. If specified as a scalar, it is converted to match the length
of `PeakingFrequency`

, `DCGain`

, and
`PeakingGain`

by scalar expansion. If specified as a vector, then
the vector length must be the same as the vectors in
`PeakingFrequency`

, `DCGain`

, and
`PeakingGain`

.

**Data Types: **`double`

`GPZ`

— Gain pole zero

matrix

Gain pole zero, specified as a matrix. `GPZ`

explicitly defines
the family of CTLE transfer functions by specifying the `DCGain`

(dB) in the first column and then poles and zeros in alternating columns. The poles
and zeros are specified in Hz. Use the argument `ConfigSelect`

with
zero-based index to select filters defined by rows of the GPZ matrix.

The `serdes.CTLE`

System object only allows repeated poles or zeros when the
`FilterMethod`

is set to `Cascaded`

. Complex
poles or zeros must have conjugates. The number of poles must be greater than number
of zeros for system stability. The System object ignores poles and zeros of 0 Hz and you can use them to zero-pad the
matrix.

You can define multiple slices of CTLE responses by using a 3-D GPZ matrix. You can concatenate and zero-pad two GPZ matrices to extend to the third dimension.

**Data Types: **`double`

**Complex Number Support: **Yes

### Advanced

`SymbolTime`

— Time of single symbol duration

`100e-12`

(default) | real scalar

Time of a single symbol duration, specified as a real scalar in s.

**Data Types: **`double`

`SampleInterval`

— Uniform time step of waveform

`6.25e-12`

(default) | real scalar

Uniform time step of the waveform, specified as a real scalar in s.

**Data Types: **`double`

`WaveType`

— Input wave type form

`'Sample'`

(default) | `'Impulse'`

| `'Waveform'`

Input wave type form:

`'Sample'`

— A sample-by-sample input signal.`'Impulse'`

— An impulse response input signal.`'Waveform'`

— A bit-pattern waveform type of input signal, such as pseudorandom binary sequence (PRBS).

**Data Types: **`char`

`PerformanceCriteria`

— Criterion used for CTLE optimization

`SNR`

(default) | `maxEyeHeight`

| `maxMeanEyeHeight`

| `maxCOM`

| `eyeAreas`

| `eyeWidth`

| `centerEyeHeight`

| `centerMeanEyeHeight`

| `centerCOM`

Criterion used for CTLE optimization when the `serdes.CTLE`

`Mode`

is set to adapt. The performance criteria is calculated
using the `optPulseMetric`

function.

**Data Types: **`char`

`OutputOptMetric`

— Output optimization metric value

off (default) | on

Output the optimization metric value.

`FilterMethod`

— Method to calculate time domain filter coefficients

`PartialFraction`

(default) | `Cascaded`

Method to calculate rational transfer function time domain filter coefficients:

`PartialFraction`

filter method uses a partial fraction expansion of the poles and zeros to directly calculate the filter coefficients. The`serdes.CTLE`

System object does not allow repeated poles or zeros when the`FilterMethod`

is set to`PartialFraction`

.`Cascaded`

filter method uses an approach that cascades together numerous shorter filters that collectively represent the specified behavior. This results in a more robust filter. The`serdes.CTLE`

System object only allows repeated poles or zeros when the`FilterMethod`

is set to`Cascaded`

.

## Usage

### Syntax

### Input Arguments

`x`

— Input baseband signal

scalar | vector

Input baseband signal. If the `WaveType`

is set to
`'Sample'`

, then the input signal is a sample-by-sample signal
specified as scalars. If the `WaveType`

is set to
`'Impulse'`

, then the input signal is an impulse response vector
signal.

### Output Arguments

`y`

— Equalized CTLE output

scalar | vector

Equalized CTLE output waveform. If the input signal is a sample-by-sample signal specified as scalars, then the output is also scalar. If the input signal is an impulse response vector signal, then the output is also a vector.

## Object Functions

To use an object function, specify the
System object as the first input argument. For
example, to release system resources of a System object named `obj`

, use
this syntax:

release(obj)

## Examples

### Impulse Response Processing Using CTLE

This example shows how to process the impulse response of a channel using `serdes.CTLE`

System object™.

Use a symbol time of `100`

ps and `16`

samples per symbol. The channel has `16`

dB loss. The peaking frequency is `11`

GHz.

SymbolTime = 100e-12; SamplesPerSymbol = 16; dbloss = 16; DCGain = 0:-1:-26; PeakingGain = 0:26; PeakingFrequency = 11e9;

Calculate the sample interval.

dt = SymbolTime/SamplesPerSymbol;

Create the CTLE object. The object adaptively applies the optimum transfer function for the best eye height opening to the input impulse response.

CTLE1 = serdes.CTLE('SymbolTime',SymbolTime,'SampleInterval',dt,... 'Mode',2,'WaveType','Impulse',... 'DCGain',DCGain,'PeakingGain',PeakingGain,... 'PeakingFrequency',PeakingFrequency);

Create the channel impulse response.

channel = serdes.ChannelLoss('Loss',dbloss,'dt',dt,... 'TargetFrequency',1/SymbolTime/2); impulseIn = channel.impulse;

Process the impulse response with CTLE.

[impulseOut, Config] = CTLE1(impulseIn);

Display the adapted configuration.

`fprintf('Adapted CTLE Configuration Selection is %g \n',Config)`

Adapted CTLE Configuration Selection is 17

Convert the impulse responses to pulse, waveform, and eye diagram.

ord = 6; dataPattern = prbs(ord,2^ord-1)-0.5; pulseIn = impulse2pulse(impulseIn,SamplesPerSymbol,dt); waveIn = pulse2wave(pulseIn,dataPattern,SamplesPerSymbol); eyeIn = reshape(waveIn,SamplesPerSymbol,[]); pulseOut = impulse2pulse(impulseOut,SamplesPerSymbol,dt); waveOut = pulse2wave(pulseOut,dataPattern,SamplesPerSymbol); eyeOut = reshape(waveOut,SamplesPerSymbol,[]);

Create the time vectors.

t = dt*(0:length(pulseOut)-1)/SymbolTime; teye = t(1:SamplesPerSymbol); t2 = dt*(0:length(waveOut)-1)/SymbolTime;

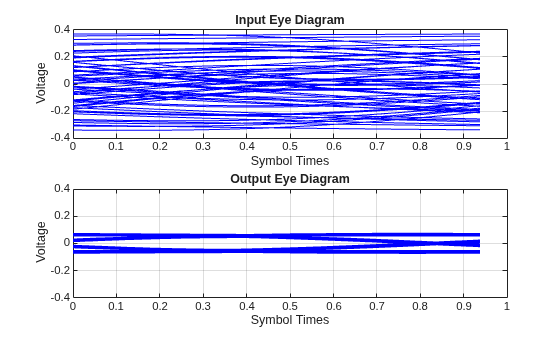

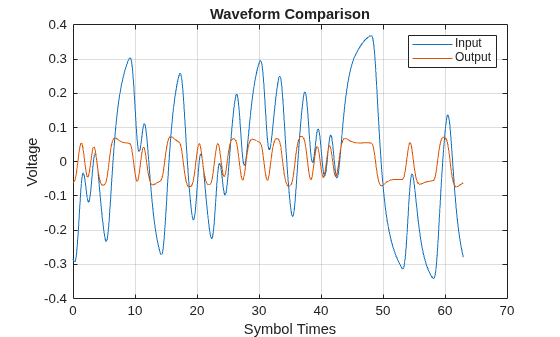

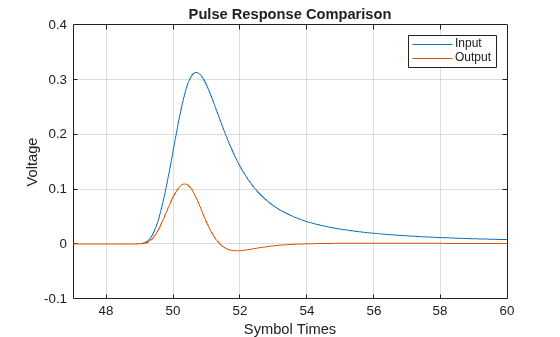

Plot pulse response comparison, waveform comparison, input, and output eye diagrams.

figure plot(t,pulseIn,t,pulseOut) legend('Input','Output') title('Pulse Response Comparison') xlabel('Symbol Times'),ylabel('Voltage') grid on axis([47 60 -0.1 0.4])

figure plot(t2,waveIn,t2,waveOut) legend('Input','Output') title('Waveform Comparison') xlabel('Symbol Times'),ylabel('Voltage') grid on

figure subplot(211),plot(teye,eyeIn,'b') ax = axis; xlabel('Symbol Times'),ylabel('Voltage') grid on title('Input Eye Diagram') subplot(212),plot(teye,eyeOut,'b') axis(ax); xlabel('Symbol Times'),ylabel('Voltage') grid on title('Output Eye Diagram')

### Sample-by-Sample Processing Using CTLE

This example shows how to process impulse response of a channel one sample at a time using `serdes.`

`CTLE`

System object™.

Use a symbol time of `100`

ps and `16`

samples per symbol. The channel has `16`

dB loss. The peaking frequency is `11`

` `

GHz. Select `12`

-th order pseudorandom binary sequence (PRBS), and simulate the first `500`

symbols.

SymbolTime = 100e-12; SamplesPerSymbol = 16; dbloss = 16; DCGain = 0:-1:-26; PeakingGain = 0:26; PeakingFrequency = 11e9; ConfigSelect = 15; prbsOrder = 12; M = 500;

Calculate the sample interval.

dt = SymbolTime/SamplesPerSymbol;

Create the CTLE object. Since we are processing the channel one sample at a time, the input waveform is `'`

`sample`

`'`

type. The object adaptively applies the optimum filter transfer function for the best eye height opening.

CTLE = serdes.CTLE('SymbolTime',SymbolTime,'SampleInterval',dt,... 'Mode',2,'WaveType','Sample',... 'DCGain',DCGain,'PeakingGain',PeakingGain,... 'PeakingFrequency',PeakingFrequency,... 'ConfigSelect',ConfigSelect);

Create the channel impulse response.

channel = serdes.ChannelLoss('Loss',dbloss,'dt',dt,... 'TargetFrequency',1/SymbolTime/2);

Initialize PRBS generator.

[dataBit,prbsSeed] = prbs(prbsOrder,1);

Loop through one symbol at a time.

inSymbol = zeros(SamplesPerSymbol,1); outWave = zeros(SamplesPerSymbol*M,1); for ii = 1:M % Get new symbol [dataBit,prbsSeed] = prbs(prbsOrder,1,prbsSeed); inSymbol(1:SamplesPerSymbol) = dataBit-0.5; % Convolve input waveform with channel y = channel(inSymbol); % Process one sample at a time through the CTLE for jj = 1:SamplesPerSymbol outWave((ii-1)*SamplesPerSymbol+jj) = CTLE(y(jj)); end end

After truncating the first 75 symbols to allow equalization, use the function reshape on the array of symbols to create the eye diagram.

```
foldedEye = reshape(outWave(75*SamplesPerSymbol+1:M*SamplesPerSymbol),SamplesPerSymbol,[]);
t = dt*(0:SamplesPerSymbol-1);
figure,plot(t,foldedEye,'b');
```

*Copyright 2019 The MathWorks, Inc. *

### Define CTLE from 3D GPZ Matrix

Create a GPZ matrix from a uniform number of poles and zeros.

G = [-3;-4;-5;-6]; P = [-15321428571 -13848214285;... -15600000000 -14100000000;... -15878571428 -14351785714;... -16157142857 -14603571428]; Z = [-5574642857;-4960100000;-4435821428;-3981285714]; gpz1 = serdes.CTLE.GainPoleZeroToGPZ(G,P,Z);

Create a second GPZ matrix from a varying number of poles.

G = [0;-1;-2]; P = {[-23771428571,-13092857142];... [-17603571428,-13344642857];... [-17935714285,-13596428571,-15321428571]}; Z = {-10492857142;-7914982142;-6845464285}; gpz2 = serdes.CTLE.GainPoleZeroToGPZ(G,P,Z);

Combine the two matrices into a 3D GPZ matrix.

gpz = serdes.CTLE.CombineSlices(gpz1,gpz2)

gpz = gpz(:,:,1) = 1.0e+10 * -0.0000 -1.5321 -0.5575 -1.3848 0 0 -0.0000 -1.5600 -0.4960 -1.4100 0 0 -0.0000 -1.5879 -0.4436 -1.4352 0 0 -0.0000 -1.6157 -0.3981 -1.4604 0 0 gpz(:,:,2) = 1.0e+10 * 0 -2.3771 -1.0493 -1.3093 0 0 -0.0000 -1.7604 -0.7915 -1.3345 0 0 -0.0000 -1.7936 -0.6845 -1.3596 0 -1.5321 0 0 0 0 0 0

Create a CTLE from the 3D GPZ matrix.

CTLE3D = serdes.CTLE('Specification','GPZ Matrix','GPZ',gpz,'FilterMethod','Cascaded')

CTLE3D = serdes.CTLE with properties: Main Mode: 2 Specification: 'GPZ Matrix' GPZ: [4x6x2 double] SliceSelect: 0 ConfigSelect: 0 Use get to show all properties

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

IBIS-AMI codegen is not supported in MAC.

## Version History

**Introduced in R2019a**

### R2023b: Slice Select

you can now select which slice, family, or corner of a 3-D GPZ matrix to use during CTLE configuration.

## See Also

AGC | `serdes.AGC`

| CTLE | DFECDR | serdes.DFECDR | SaturatingAmplifier | `optPulseMetric`

## Apri esempio

Si dispone di una versione modificata di questo esempio. Desideri aprire questo esempio con le tue modifiche?

## Comando MATLAB

Hai fatto clic su un collegamento che corrisponde a questo comando MATLAB:

Esegui il comando inserendolo nella finestra di comando MATLAB. I browser web non supportano i comandi MATLAB.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
