# kaiser

## Syntax

``w = kaiser(L,beta)``

## Description

example

````w = kaiser(L,beta)` returns an `L`-point Kaiser window with shape factor `beta`.```

## Examples

collapse all

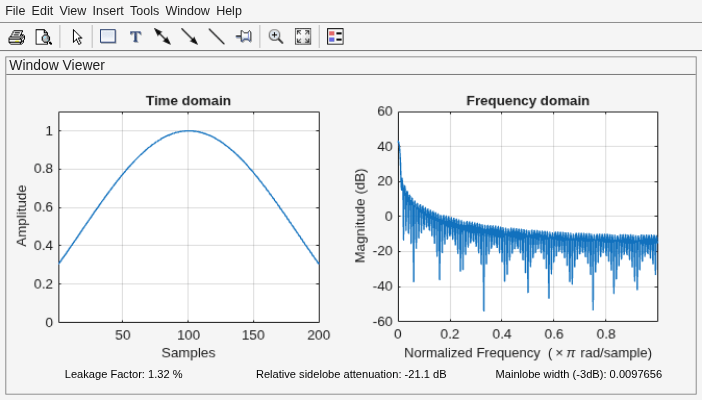

Create a 200-point Kaiser window with a beta of 2.5. Display the result using `wvtool`.

```w = kaiser(200,2.5); wvtool(w)```

## Input Arguments

collapse all

Window length, specified as a positive integer.

Data Types: `single` | `double`

Shape factor, specified as a positive real scalar. The parameter `beta` affects the sidelobe attenuation of the Fourier transform of the window.

Data Types: `single` | `double`

## Output Arguments

collapse all

Kaiser window, returned as a column vector.

## Algorithms

The coefficients of a Kaiser window are computed from the following equation:

`$w\left(n\right)=\frac{{I}_{0}\left(\beta \sqrt{1-{\left(\frac{n-N/2}{N/2}\right)}^{2}}\right)}{{I}_{0}\left(\beta \right)},\text{ }0\le n\le N,$`

where I0 is the zeroth-order modified Bessel function of the first kind. The length L = N + 1. `kaiser(L,beta)` is equivalent to

`besseli(0,beta*sqrt(1-(((0:L-1)-(L-1)/2)/((L-1)/2)).^2))/besseli(0,beta)`

To obtain a Kaiser window that represents an FIR filter with sidelobe attenuation of α dB, use the following β.

`$\beta =\left\{\begin{array}{ll}0.1102\left(\alpha -8.7\right),\hfill & \alpha >50\hfill \\ 0.5842{\left(\alpha -21\right)}^{0.4}+0.07886\left(\alpha -21\right),\hfill & 50\ge \alpha \ge 21\hfill \\ 0,\hfill & \alpha <21\hfill \end{array}$`

Increasing β widens the mainlobe and decreases the amplitude of the sidelobes (i.e., increases the attenuation).

## References

[1] Digital Signal Processing Committee of the IEEE Acoustics, Speech, and Signal Processing Society, eds. Selected Papers in Digital Signal Processing. Vol. II. New York: IEEE Press, 1976.

[2] Kaiser, James F. "Nonrecursive Digital Filter Design Using the I0-Sinh Window Function." Proceedings of the 1974 IEEE® International Symposium on Circuits and Systems. April, 1974, pp. 20–23.

[3] Oppenheim, Alan V., Ronald W. Schafer, and John R. Buck. Discrete-Time Signal Processing. Upper Saddle River, NJ: Prentice Hall, 1999.

## Extended Capabilities

### Functions

Introduced before R2006a
