Stochastic Simulation of Radioactive Decay

This example shows how to build and simulate a model using the SSA stochastic solver.

The following model will be constructed and stochastically simulated:

  • Reaction 1: x -> z with a first-order reaction rate, c = 0.5.

  • Initial conditions: x = 1000 molecules, z = 0.

This model can also be used to represent irreversible isomerization.

This example uses parameters and conditions as described in Daniel T. Gillespie, 1977, "Exact Stochastic Simulation of Coupled Chemical Reactions," The Journal of Physical Chemistry, vol. 81, no. 25, pp. 2340-2361.

Read the Radioactive Decay Model Saved in SBML Format

model  = sbmlimport('radiodecay.xml')
model =
   SimBiology Model - RadioactiveDecay

   Model Components:
     Compartments:      1
     Events:            0
     Parameters:        1
     Reactions:         1
     Rules:             0
     Species:           2
     Observables:       0

View Species Objects of the Model

ans =
   SimBiology Species Array

   Index:    Compartment:    Name:    Value:    Units:
   1         unnamed         x        1000      molecule
   2         unnamed         z        0         molecule

View Reaction Objects of the Model

ans =
   SimBiology Reaction Array

   Index:    Reaction:
   1         x -> z

View Parameter Objects for the Kinetic Law

ans =
   SimBiology Parameter Array

   Index:    Name:    Value:    Units:
   1         c        0.5       1/second

Update the Reaction to use MassAction Kinetic Law for Stochastic Solvers.

model.Reactions(1).KineticLaw(1).KineticLawName = 'MassAction';
model.Reactions(1).KineticLaw(1).ParameterVariableNames = {'c'};

Simulate the Model Using the Stochastic (SSA) Solver & Plot

cs = getconfigset(model,'active');
cs.SolverType = 'ssa';
cs.StopTime = 14.0;
cs.CompileOptions.DimensionalAnalysis = false;
[t,X] = sbiosimulate(model);

legend('x', 'z', 'AutoUpdate', 'off');
title('Stochastic Radioactive Decay Simulation');
ylabel('Number of molecules');
xlabel('Time (seconds)');

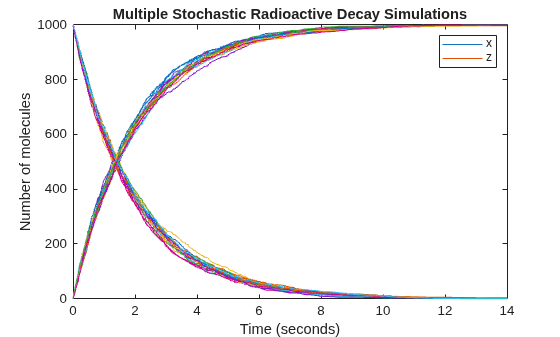

Repeat the Simulation to Show Run-to-Run Variability

title('Multiple Stochastic Radioactive Decay Simulations');
hold on;
for loop = 1:20
    [t,X] = sbiosimulate(model);
    plot(t,X);    % Just plot number of reactant molecules

Overlay the Reaction's ODE Solution in Red

cs = getconfigset(model,'active');
cs.SolverType = 'sundials';
cs.StopTime = 20;
[t,X] = sbiosimulate(model);
hold off;
